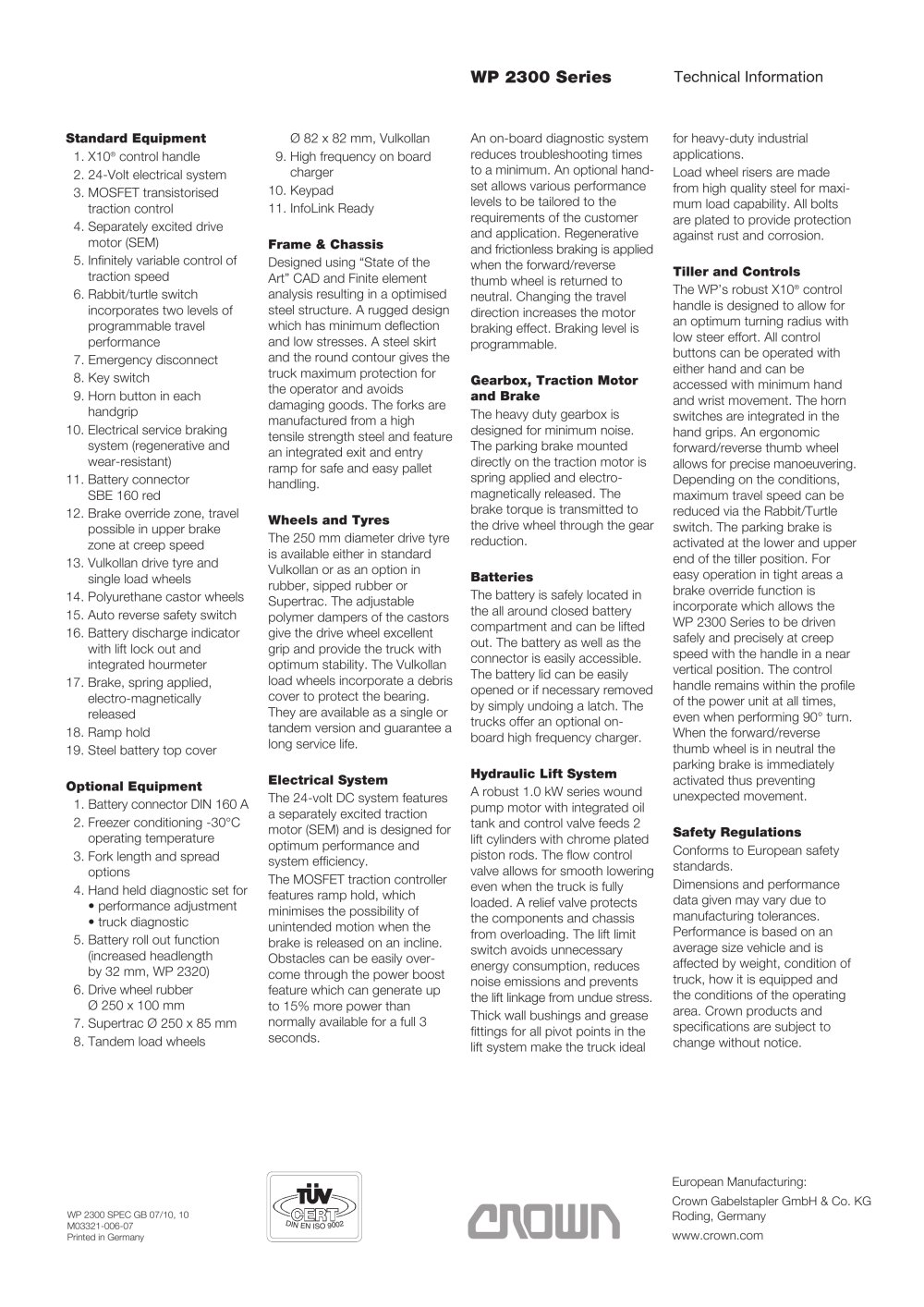

Standard Equipment 1. X10® control handle 2. 24-Volt electrical system 3. MOSFET transistorised traction control 4. Separately excited drive motor (SEM) 5. Infinitely variable control of traction speed 6. Rabbit/turtle switch incorporates two levels of programmable travel performance 7. Emergency disconnect 8. Key switch 9. Horn button in each handgrip 10. Electrical service braking system (regenerative and wear-resistant) 11. Battery connector SBE 160 red 12. Brake override zone, travel possible in upper brake zone at creep speed 13. Vulkollan drive tyre and single load wheels 14. Polyurethane castor wheels 15. Auto reverse safety switch 16. Battery discharge indicator with lift lock out and integrated hourmeter 17. Brake, spring applied, electro-magnetically released 18. Ramp hold 19. Steel battery top cover Optional Equipment 1. Battery connector DIN 160 A 2. Freezer conditioning -30°C operating temperature 3. Fork length and spread options 4. Hand held diagnostic set for • performance adjustment • truck diagnostic 5. Battery roll out function (increased headlength by 32 mm, WP 2320) 6. Drive wheel rubber Ø 250 x 100 mm 7. Supertrac Ø 250 x 85 mm 8. Tandem load wheels Ø 82 x 82 mm, Vulkollan 9. High frequency on board charger 10. Keypad 11. InfoLink Ready Frame & Chassis Designed using “State of the Art” CAD and Finite element analysis resulting in a optimised steel structure. A rugged design which has minimum deflection and low stresses. A steel skirt and the round contour gives the truck maximum protection for the operator and avoids damaging goods. The forks are manufactured from a high tensile strength steel and feature an integrated exit and entry ramp for safe and easy pallet handling. Wheels and Tyres The 250 mm diameter drive tyre is available either in standard Vulkollan or as an option in rubber, sipped rubber or Supertrac. The adjustable polymer dampers of the castors give the drive wheel excellent grip and provide the truck with optimum stability. The Vulkollan load wheels incorporate a debris cover to protect the bearing. They are available as a single or tandem version and guarantee a long service life. Electrical System The 24-volt DC system features a separately excited traction motor (SEM) and is designed for optimum performance and system efficiency. The MOSFET traction controller features ramp hold, which minimises the possibility of unintended motion when the brake is released on an incline. Obstacles can be easily overcome through the power boost feature which can generate up to 15% more power than normally available for a full 3 seconds. An on-board diagnostic system reduces troubleshooting times to a minimum. An optional handset allows various performance levels to be tailored to the requirements of the customer and application. Regenerative and frictionless braking is applied when the forward/reverse thumb wheel is returned to neutral. Changing the travel direction increases the motor braking effect. Braking level is programmable. Gearbox, Traction Motor and Brake The heavy duty gearbox is designed for minimum noise. The parking brake mounted directly on the traction motor is spring applied and electromagnetically released. The brake torque is transmitted to the drive wheel through the gear reduction. Batteries The battery is safely located in the all around closed battery compartment and can be lifted out. The battery as well as the connector is easily accessible. The battery lid can be easily opened or if necessary removed by simply undoing a latch. The trucks offer an optional onboard high frequency charger. Hydraulic Lift System A robust 1.0 kW series wound pump motor with integrated oil tank and control valve feeds 2 lift cylinders with chrome plated piston rods. The flow control valve allows for smooth lowering even when the truck is fully loaded. A relief valve protects the components and chassis from overloading. The lift limit switch avoids unnecessary energy consumption, reduces noise emissions and prevents the lift linkage from undue stress. Thick wall bushings and grease fittings for all pivot points in the lift system make the truck ideal for heavy-duty industrial applications. Load wheel risers are made from high quality steel for maximum load capability. All bolts are plated to provide protection against rust and corrosion. Tiller and Controls The WP’s robust X10® control handle is designed to allow for an optimum turning radius with low steer effort. All control buttons can be operated with either hand and can be accessed with minimum hand and wrist movement. The horn switches are integrated in the hand grips. An ergonomic forward/reverse thumb wheel allows for precise manoeuvering. Depending on the conditions, maximum travel speed can be reduced via the Rabbit/Turtle switch. The parking brake is activated at the lower and upper end of the tiller position. For easy operation in tight areas a brake override function is incorporate which allows the WP 2300 Series to be driven safely and precisely at creep speed with the handle in a near vertical position. The control handle remains within the profile of the power unit at all times, even when performing 90° turn. When the forward/reverse thumb wheel is in neutral the parking brake is immediately activated thus preventing unexpected movement. Safety Regulations Conforms to European safety standards. Dimensions and performance data given may vary due to manufacturing tolerances. Performance is based on an average size vehicle and is affected by weight, condition of truck, how it is equipped and the conditions of the operating area. Crown products and specifications are subject to change without notice. European Manufacturing: Crown Gabelstapler GmbH & Co. KG Roding, Germany www.crown.com WP 2300 SPEC GB 07/10, 10 M03321-006-07 Printed in Germany DIN EN ISO 9002 WP 2300 Series Technical Information C
