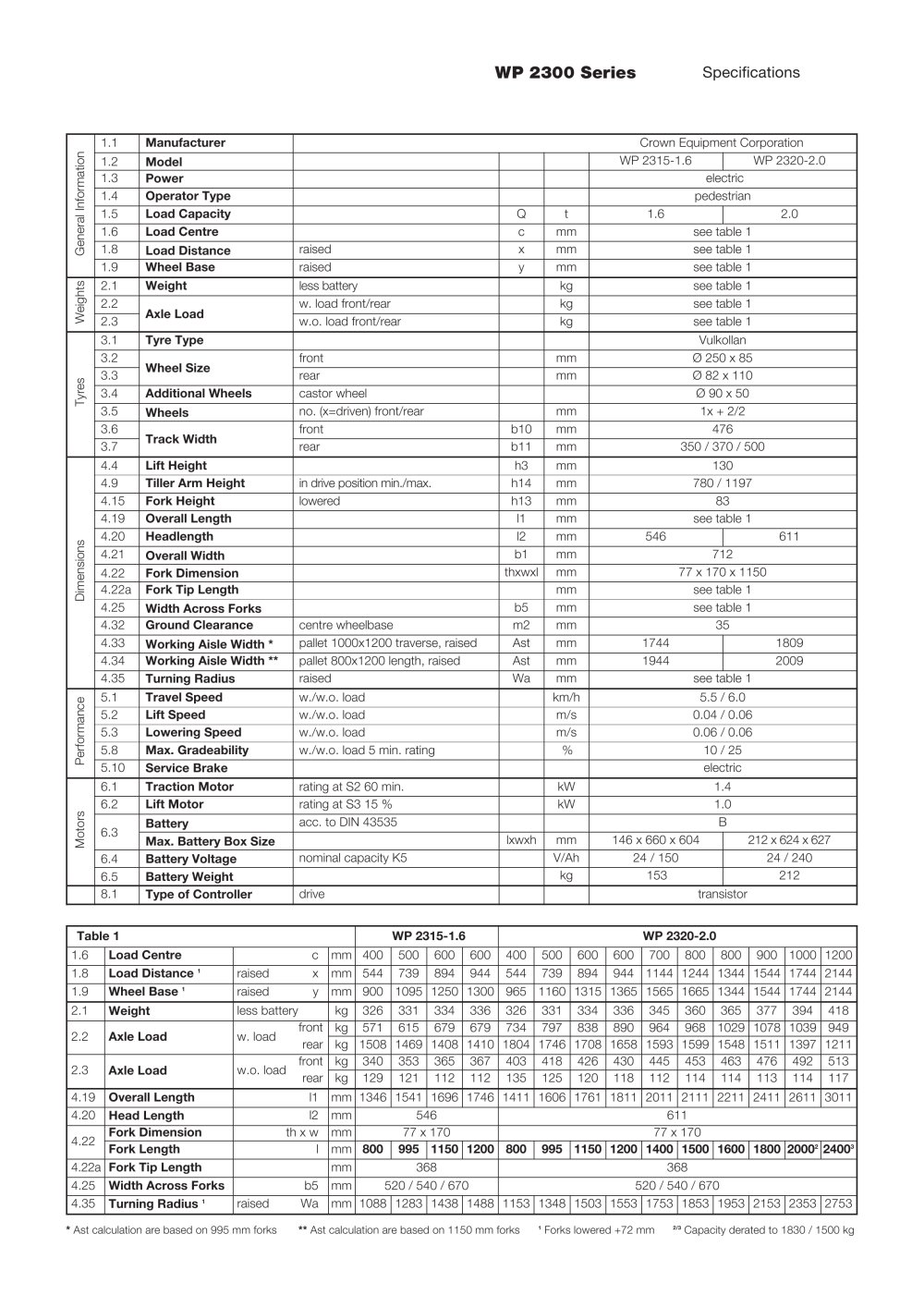

WP 2300 Series Specifications General Information 1.1 Manufacturer Crown Equipment Corporation 1.2 Model WP 2315-1.6 WP 2320-2.0 1.3 Power electric 1.4 Operator Type pedestrian 1.5 Load Capacity Q t 1.6 2.0 1.6 Load Centre c mm see table 1 1.8 Load Distance raised x mm see table 1 1.9 Wheel Base raised y mm see table 1 Weights 2.1 Weight less battery kg see table 1 2.2 Axle Load w. load front/rear kg see table 1 2.3 w.o. load front/rear kg see table 1 Tyres 3.1 Tyre Type Vulkollan 3.2 Wheel Size front mm Ø 250 x 85 3.3 rear mm Ø 82 x 110 3.4 Additional Wheels castor wheel Ø 90 x 50 3.5 Wheels no. (x=driven) front/rear mm 1x + 2/2 3.6 Track Width front b10 mm 476 3.7 rear b11 mm 350 / 370 / 500 Dimensions 4.4 Lift Height h3 mm 130 4.9 Tiller Arm Height in drive position min./max. h14 mm 780 / 1197 4.15 Fork Height lowered h13 mm 83 4.19 Overall Length l1 mm see table 1 4.20 Headlength l2 mm 546 611 4.21 Overall Width b1 mm 712 4.22 Fork Dimension thxwxl mm 77 x 170 x 1150 4.22a Fork Tip Length mm see table 1 4.25 Width Across Forks b5 mm see table 1 4.32 Ground Clearance centre wheelbase m2 mm 35 4.33 Working Aisle Width * pallet 1000x1200 traverse, raised Ast mm 1744 1809 4.34 Working Aisle Width ** pallet 800x1200 length, raised Ast mm 1944 2009 4.35 Turning Radius raised Wa mm see table 1 Performance 5.1 Travel Speed w./w.o. load km/h 5.5 / 6.0 5.2 Lift Speed w./w.o. load m/s 0.04 / 0.06 5.3 Lowering Speed w./w.o. load m/s 0.06 / 0.06 5.8 Max. Gradeability w./w.o. load 5 min. rating % 10 / 25 5.10 Service Brake electric Motors 6.1 Traction Motor rating at S2 60 min. kW 1.4 6.2 Lift Motor rating at S3 15 % kW 1.0 6.3 Battery acc. to DIN 43535 B Max. Battery Box Size lxwxh mm 146 x 660 x 604 212 x 624 x 627 6.4 Battery Voltage nominal capacity K5 V/Ah 24 / 150 24 / 240 6.5 Battery Weight kg 153 212 8.1 Type of Controller drive transistor Table 1 WP 2315-1.6 WP 2320-2.0 1.6 Load Centre c mm 400 500 600 600 400 500 600 600 700 800 800 900 1000 1200 1.8 Load Distance 1 raised x mm 544 739 894 944 544 739 894 944 1144 1244 1344 1544 1744 2144 1.9 Wheel Base 1 raised y mm 900 1095 1250 1300 965 1160 1315 1365 1565 1665 1344 1544 1744 2144 2.1 Weight less battery kg 326 331 334 336 326 331 334 336 345 360 365 377 394 418 2.2 Axle Load w. load kg 571 615 679 679 734 797 838 890 964 968 1029 1078 1039 949 kg 1508 1469 1408 1410 1804 1746 1708 1658 1593 1599 1548 1511 1397 1211 2.3 Axle Load w.o. load kg 340 353 365 367 403 418 426 430 445 453 463 476 492 513 kg 129 121 112 112 135 125 120 118 112 114 114 113 114 117 4.19 Overall Length l1 mm 1346 1541 1696 1746 1411 1606 1761 1811 2011 2111 2211 2411 2611 3011 4.20 Head Length l2 mm 546 611 4.22 Fork Dimension th x w mm 77 x 170 77 x 170 Fork Length l mm 800 995 1150 1200 800 995 1150 1200 1400 1500 1600 1800 20002 24003 4.22a Fork Tip Length mm 368 368 4.25 Width Across Forks b5 mm 520 / 540 / 670 520 / 540 / 670 4.35 Turning Radius 1 raised Wa mm 1088 1283 1438 1488 1153 1348 1503 1553 1753 1853 1953 2153 2353 2753 front rear front rear * Ast calculation are based on 995 mm forks ** Ast calculation are based on 1150 mm forks 1 Forks lowered +72 mm 2/3 Capacity derated to 1830 / 1500 kg
