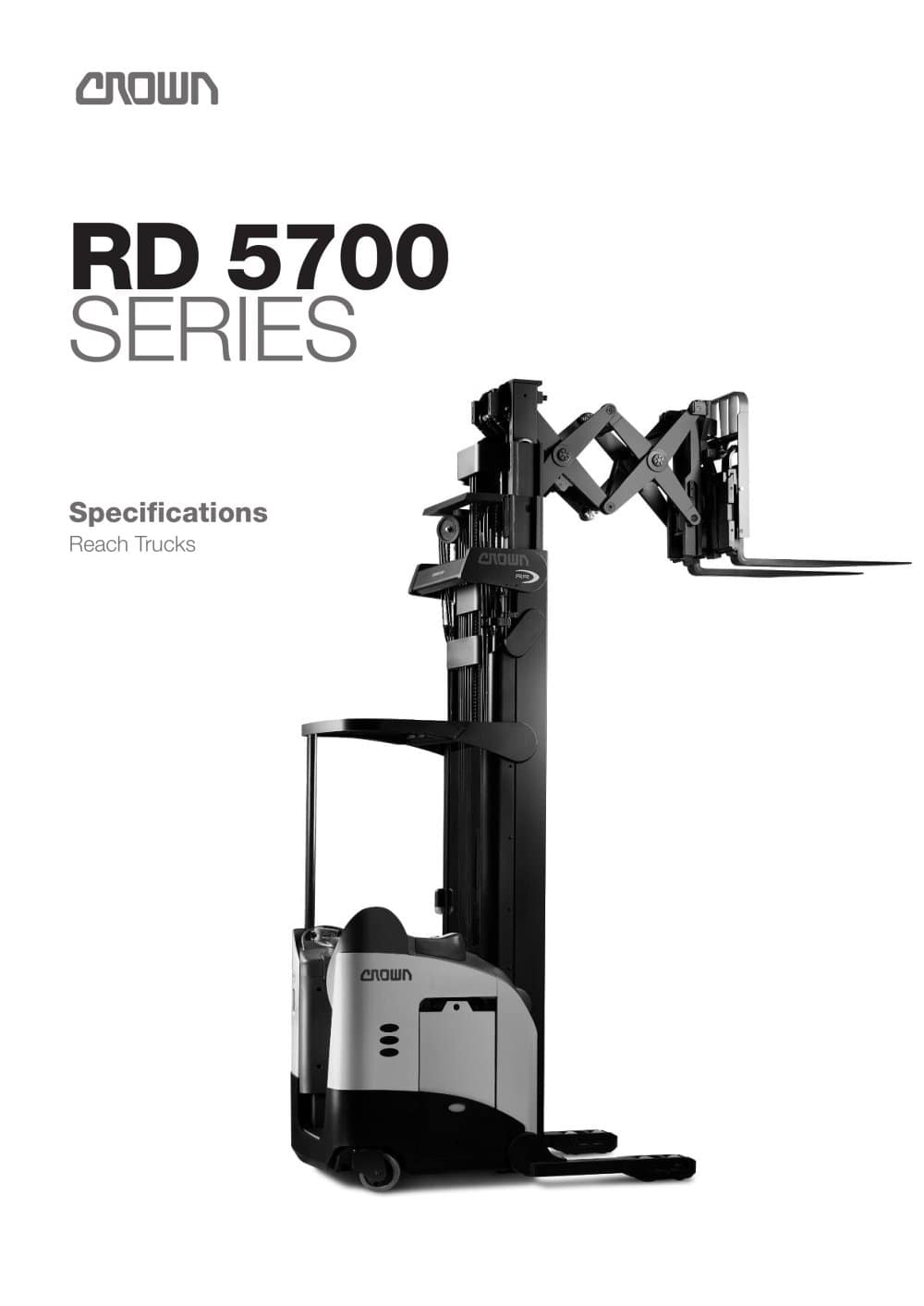

RD 5700 SERIES Specifications Reach Trucks

Reach Trucks 205 w/side shift 305 w/o side shift 108 4.73 RD 5725: 45 Standard third post 104 Optional Drive-in rack third post RD 5795S: 53 Standard third post 685 w/side shift 762 w/o side shift 1353 max. 217 w/side shift 266 w/o side shift * top tie bar width – 840 for 6095 or 6855 lift height, 890 for 7620 and above ** 25 on lift heights above 8150 *** Height reduces from 180 mm with tyre wear

* Contact factory. Capacity may be subject to derating at height '* Above h3 = 8150 standard wheel is 0 152 mm

collapsed height Free Lift w. standard 915 mm load backrest Lift Height extended height w. load backrest overhead guard width across outriggers Truck Weight less battery compartment size collapsed height Free Lift Lift Height extended height w. load backrest overhead guard width across outriggers Truck Weight less battery Wheel base Turning Radius Overall Length Å Applies to 11225 mm lift height, extended chassis • Add 50 mm with optional sideshift

Capacity Model RD 5725-1.45: 1450 kg at 600 mm load center 36 volt Model RD 5795S-1.45: 1450 kg at 600 mm load center 36 volt Batteries Battery removal from left or right side of truck. Standard battery compartment rollers for extraction with mechanised equipment. Standard Equipment 1. Crown’s Access 1 2 3® Comprehensive System Control 2. 36 volt system 3. AC Traction System 4. OnTrac™ Anti-Slip Traction Control 5. AC Hydraulic System 6. Electronic power steering 7. Operator Compartment • Variable side stance • Flexible five-point positioning • Back support with integral hip support • Arm/elbow...

The S Class model offers a superior level of flexibility for the operator with an adjustable suspended seat, lean seat, backrest, armrest, control handle and steer tiller. The combination of these features lets the operator move from a standing, leaning or seated driver position. By changing postures and using different sets of muscles, significant ergonomic, physiological and orthopedic benefits may result. Crown’s Access 1 2 3® Comprehensive System Control provides optimum performance and control by offering a communication interface for operators and technicians, intelligent coordination of...
