Timing Belts - Cross & Morse - #19

Text version of the page

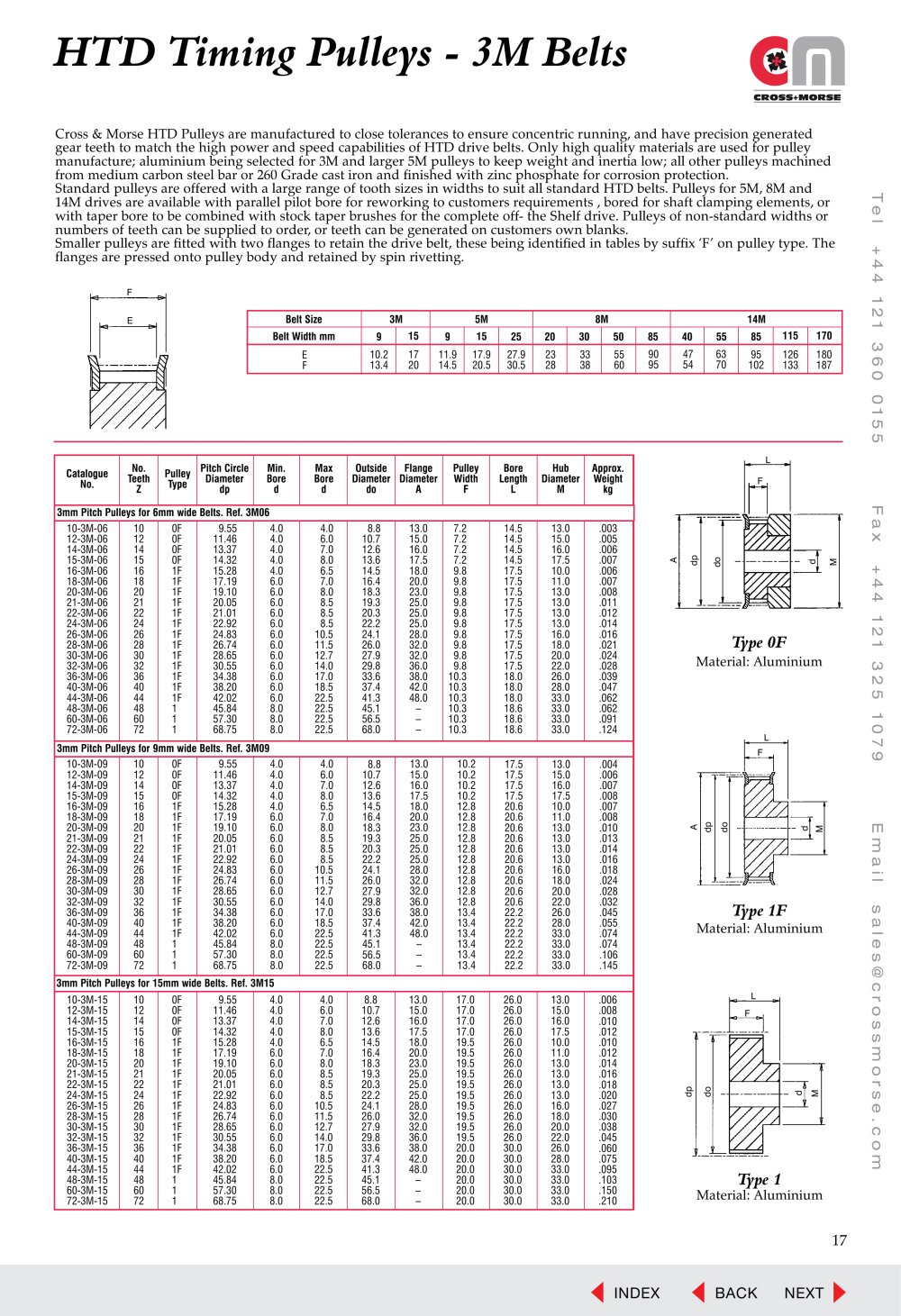

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Lucida Sans Unicode", sans-serif; } .font1 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:10.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:7.00pt "Palatino Linotype", serif; } .font7 { font:8.00pt "Palatino Linotype", serif; } .font8 { font:9.00pt "Palatino Linotype", serif; } .font9 { font:10.00pt "Palatino Linotype", serif; } .font10 { font:25.00pt "Palatino Linotype", serif; } .font11 { font:8.00pt "Trebuchet MS", sans-serif; } .font12 { font:10.00pt "Trebuchet MS", sans-serif; } HTD Timing Pulleys - 3M Belts Cross & Morse HTD Pulleys are manufactured to close tolérances to ensure concentric running, and have précision generated gear teeth to match the high power and speed capabilities of HTD drive belts. Only high quality materials are used for pulley manufacture; aluminium being selected for 3M and larger 5M pulleys to keep weight and inertia low; all other pulleys machined from medium carbon steel bar or 260 Grade cast iron and finished with zinc phosphate for corrosion protection. Standard pulleys are offered with a large range of tooth sizes in widths to suit all standard HTD belts. Pulleys for 5M, 8M and 14M drives are available with parallel pilot bore for reworking to customers requirements , bored for shaft clamping elements, or with taper bore to be combined with stock taper brushes for the complete off- the Shelf drive. Pulleys of non-standard widths or numbers of teeth can be supplied to order, or teeth can be generated on customers own blanks. Smaller pulleys are fitted with two flanges to retain the drive belt, these being identified in tables by suffix 'F' on pulley type. The flanges are pressed onto pulley body and retained by spin rivetting. Belt Size 3M 5M 8M 14M Belt Width mm 9 15 9 15 25 20 30 50 85 40 55 85 115 170 E 10.2 17 11.9 17.9 27.9 23 33 55 90 47 63 95 126 180 F 13.4 20 14.5 20.5 30.5 28 38 60 95 54 70 102 133 187 0) o o 5 5 Catalogue No. No. Pulley Type Pitch Circle Min. Max Outside Flange Pulley Bore Hub Approx. Teeth Z Diameter dp Bore d Bore d Diameter do Diameter A Width F Length Diameter M Weight kg 3mm Pitch Pulleys for 6mm wide Belts. Ref. 3M06 10-3M-06 10 0F 9.55 4.0 4.0 8.8 13.0 7.2 14.5 13.0 .003 12-3M-06 12 0F 11.46 4.0 6.0 10.7 15.0 7.2 14.5 15.0 .005 14-3M-06 14 0F 13.37 4.0 7.0 12.6 16.0 7.2 14.5 16.0 .006 15-3M-06 15 0F 14.32 4.0 8.0 13.6 17.5 7.2 14.5 17.5 .007 16-3M-06 16 15.28 4.0 6.5 14.5 18.0 9.8 17.5 10.0 .006 18-3M-06 18 17.19 6.0 7.0 16.4 20.0 9.8 17.5 11.0 .007 20-3M-06 20 19.10 6.0 8.0 18.3 23.0 9.8 17.5 13.0 .008 21-3M-06 21 20.05 6.0 8.5 19.3 25.0 9.8 17.5 13.0 .011 22-3M-06 22 21.01 6.0 8.5 20.3 25.0 9.8 17.5 13.0 .012 24-3M-06 24 22.92 6.0 8.5 22.2 25.0 9.8 17.5 13.0 .014 26-3M-06 26 24.83 6.0 10.5 24.1 28.0 9.8 17.5 16.0 .016 28-3M-06 28 26.74 6.0 11.5 26.0 32.0 9.8 17.5 18.0 .021 30-3M-06 30 28.65 6.0 12.7 27.9 32.0 9.8 17.5 20.0 .024 32-3M-06 32 30.55 6.0 14.0 29.8 36.0 9.8 17.5 22.0 .028 36-3M-06 36 34.38 6.0 17.0 33.6 38.0 10.3 18.0 26.0 .039 40-3M-06 40 38.20 6.0 18.5 37.4 42.0 10.3 18.0 28.0 .047 44-3M-06 44 42.02 6.0 22.5 41.3 48.0 10.3 18.0 33.0 .062 48-3M-06 48 45.84 8.0 22.5 45.1 10.3 18.6 33.0 .062 60-3M-06 60 57.30 8.0 22.5 56.5 10.3 18.6 33.0 .091 72-3M-06 72 68.75 8.0 22.5 68.0 10.3 18.6 33.0 .124 3mm Pitch Pulleys for 9mm wide Belts. Ref. 3M09 10-3M-09 10 0F 9.55 4.0 4.0 8.8 ' 10.2 17.5 13.0 .004 12-3M-09 12 0F 11.46 4.0 6.0 10.7 15.0 10.2 17.5 15.0 .006 14-3M-09 14 0F 13.37 4.0 7.0 12.6 16.0 10.2 17.5 16.0 .007 15-3M-09 15 0F 14.32 4.0 8.0 13.6 17.5 10.2 17.5 17.5 .008 16-3M-09 16 15.28 4.0 6.5 14.5 18.0 12.8 20.6 10.0 .007 18-3M-09 18 17.19 6.0 7.0 16.4 20.0 12.8 20.6 11.0 .008 20-3M-09 20 19.10 6.0 8.0 18.3 23.0 12.8 20.6 13.0 .010 21-3M-09 21 20.05 6.0 8.5 19.3 25.0 12.8 20.6 13.0 .013 22-3M-09 22 21.01 6.0 8.5 20.3 25.0 12.8 20.6 13.0 .014 24-3M-09 24 22.92 6.0 8.5 22.2 25.0 12.8 20.6 13.0 .016 26-3M-09 26 24.83 6.0 10.5 24.1 28.0 12.8 20.6 16.0 .018 28-3M-09 28 26.74 6.0 11.5 26.0 32.0 12.8 20.6 18.0 .024 30-3M-09 30 28.65 6.0 12.7 27.9 32.0 12.8 20.6 20.0 .028 32-3M-09 32 30.55 6.0 14.0 29.8 36.0 12.8 20.6 22.0 .032 36-3M-09 36 34.38 6.0 17.0 33.6 38.0 13.4 22.2 26.0 .045 40-3M-09 40 38.20 6.0 18.5 37.4 42.0 13.4 22.2 28.0 .055 44-3M-09 44 42.02 6.0 22.5 41.3 48.0 13.4 22.2 33.0 .074 48-3M-09 48 45.84 8.0 22.5 45.1 - 13.4 22.2 33.0 .074 60-3M-09 60 57.30 8.0 22.5 56.5 - 13.4 22.2 33.0 .106 72-3M-09 72 68.75 8.0 22.5 68.0 - 13.4 22.2 33.0 .145 3mm Pitch Pulleys for 15mm wide Belts. Ref. 3M15 10-3M-15 10 0F 9.55 4.0 4.0 8.8 13.0 17.0 26.0 13.0 .006 12-3M-15 12 0F 11.46 4.0 6.0 10.7 15.0 17.0 26.0 15.0 .008 14-3M-15 14 0F 13.37 4.0 7.0 12.6 16.0 17.0 26.0 16.0 .010 15-3M-15 15 0F 14.32 4.0 8.0 13.6 17.5 17.0 26.0 17.5 .012 16-3M-15 16 15.28 4.0 6.5 14.5 18.0 19.5 26.0 10.0 .010 18-3M-15 18 17.19 6.0 7.0 16.4 20.0 19.5 26.0 11.0 .012 20-3M-15 20 19.10 6.0 8.0 18.3 23.0 19.5 26.0 13.0 .014 21-3M-15 21 20.05 6.0 8.5 19.3 25.0 19.5 26.0 13.0 .016 22-3M-15 22 21.01 6.0 8.5 20.3 25.0 19.5 26.0 13.0 .018 24-3M-15 24 22.92 6.0 8.5 22.2 25.0 19.5 26.0 13.0 .020 26-3M-15 26 24.83 6.0 10.5 24.1 28.0 19.5 26.0 16.0 .027 28-3M-15 28 26.74 6.0 11.5 26.0 32.0 19.5 26.0 18.0 .030 30-3M-15 30 28.65 6.0 12.7 27.9 32.0 19.5 26.0 20.0 .038 32-3M-15 32 30.55 6.0 14.0 29.8 36.0 19.5 26.0 22.0 .045 36-3M-15 36 34.38 6.0 17.0 33.6 38.0 20.0 30.0 26.0 .060 40-3M-15 40 38.20 6.0 18.5 37.4 42.0 20.0 30.0 28.0 .075 44-3M-15 44 42.02 6.0 22.5 41.3 48.0 20.0 30.0 33.0 .095 48-3M-15 48 45.84 8.0 22.5 45.1 - 20.0 30.0 33.0 .103 60-3M-15 60 57.30 8.0 22.5 56.5 - 20.0 30.0 33.0 .150 72-3M-15 72 68.75 8.0 22.5 68.0 - 20.0 30.0 33.0 .210 + 4 Type 0F Material: Aluminium to 2 m 3 a s Type 1F Material: Aluminium en CL T5 n o en en 3 o en o O Type 1 Material: Aluminium 17
