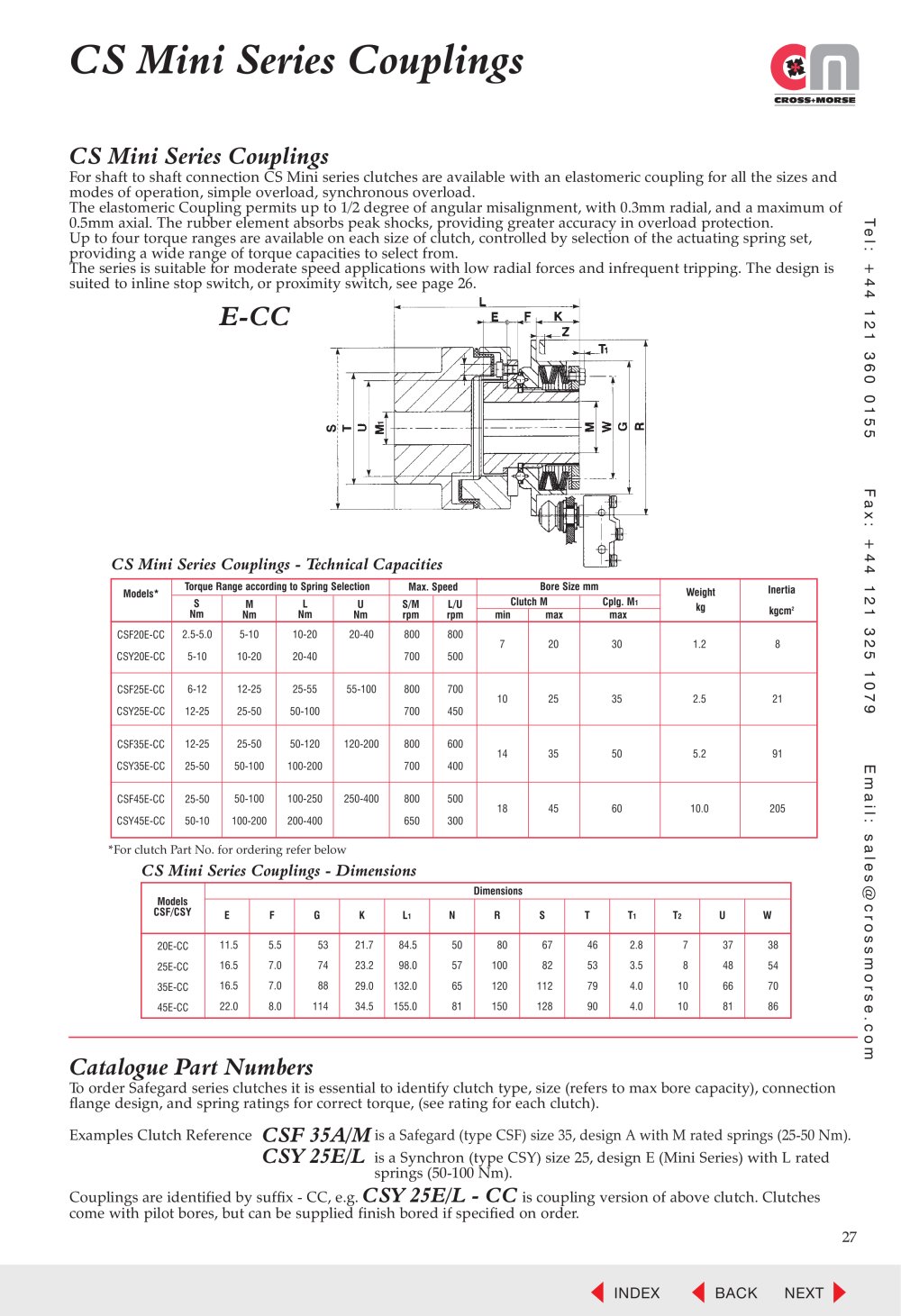

M Nm 27 CS Mini Series Couplings CS Mini Series Couplings For shaft to shaft connection CS Mini series clutches are available with an elastomeric coupling for all the sizes and modes of operation, simple overload, synchronous overload. The elastomeric Coupling permits up to 1/2 degree of angular misalignment, with 0.3mm radial, and a maximum of 0.5mm axial. The rubber element absorbs peak shocks, providing greater accuracy in overload protection. Up to four torque ranges are available on each size of clutch, controlled by selection of the actuating spring set, providing a wide range of torque capacities to select from. The series is suitable for moderate speed applications with low radial forces and infrequent tripping. The design is suited to inline stop switch, or proximity switch, see page 26. Catalogue Part Numbers To order Safegard series clutches it is essential to identify clutch type, size (refers to max bore capacity), connection flange design, and spring ratings for correct torque, (see rating for each clutch). Examples Clutch Reference is a Safegard (type CSF) size 35, design A with M rated springs (25-50 Nm). is a Synchron (type CSY) size 25, design E (Mini Series) with L rated springs (50-100 Nm). Couplings are identified by suffix - CC, e.g. CSY 25E/L - CC is coupling version of above clutch. Clutches come with pilot bores, but can be supplied finish bored if specified on order. Models CSF/CSY Dimensions E F G K L1 N R S T T1 T2 U W CS Mini Series Couplings - Dimensions E-CC *For clutch Part No. for ordering refer below CS Mini Series Couplings - Technical Capacities Models* Torque Range according to Spring Selection S Nm L Nm U Nm S/M rpm L/U rpm min max max Max. Speed Bore Size mm Clutch M Cplg. M1 Weight kg Inertia kgcm2 CSF20E-CC CSY20E-CC CSF25E-CC CSY25E-CC CSF35E-CC CSY35E-CC CSF45E-CC CSY45E-CC 2.5-5.0 5-10 6-12 12-25 12-25 25-50 25-50 50-10 5-10 10-20 12-25 25-50 25-50 50-100 50-100 100-200 10-20 20-40 25-55 50-100 50-120 100-200 100-250 200-400 20-40 55-100 120-200 250-400 800 700 800 700 800 700 800 650 800 500 700 450 600 400 500 300 7 10 14 18 20 25 35 45 30 35 50 60 1.2 2.5 5.2 10.0 8 21 91 205 20E-CC 25E-CC 35E-CC 45E-CC 11.5 16.5 16.5 22.0 5.5 7.0 7.0 8.0 53 74 88 114 21.7 23.2 29.0 34.5 84.5 98.0 132.0 155.0 50 57 65 81 80 100 120 150 67 82 112 128 46 53 79 90 2.8 3.5 4.0 4.0 7 8 10 10 37 48 66 81 38 54 70 86 CSF 35A/M CSY 25E/L Te l : + 4 4 1 2 1 3 6 0 0 1 5 5 F a x : + 4 4 1 2 1 3 2 5 1 0 7 9 E m a i l : s a l e s@c r o s s m o r s e . c o m INDEX BACK NEXT
