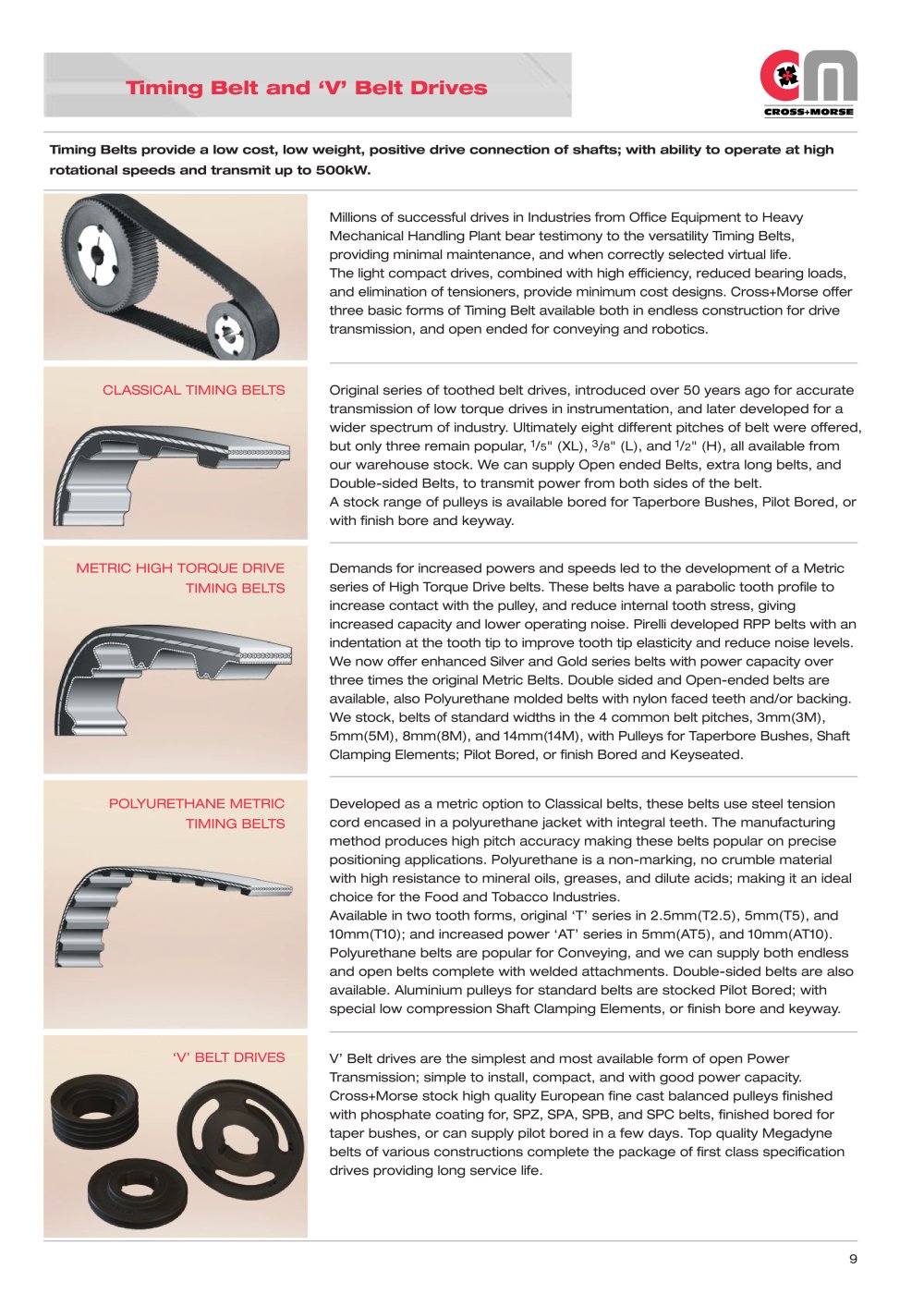

Timing Belt and ‘V’ Belt Drives
Timing Belts provide a low cost, low weight, positive drive connection of shafts; with ability to operate at highrotational speeds and transmit up to 500kW. Power Transmission Solutions Power Transmission Solutions Millions of successful drives in Industries from Office Equipment to Heavy
Mechanical Handling Plant bear testimony to the versatility Timing Belts,providing minimal maintenance, and when correctly selected virtual life. The light compact drives, combined with high efficiency, reduced bearing loads,
and elimination of tensioners, provide minimum cost designs. Cross+Morse offerthree basic forms of Timing Belt available both in endless construction for drivetransmission, and open ended for conveying and robotics. CLASSICAL TIMING BELTS Original series of toothed belt drives, introduced over 50 years ago for accuratetransmission of low torque drives in instrumentation, and later developed for awider spectrum of industry. Ultimately eight different pitches of belt were offered,but only three remain popular,
1 /
5 " (XL),
3 /
8 " (L), and
1 /
2 " (H), all available fromour warehouse stock. We can supply Open ended Belts, extra long belts, andDouble-sided Belts, to transmit power from both sides of the belt.A stock range of
pulleys is available bored for Taperbore Bushes, Pilot Bored, or
with finish bore and keyway. METRIC HIGH TORQUE DRIVETIMING BELTS Demands for increased powers and speeds led to the development of a Metricseries of High Torque Drive belts. These belts have a parabolic tooth profile toincrease contact with the
pulley, and reduce internal tooth stress, givingincreased capacity and lower operating noise. Pirelli developed RPP belts with an
indentation at the tooth tip to improve tooth tip elasticity and reduce noise levels.We now offer enhanced Silver and Gold series belts with power capacity overthree times the original Metric Belts. Double sided and Open-ended belts are
available, also Polyurethane molded belts with nylon faced teeth and/or backing.
We stock, belts of standard widths in the 4 common belt pitches, 3mm(3M),5mm(5M), 8mm(8M), and 14mm(14M), with Pulleys for Taperbore Bushes, ShaftClamping Elements; Pilot Bored, or finish Bored and Keyseated. POLYURETHANE METRIC TIMING BELTS Developed as a metric option to Classical belts, these belts use steel tensioncord encased in a polyurethane jacket with integral teeth. The manufacturingmethod produces high pitch accuracy making these belts popular on precisepositioning applications. Polyurethane is a non-marking, no crumble material
with high resistance to mineral oils, greases, and dilute acids; making it an idealchoice for the Food and Tobacco Industries.Available in two tooth forms, original ‘T’ series in 2.5mm(T2.5), 5mm(T5), and
10mm(T10); and increased power ‘AT’ series in 5mm(AT5), and 10mm(AT10).
Polyurethane belts are popular for Conveying, and we can supply both endlessand open belts complete with welded attachments. Double-sided belts are alsoavailable. Aluminium
pulleys for standard belts are stocked Pilot Bored; with
special low compression Shaft Clamping Elements, or finish bore and keyway. ?V? BELT DRIVES V’ Belt drives are the simplest and most available form of open PowerTransmission; simple to install, compact, and with good power capacity.Cross+Morse stock high quality European fine cast balanced
pulleys finishedwith phosphate coating for, SPZ, SPA, SPB, and SPC belts, finished bored for
taper bushes, or can supply pilot bored in a few days. Top quality Megadyne
belts of various constructions complete the package of first class specificationdrives providing long service life.
9
