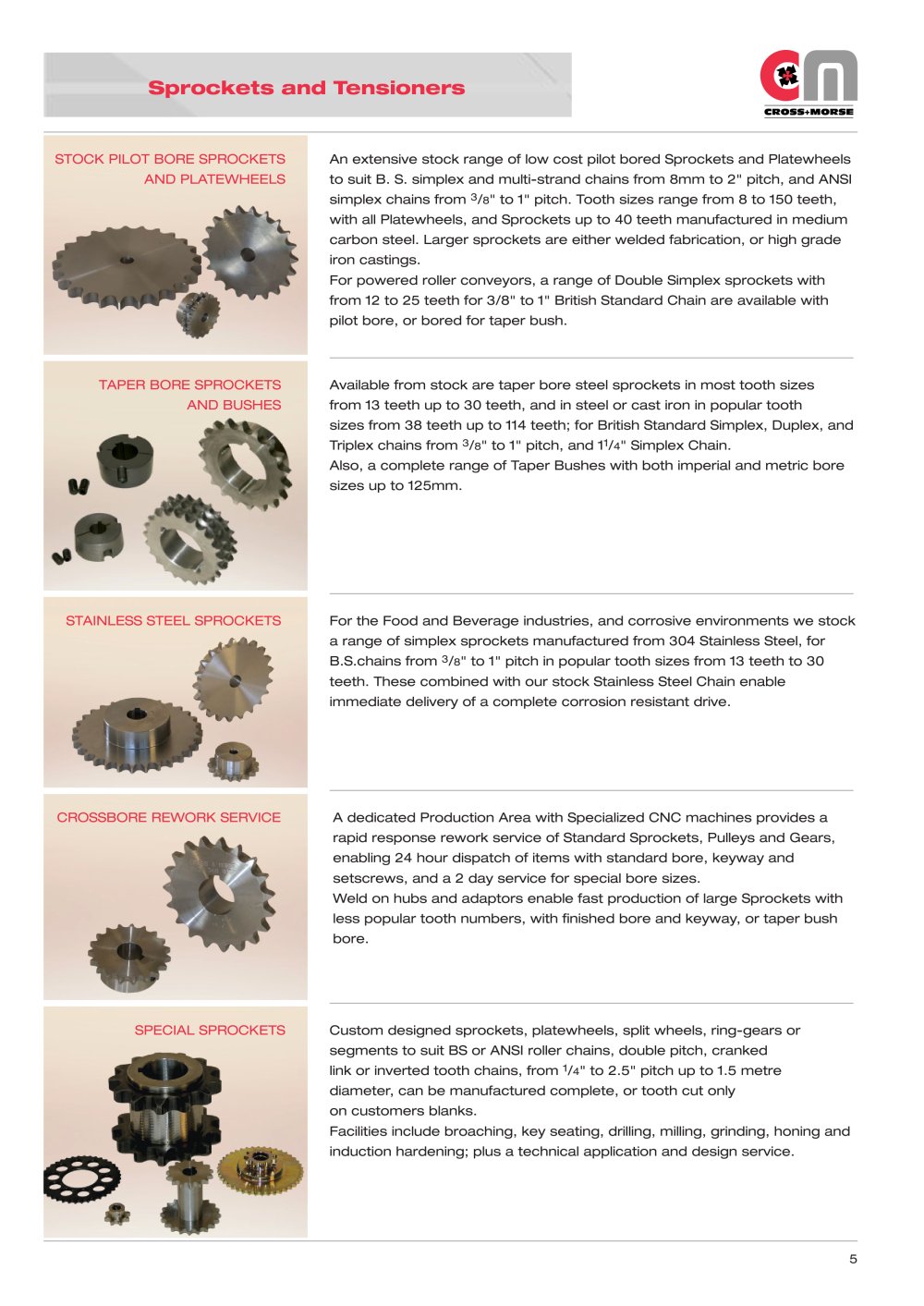

Sprockets and Tensioners

STOCK PILOT BORE SPROCKETSAND PLATEWHEELS An extensive stock range of low cost pilot bored Sprockets and Platewheelsto suit B. S. simplex and multi-strand chains from 8mm to 2" pitch, and ANSI simplex chains from
Power Transmission Solutions Power Transmission Solutions 3 /
8 " to 1" pitch. Tooth sizes range from 8 to 150 teeth,with all Platewheels, and Sprockets up to 40 teeth manufactured in medium carbon steel. Larger sprockets are either welded fabrication, or high grade iron castings. For powered roller conveyors, a range of Double Simplex sprockets withfrom 12 to 25 teeth for 3/8" to 1" British Standard Chain are available withpilot bore, or bored for taper bush.Available from stock are taper bore steel sprockets in most tooth sizesfrom 13 teeth up to 30 teeth, and in steel or cast iron in popular tooth sizes from 38 teeth up to 114 teeth; for British Standard Simplex, Duplex, and Triplex chains from
3 /
8 " to 1" pitch, and 1
1 /
4 " Simplex Chain.Also, a complete range of Taper Bushes with both imperial and metric bore sizes up to 125mm. A dedicated Production Area with Specialized CNC machines provides arapid response rework service of Standard Sprockets, Pulleys and Gears, enabling 24 hour dispatch of items with standard bore, keyway andsetscrews, and a 2 day service for special bore sizes.Weld on hubs and adaptors enable fast production of large Sprockets with less popular tooth numbers, with finished bore and keyway, or taper bush bore. STAINLESS STEEL SPROCKETS For the Food and Beverage industries, and corrosive environments we stock a range of simplex sprockets manufactured from 304 Stainless Steel, for B.S.chains from
3 /
8 " to 1" pitch in popular tooth sizes from 13 teeth to 30teeth. These combined with our stock Stainless Steel Chain enable immediate delivery of a complete corrosion resistant drive. CROSSBORE REWORK SERVICE SPECIAL SPROCKETS TAPER BORE SPROCKETSAND BUSHES Custom designed sprockets, platewheels, split wheels, ring-gears or segments to suit BS or ANSI roller chains, double pitch, cranked link or inverted tooth chains, from
1 /
4 " to 2.5" pitch up to 1.5 metre diameter, can be manufactured complete, or tooth cut only on customers blanks. Facilities include broaching, key seating, drilling, milling, grinding, honing and induction hardening; plus a technical application and design service.
5
