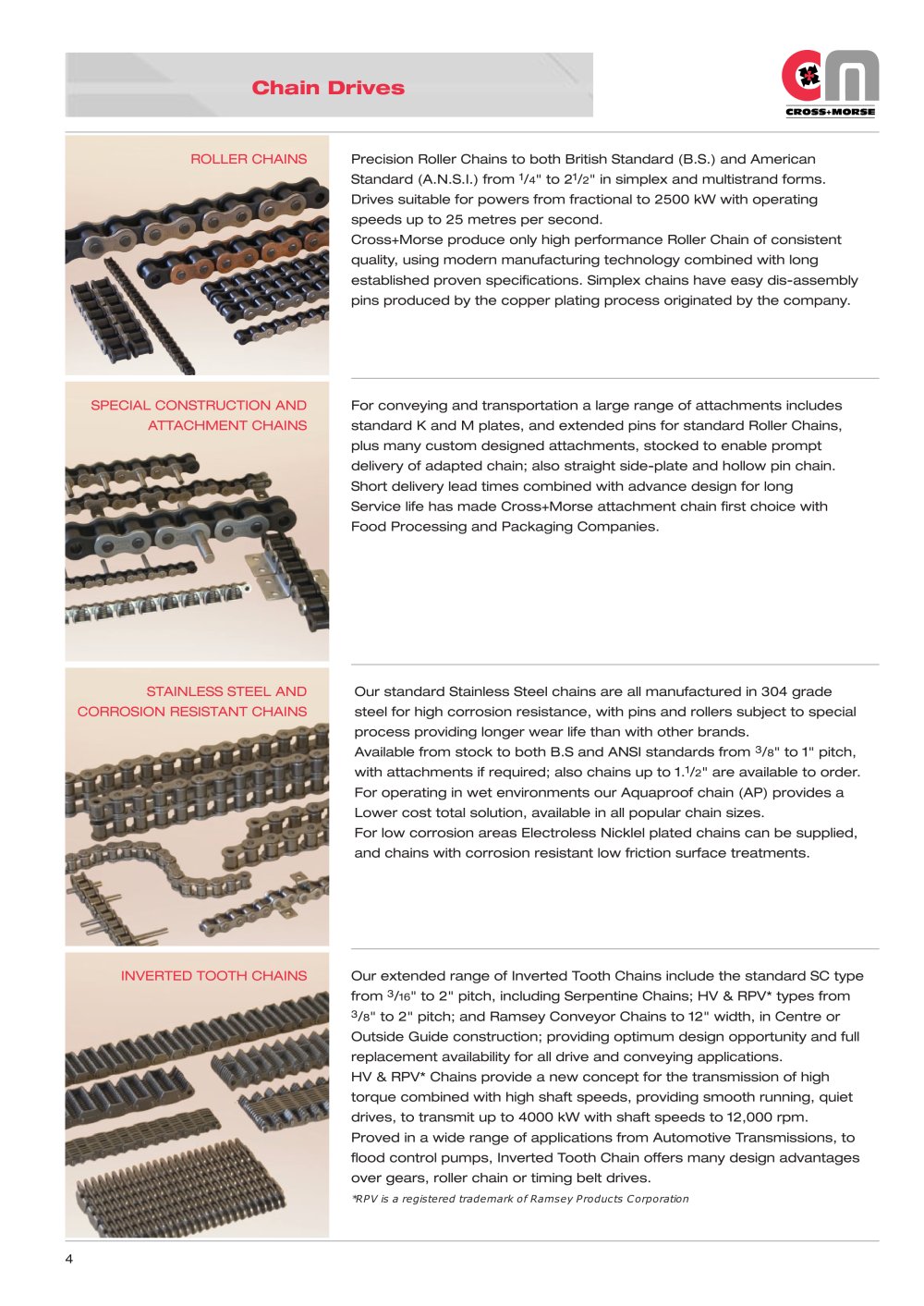

Chain Drives

ROLLER CHAINS Precision Roller Chains to both British Standard (B.S.) and American Standard (A.N.S.I.) from
1 /
4 " to 2
1 /
2 " in simplex and multistrand forms.Drives suitable for powers from fractional to 2500 kW with operating speeds up to 25 metres per second. Cross+Morse produce only high performance Roller Chain of consistent quality, using modern manufacturing technology combined with long established proven specifications. Simplex chains have easy dis-assemblypins produced by the copper plating process originated by the company. For conveying and transportation a large range of attachments includes standard K and M plates, and extended pins for standard Roller Chains, plus many custom designed attachments, stocked to enable prompt delivery of adapted chain; also straight side-plate and hollow pin chain. Short delivery lead times combined with advance design for long Service life has made Cross+Morse attachment chain first choice with Food Processing and Packaging Companies. Our standard Stainless Steel chains are all manufactured in 304 grade steel for high corrosion resistance, with pins and rollers subject to special process providing longer wear life than with other brands. Available from stock to both B.S and ANSI standards from
Power Transmission Solutions STAINLESS STEEL ANDCORROSION RESISTANT CHAINS
3 /
8 " to 1" pitch, with attachments if required; also chains up to 1.
1 /
2 " are available to order.For operating in wet environments our Aquaproof chain (AP) provides a Lower cost total solution, available in all popular chain sizes. For low corrosion areas Electroless Nicklel plated chains can be supplied, and chains with corrosion resistant low friction surface treatments.Our extended range of Inverted Tooth Chains include the standard SC typefrom INVERTED TOOTH CHAINS SPECIAL CONSTRUCTION ANDATTACHMENT CHAINS
3 /
16 " to 2" pitch, including Serpentine Chains; HV & RPV* types from
3 /
8 " to 2" pitch; and Ramsey Conveyor Chains to 12" width, in Centre orOutside Guide construction; providing optimum design opportunity and full replacement availability for all drive and conveying applications. HV & RPV* Chains provide a new concept for the transmission of high torque combined with high shaft speeds, providing smooth running, quietdrives, to transmit up to 4000 kW with shaft speeds to 12,000 rpm. Proved in a wide range of applications from Automotive Transmissions, to flood control pumps, Inverted Tooth Chain offers many design advantages over gears, roller chain or timing belt drives.
*RPV is a registered trademark of Ramsey Products Corporation 4
