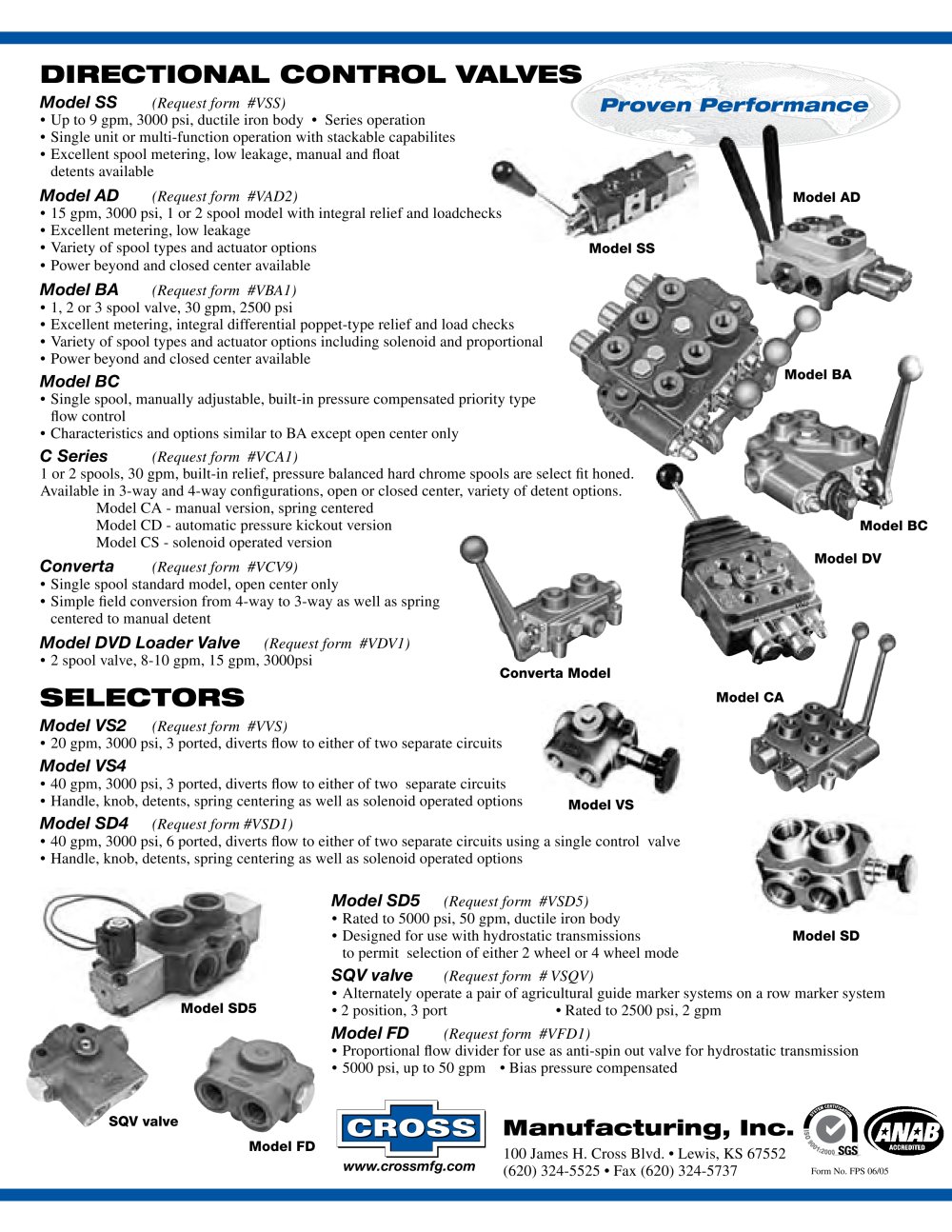

DIRECTIONAL CONTROL VALVES

Model SS

(Request form #VSS) • Up to 9 gpm, 3000 psi, ductile iron body • Series operation • Single unit or multi-function operation with stackable capabilites • Excellent spool metering, low leakage, manual and float detents available

Proven Performance

Model AD

(Request form #VAD2)
Model AD Converta Model • 15 gpm, 3000 psi, 1 or 2 spool model with integral relief and loadchecks • Excellent metering, low leakage • Variety of spool types and actuator options• Power beyond and closed center available

Model BA

(Request form #VBA1) • 1, 2 or 3 spool valve, 30 gpm, 2500 psi • Excellent metering, integral differential poppet-type relief and load checks • Variety of spool types and actuator options including solenoid and proportional • Power beyond and closed center available

Model BC

Model BAModel SS • Single spool, manually adjustable, built-in pressure compensated priority type flow control • Characteristics and options similar to BA except open center only

C Series

(Request form #VCA1) 1 or 2 spools, 30 gpm, built-in relief, pressure balanced hard chrome spools are select fit honed. Available in 3-way and 4-way configurations, open or closed center, variety of detent options. Model CA - manual version, spring centered Model CD - automatic pressure kickout version Model CS - solenoid operated version

Converta

(Request form #VCV9)
Model DV • Single spool standard model, open center only • Simple field conversion from 4-way to 3-way as well as spring centered to manual detent

Model DVD Loader Valve

(Request form #VDV1) • 2 spool valve, 8-10 gpm, 15 gpm, 3000psi

SELECTORS

Model CA Model VS

Model VS2

(Request form #VVS) • 20 gpm, 3000 psi, 3 ported, diverts flow to either of two separate circuits

Model VS4

• 40 gpm, 3000 psi, 3 ported, diverts flow to either of two separate circuits • Handle, knob, detents, spring centering as well as solenoid operated options

Model SD4

(Request form #VSD1) • 40 gpm, 3000 psi, 6 ported, diverts flow to either of two separate circuits using a single control valve • Handle, knob, detents, spring centering as well as solenoid operated options

Model SD5

(Request form #VSD5) • Rated to 5000 psi, 50 gpm, ductile iron body • Designed for use with hydrostatic transmissions
Model SD to permit selection of either 2 wheel or 4 wheel mode

SQV valve

(Request form # VSQV) • Alternately operate a pair of agricultural guide marker systems on a row marker system • 2 position, 3 port • Rated to 2500 psi, 2 gpm
Model SD5 Model BC

Model FD

(Request form #VFD1) • Proportional flow divider for use as anti-spin out valve for hydrostatic transmission • 5000 psi, up to 50 gpm • Bias pressure compensated
SQV valve Model FD

Manufacturing, Inc.

100 James H. Cross Blvd. • Lewis, KS 67552(620) 324-5525 • Fax (620) 324-5737
www.crossmfg.com Form No. FPS 06/05
