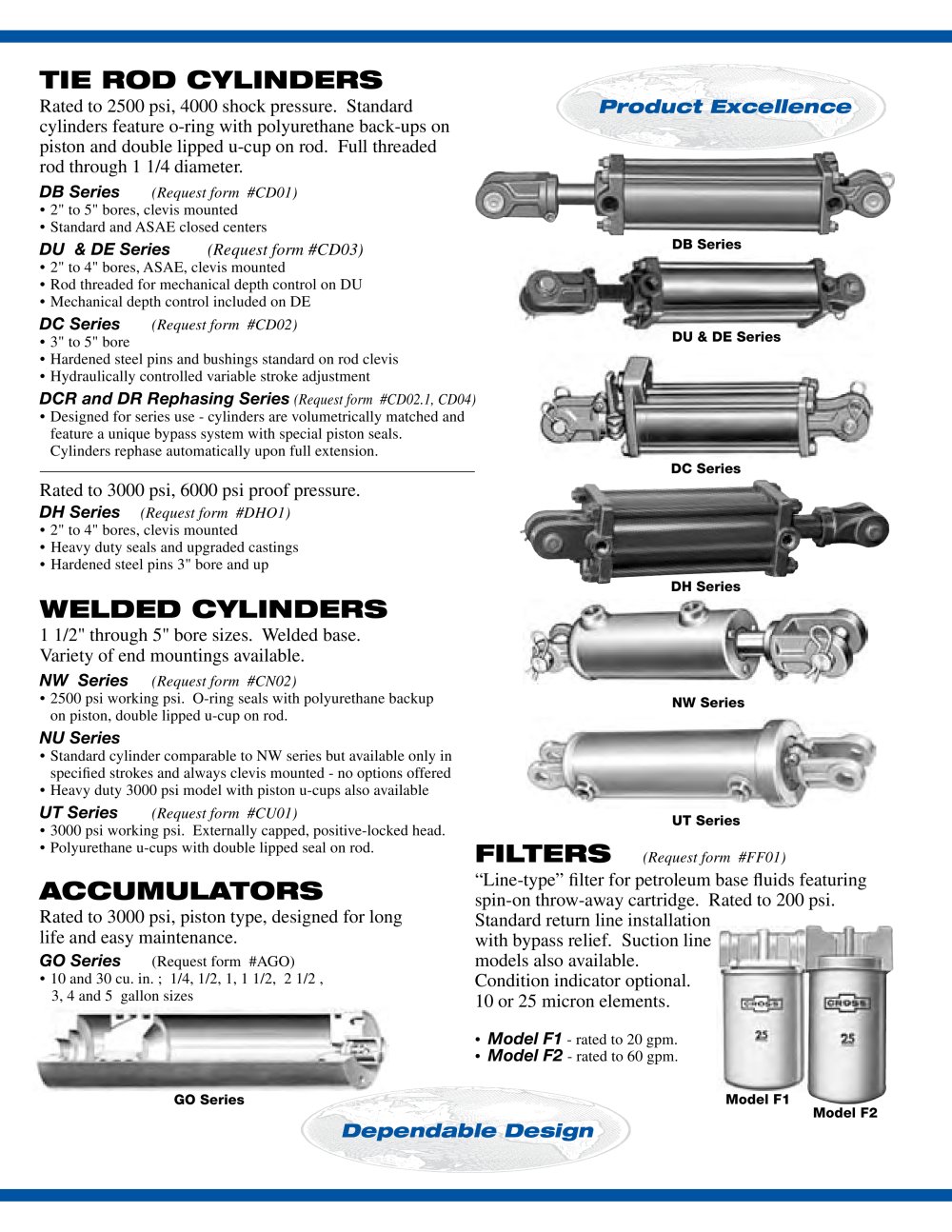

TIE ROD CYLINDERS

Rated to 2500 psi, 4000 shock pressure. Standard cylinders feature o-ring with polyurethane back-ups on piston and double lipped u-cup on rod. Full threaded rod through 1 1/4 diameter. Product Excellence Dependable Design

DB Series

(Request form #CD01) • 2" to 5" bores, clevis mounted • Standard and ASAE closed centers

DU & DE Series (Request form #CD03)

• 2" to 4" bores, ASAE, clevis mounted • Rod threaded for mechanical depth control on DU • Mechanical depth control included on DE

DC Series

(Request form #CD02) • 3" to 5" bore • Hardened steel pins and bushings standard on rod clevis • Hydraulically controlled variable stroke adjustment
DU & DE Series

DCR and DR Rephasing Series

(Request form #CD02.1, CD04) • Designed for series use - cylinders are volumetrically matched and feature a unique bypass system with special piston seals. Cylinders rephase automatically upon full extension.

Rated to 3000 psi, 6000 psi proof pressure.

DH Series

(Request form #DHO1) • 2" to 4" bores, clevis mounted• Heavy duty seals and upgraded castings • Hardened steel pins 3" bore and up

WELDED CYLINDERS

1 1/2" through 5" bore sizes. Welded base. Variety of end mountings available.

NW Series

(Request form #CN02) • 2500 psi working psi. O-ring seals with polyurethane backup on piston, double lipped u-cup on rod.

NU Series

• Standard cylinder comparable to NW series but available only in specified strokes and always clevis mounted - no options offered • Heavy duty 3000 psi model with piston u-cups also available

UT Series

(Request form #CU01) • 3000 psi working psi. Externally capped, positive-locked head. • Polyurethane u-cups with double lipped seal on rod.
UT Series DC Series NW Series DB Series DH Series

FILTERS

(Request form #FF01)

ACCUMULATORS

“Line-type” filter for petroleum base fluids featuring spin-on throw-away cartridge. Rated to 200 psi. Standard return line installation with bypass relief. Suction line models also available. Condition indicator optional. 10 or 25 micron elements. Rated to 3000 psi, piston type, designed for long life and easy maintenance.

GO Series

(Request form #AGO) • 10 and 30 cu. in. ; 1/4, 1/2, 1, 1 1/2, 2 1/2 , 3, 4 and 5 gallon sizes •

Model F1

- rated to 20 gpm.•

Model F2

- rated to 60 gpm.
GO Series Model F1Model F2
