Analogue Instruments
86Pages

{{requestButtons}}

Catalog excerpts

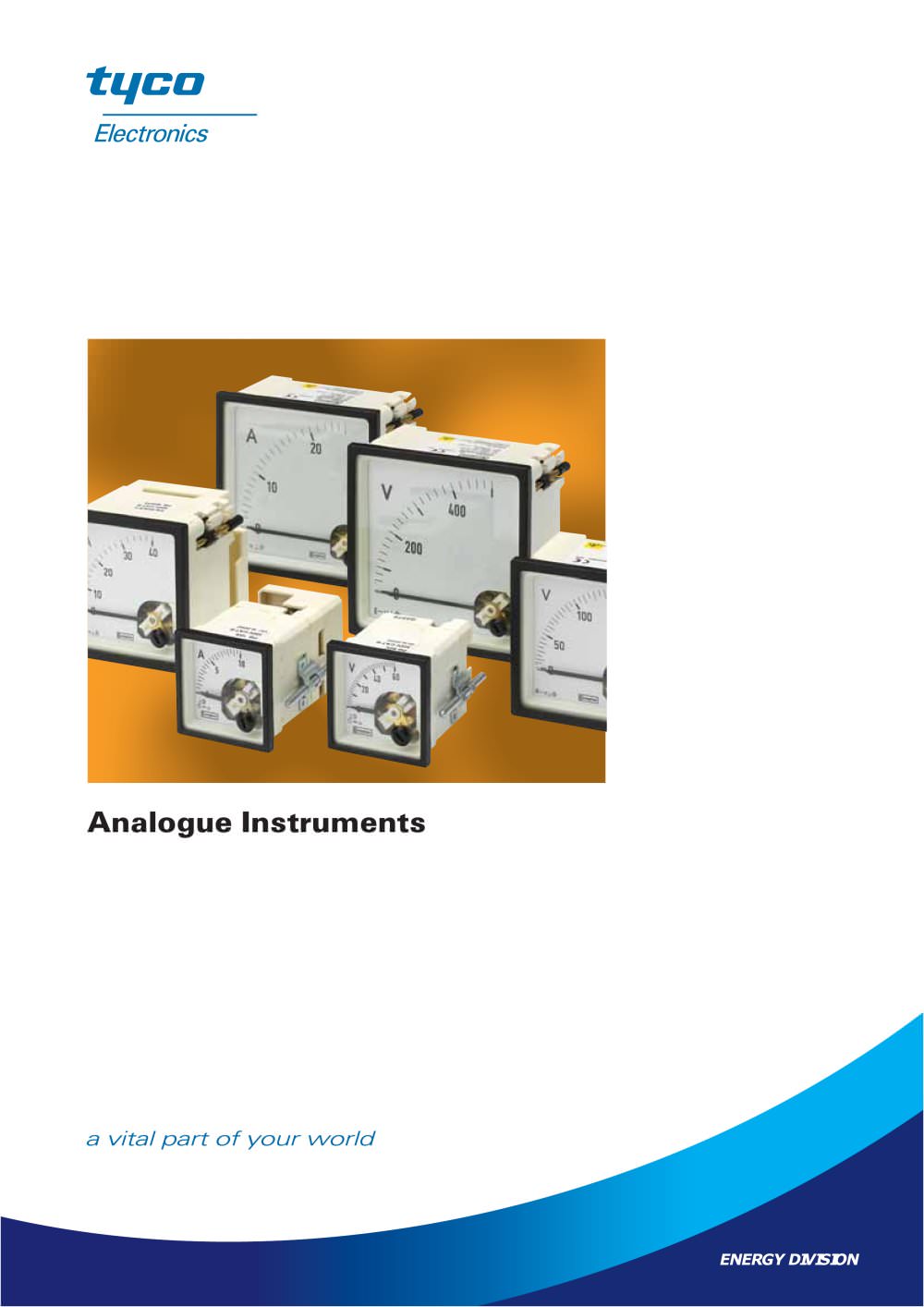

Analogue Instruments - 1

Analogue Instruments ENERGY DIVISION

Open the catalog to page 1
Analogue Instruments - 3

1 Features Extensive range Accurate measurement and display of electrical and electronic parameters Wide range of case styles and specifications Maximum reliability in harsh environments Benefits Low cost Local indication Ease of installation Minimal training Low maintenance Reasonable accuracy Applications Switchgear Distribution systems Generator sets Control panels Energy management Building management Utility power monitoring Process control Motor control Approvals UL, CSA, ABS, LRS, BV, ISSeP Contents Page DIN Panel Meters 2 – 29 An extensive range of 48, 72, 96 and 144mm DIN style...

Open the catalog to page 3
Analogue Instruments - 4

2 Features A range of the most popular short-scale measuring instruments in 4 case sizes Shock resistant sprung pivot and jewel movement Terminal covers supplied as standard EMC hard frequency meter are fully EMC and LVD compliant 1/4" ‘fast on’ terminals available Benefits Low cost Local indication Ease of installation Minimal training Low maintenance Customised options and features Applications Switchgear Distribution systems Generator sets Control panels Energy management Building management Utility power monitoring Process control Motor control Approvals Lloyds: 03/00055 - Moving coil...

Open the catalog to page 4
Analogue Instruments - 5

3 General Specifications Dimensions Performance BSEN60051 Measuring ranges DIN 43701 Accuracy overload BSEN60051 Dimensions DIN43700 Scale marking generally to DIN43802 Magnetic influence BSEN60051 Safety BSEN61010-1 Terminals Clamp strap M4 for up to 25A. Clamp strap M8 for over 25A. 1/4" spade terminals available for models E243 and E244 Humidity range Up to 95% RH (non condensing) Test voltage @50Hz 3kV RMS for 1 minute Ammeter ranges 1.0/1.2/1.3/1.5/2.5/4/5/6/8 and decade multiples thereof. Overload AC current x 1.2 continuous x 10 for 5 seconds AC voltage and frequency x 1.2 continuous...

Open the catalog to page 5
Analogue Instruments - 6

4 DIN Panel Meters – Short scale Moving Iron AC Ammeters and Voltmeters Designed to measure AC current or voltage, these meters indicate true RMS values and are substantially independent of system waveform. Scales are calibrated down to 20%, and ammeters can have overload scales of x2, x3, x5 or x6 for motor start duty. Ammeters can be supplied for use with -/1A or -/5A current transformers, whilst voltmeters can be scaled for use with voltage transformers. Heavy damping is available as an option. Meters can be used to measure DC at reduced accuracy. Frequency Meters Frequency meters use an...

Open the catalog to page 6
Analogue Instruments - 7

5 Maximum Demand Indicators The thermal/time characteristics of MDI meters monitor the most economic use of cable, fusegear and transformers. The directly heated bimetal element indicates mean RMS current over 8, 15, or 20 minutes, and a red slave pointer shows the highest value reached. The reset knob is wire sealable. Scales are calibrated to match the CT primary plus 20% overload. End values are selected from: 1.2, 1.8, 2.4, 3, 3.6, 4.8, 6, 7.2, 9 amps and their multiples of 10 and 100. Combined AC Ammeter and Maximum Demand Indicator Where measurement of instantaneous and maximum demand...

Open the catalog to page 7
Analogue Instruments - 8

6 Connections DC Voltmeter DC Ammeter Connections AC Ammeter AC Voltmeter Moving Coil DC Ammeters and Voltmeters Moving coil meters are suitable for all DC systems. The linear scale is calibrated down to zero and the accuracy maintained down to 10%. High currents are measured with separate shunts and suitably scaled indicators. Suppressed, centre and offset zero models are available. Moving Coil Rectified AC Ammeters and Voltmeters For high frequency or linear full scale AC measurements, these instruments measure average values of sinusoidal waveforms and are scaled in RMS values. The high...

Open the catalog to page 8
Analogue Instruments - 9

7 Process Indicators Meters are used to check process functions locally or remotely at centralised controls. These moving coil instruments offer a wide variety of electrical and mechanical readouts and are operated by transducer, tachogenerator, thermocouple, resistance bulb or other DC analogue signals. Suppressed, centre and offset zero models are available on request. Accuracy: Class 1.5 Ratings: 1, 2, 5, 10, 20mA 4/20mA suppressed zero Bezel size mm 48 72 96 144 Scale length mm 42 65 94 145 Product codes AC current E242-89A E243-01A E244-01A 246-10A AC voltage E242-89V E243-01V E244-01V...

Open the catalog to page 9
Analogue Instruments - 10

8 Features Extensive range of specialist meters in four case sizes Shock resistant taut band suspension Vibration-proof Hi-Q damping Slide-in dials for 90°current, voltage and frequency on models 242, 243 and 244 Terminal covers supplied as standard Benefits Low cost Local indication Ease of installation Minimal training Low maintenance Customised options and features Applications Switchgear Distribution systems Generator sets Control panels Energy management Building management Utility power monitoring Process control Motor control Approvals LRS and BV DIN Panel Meters – Long-Scale An...

Open the catalog to page 10
Analogue Instruments - 11

9 DIN 16257 symbol meaning for calibration position Vertical Horizontal Inclined 60° Inclination of dial surface from a horizontal plane, e.g. 60° Required orientation must always be stated when ordering if other than vertical mounting is required. Specifications Continued Dimensions Case Dimensions and panel cutout conform to IEC473, DIN 43700. Models 242, 243 and 244 have injection moulded cases and bezels in flame retardant engineering thermoplastic, recognised by Underwriters Laboratory materials specifications. All 246 models have pressed steel cases. Bezel Slim-line DIN43802, black as...

Open the catalog to page 11
Analogue Instruments - 12

10 Connections AC Ammeter AC Voltmeter Moving Iron AC Ammeters and Voltmeters Designed to measure AC current or voltage, these meters indicate true RMS values and are substantially independent of system waveform. Scales are calibrated down to 20%, and ammeters can have overload scales x2, x3, x5 or x6 for motor start duty. Ammeters can be supplied for use with -/1A or -/5A current transformers, whilst voltmeters can be scaled for use with voltage transformers. Heavy damping is available as an option. Meters can be used to measure DC at reduced accuracy. Accuracy: Class 1.5 Frequency: 50 or...

Open the catalog to page 12
