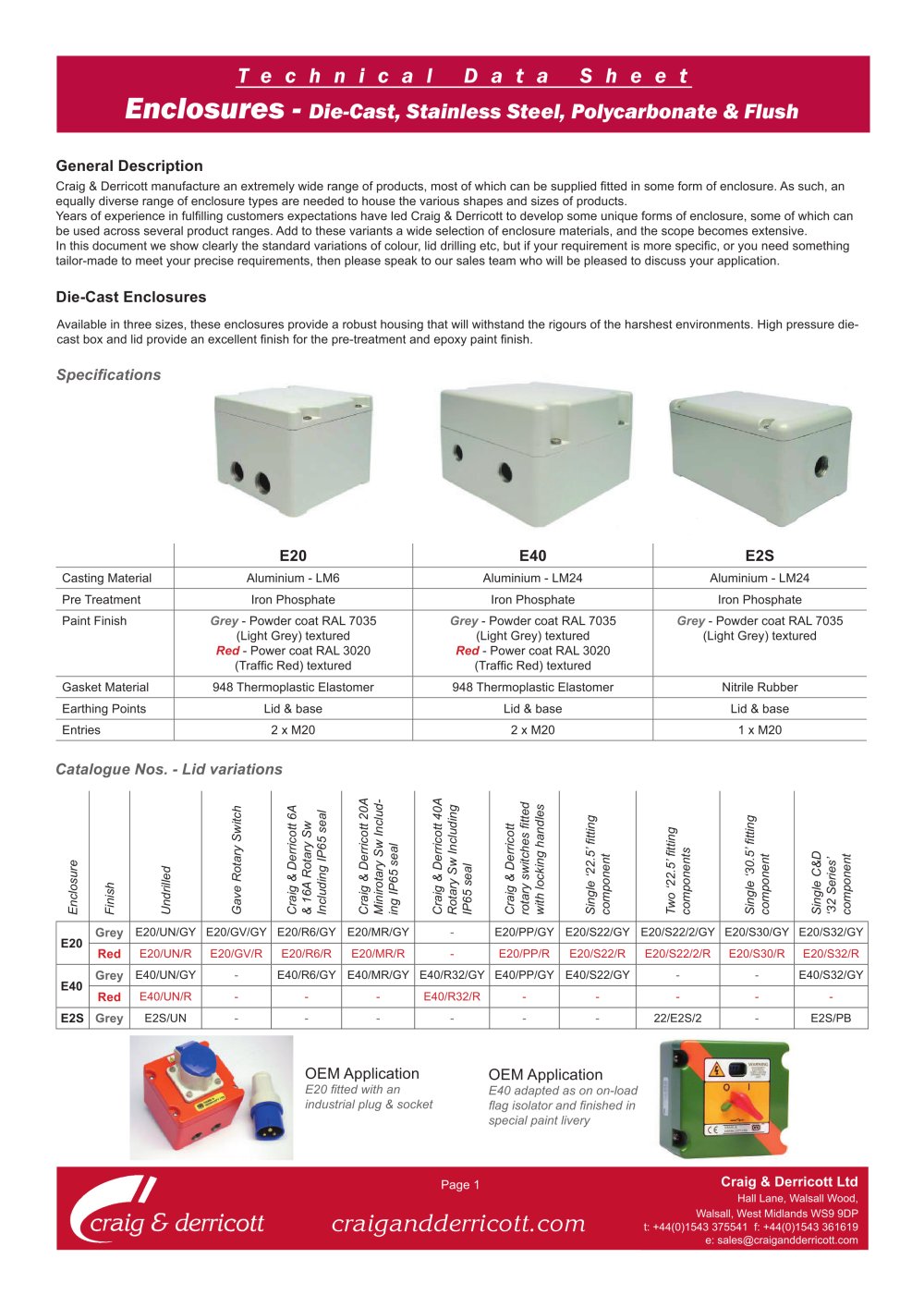

*Technical Data SI*	i ee	t
*Enclosures -* *Die-Cast, Stainless Steel, Polycarbonate & Flush*

General Description

Craig & Derricott manufacture an extremely wide range of products, most of which can be supplied fitted in some form of enclosure. As such, an equally diverse range of enclosure types are needed to house the various shapes and sizes of products.

Years of experience in fulfilling customers expectations have led Craig & Derricott to develop some unique forms of enclosure, some of which can be used across several product ranges. Add to these variants a wide selection of enclosure materials, and the scope becomes extensive. In this document we show clearly the standard variations of colour, lid drilling etc, but if your requirement is more specific, or you need something tailor-made to meet your precise requirements, then please speak to our sales team who will be pleased to discuss your application.

Die-Cast Enclosures

Available in three sizes, these enclosures provide a robust housing that will withstand the rigours of the harshest environments. High pressure die-cast box and lid provide an excellent finish for the pre-treatment and epoxy paint finish.

Specifications


	E20	E40	E2S
Casting Material	Aluminium - LM6	Aluminium - LM24	Aluminium - LM24
Pre Treatment	Iron Phosphate	Iron Phosphate	Iron Phosphate
Paint Finish	*Grey* - Powder coat RAL 7035 (Light Grey) textured *Red* - Power coat RAL 3020 (Traffic Red) textured	*Grey* - Powder coat RAL 7035 (Light Grey) textured *Red* - Power coat RAL 3020 (Traffic Red) textured	*Grey* - Powder coat RAL 7035 (Light Grey) textured
Gasket Material	948 Thermoplastic Elastomer	948 Thermoplastic Elastomer	Nitrile Rubber
Earthing Points	Lid & base	Lid & base	Lid & base
Entries	2 x M20	2 x M20	1 x M20

Catalogue Nos. - Lid variations

Enclosure

Finish

Undrilled

Gave Rotary Switch

Craig & Derricott 6A & 16A Rotary Sw Including IP65 seal

Craig & Derricott 20A Minirotary Sw Including IP65 seal

Craig & Derricott 40A Rotary Sw Including IP65 seal

Craig & Derricott rotary switches fitted with locking handles

Single '22.5' fitting component

Two '22.5' fitting components

Single '30.5' fitting component

Single C&D '32 Series' component

E20

Grey

E20/UN/GY

E20/GV/GY

E20/R6/GY

E20/MR/GY

E20/PP/GY

E20/S22/GY

E20/S22/2/GY

E20/S30/GY

E20/S32/GY

Red

E20/UN/R

E20/GV/R

E20/R6/R

E20/MR/R

E20/PP/R

E20/S22/R

E20/S22/2/R

E20/S30/R

E20/S32/R

E40

Grey

E40/UN/GY

E40/R6/GY

E40/MR/GY

E40/R32/GY

E40/PP/GY

E40/S22/GY

E40/S32/GY

Red

E40/UN/R

E40/R32/R

E2S

Grey

E2S/UN

22/E2S/2

E2S/PB

OEM Application

E20 fitted with an industrial plug & socket

OEM Application

E40 adapted as on on-load flag isolator and finished in special paint livery

Craig & Derricott Ltd

Hall Lane, Walsall Wood, Walsall, West Midlands WS9 9DP t: +44(0)1543 375541 f: +44(0)1543 361619 e: sales@craigandderricott.com
