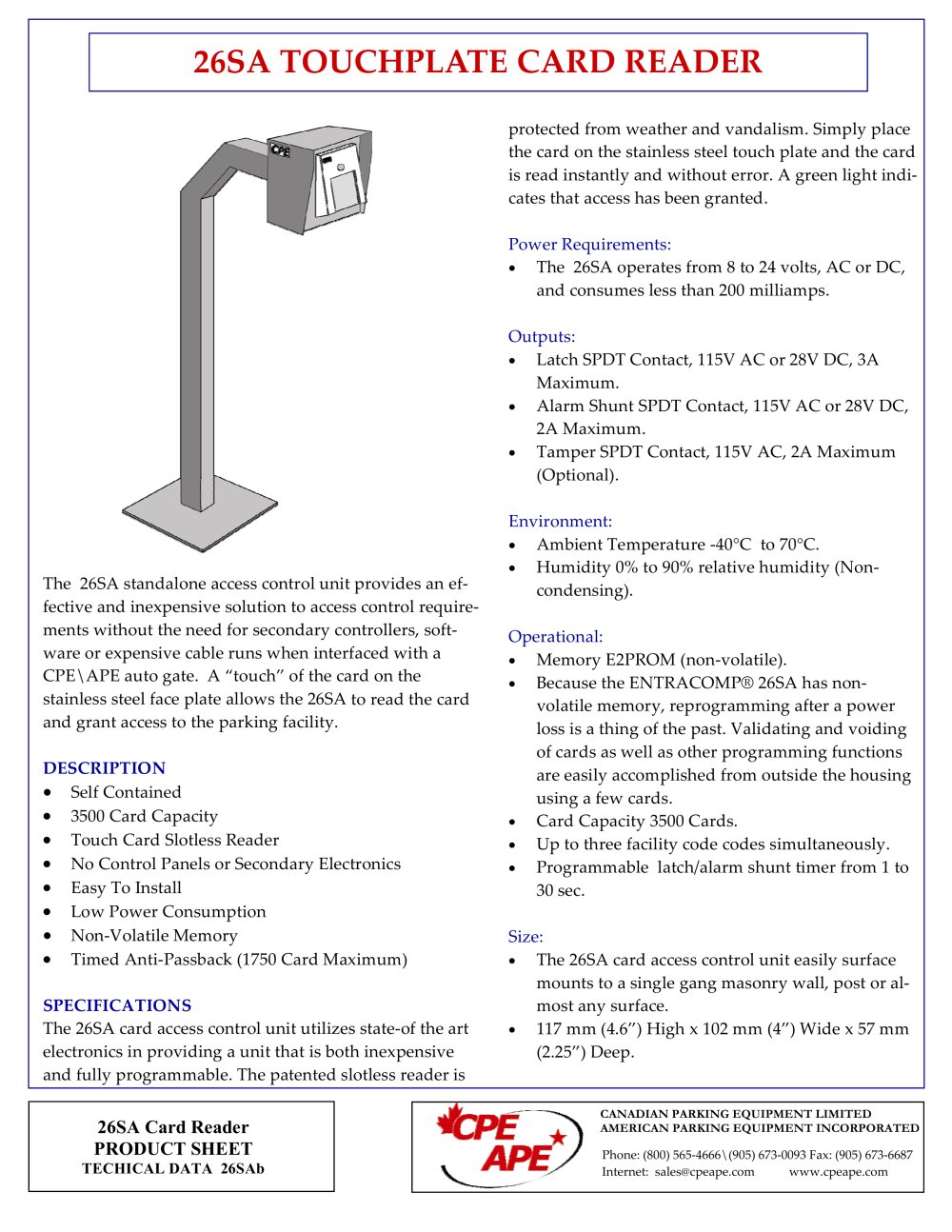

26SA   TOUCHPLATE   CARD   READER

protected   from   weather   and   vandalism.   Simply   place   the   card   on   the   stainless   steel   touch   plate   and   the   card   is   read   instantly   and   without   error.   A   green   light   indi Ȭ cates   that   access   has   been   granted.     Power   Requirements:
• The    26SA   operates   from   8   to   24   volts,   AC   or   DC,   and   consumes   less   than   200   milliamps.    Outputs:
• Latch   SPDT   Contact,   115V   AC   or   28V   DC,   3A   Maximum.
• Alarm   Shunt   SPDT   Contact,   115V   AC   or   28V   DC,   2A   Maximum.
• Tamper   SPDT   Contact,   115V   AC,   2A   Maximum   (Optional).    Environment:
• Ambient   Temperature  È¬ 40°C    to   70°C.
• Humidity   0%   to   90%   relative   humidity   (Non Ȭ The    26SA   standalone   access   control   unit   provides   an   ef Ȭ Operational: condensing).      fective   and   inexpensive   solution   to   access   control   require Ȭ ments   without   the   need   for   secondary   controllers,   soft Ȭ ware   or   expensive   cable   runs   when   interfaced   with   a
• Memory   E2PROM   (non Ȭ volatile).   CPE\APE   auto   gate.    A   “touch”   of   the   card   on   the
• Because   the   ENTRACOMP®   26SA   has   non Ȭ stainless   steel   face   plate   allows   the   26SA   to   read   the   card   volatile   memory,   reprogramming   after   a   power   and   grant   access   to   the   parking   facility.   loss   is   a   thing   of   the   past.   Validating   and   voiding     of   cards   as   well   as   other   programming   functions   DESCRIPTION   are   easily   accomplished   from   outside   the   housing

•

Self   Contained using   a   few   cards.

•

3500   Card   Capacity
• Card   Capacity   3500   Cards.

•

Touch   Card   Slotless   Reader
• Up   to   three   facility   code   codes   simultaneously.

•

No   Control   Panels   or   Secondary   Electronics
• Programmable    latch/alarm   shunt   timer   from   1   to

•

Easy   To   Install 30   sec.

•

Low   Power   Consumption

•

Non Ȭ Volatile   Memory Size:

•

Timed   Anti Ȭ Passback   (1750   Card   Maximum)
• The   26SA   card   access   control   unit   easily   surface     mounts   to   a   single   gang   masonry   wall,   post   or   al Ȭ SPECIFICATIONS   most   any   surface.   The   26SA   card   access   control   unit   utilizes   state Ȭ of   the   art
• 117   mm   (4.6”)   High   x   102   mm   (4”)   Wide   x   57   mm   electronics   in   providing   a   unit   that   is   both   inexpensive   (2.25”)   Deep.    and   fully   programmable.   The   patented   slotless   reader   is
CANADIAN PARKING EQUIPMENT LIMITED AMERICAN PARKING EQUIPMENT INCORPORATED

26SA Card Reader PRODUCT SHEET

Phone:   (800)   565 Ȭ 4666\(905)   673 Ȭ 0093   Fax:   (905)   673 Ȭ 6687   TECHICAL DATA 26SAb Internet:    sales@cpeape.com             www.cpeape.com
