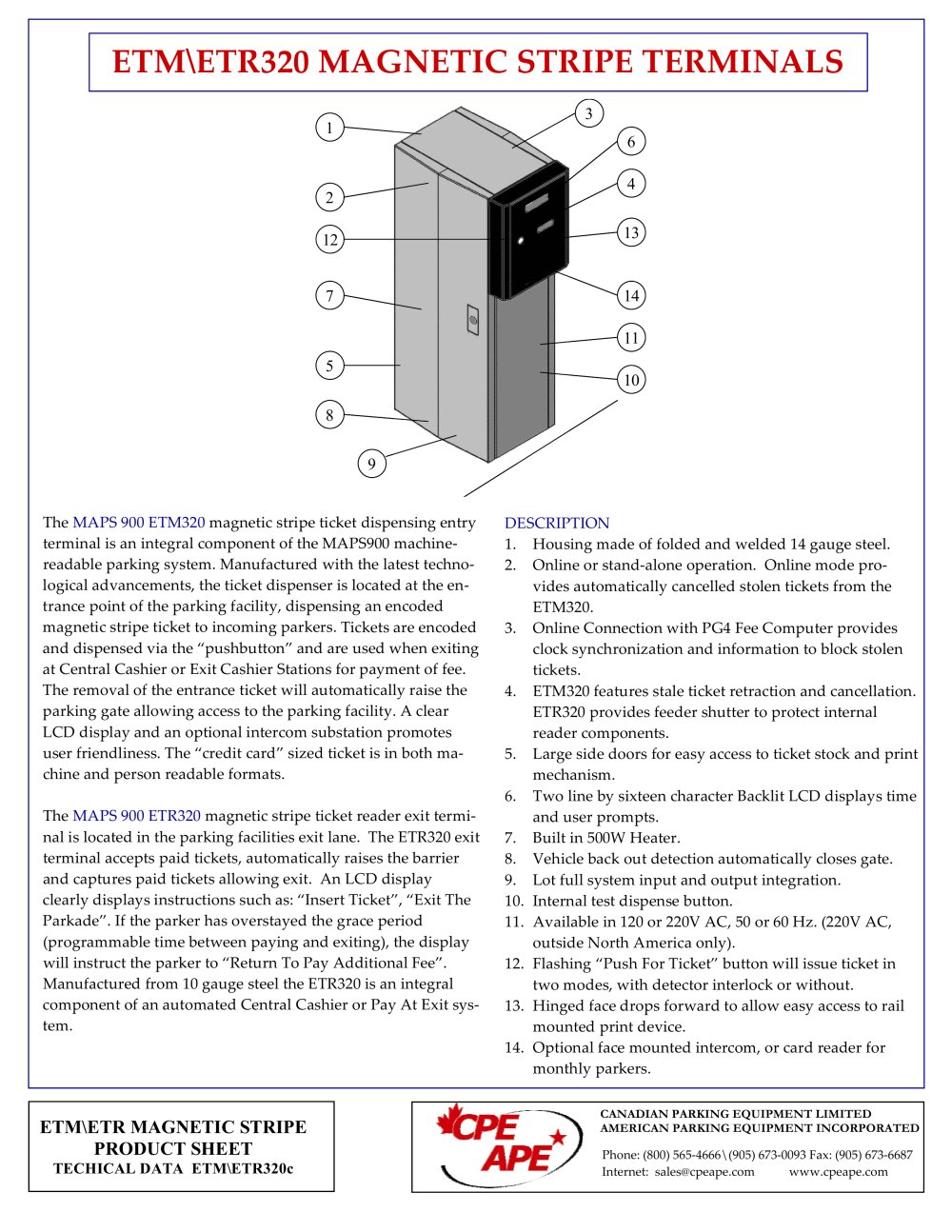

ETM320/ETR320 - CPE APE - #1

The MAPS 900 ETM320 magnetic stripe ticket dispensing entry terminal is an integral component of the MAPS900 machine-readable parking system. Manufactured with the latest techno­logical advancements, the ticket dispenser is located at the en­trance point of the parking facility, dispensing an encoded magnetic stripe ticket to incoming parkers. Tickets are encoded and dispensed via the "pushbutton" and are used when exiting at Central Cashier or Exit Cashier Stations for payment of fee. The removal of the entrance ticket will automatically raise the parking gate allowing access to the parking facility. A clear LCD display and an optional intercom substation promotes user friendliness. The "credit card" sized ticket is in both ma­chine and person readable formats.

The MAPS 900 ETR320 magnetic stripe ticket reader exit termi­nal is located in the parking facilities exit lane. The ETR320 exit terminal accepts paid tickets, automatically raises the barrier and captures paid tickets allowing exit. An LCD display clearly displays instructions such as: "Insert Ticket", "Exit The Parkade". If the parker has overstayed the grace period (programmable time between paying and exiting), the display will instruct the parker to "Return To Pay Additional Fee". Manufactured from 10 gauge steel the ETR320 is an integral component of an automated Central Cashier or Pay At Exit sys­tem.

DESCRIPTION

Housing made of folded and welded 14 gauge steel. Online or stand-alone operation. Online mode pro­vides automatically cancelled stolen tickets from the ETM320.

1. 2.

3.

Online Connection with PG4 Fee Computer provides

clock synchronization and information to block stolen tickets.

4. ETM320 features stale ticket retraction and cancellation. ETR320 provides feeder shutter to protect internal reader components.

5. Large side doors for easy access to ticket stock and print

mechanism.

6. Two line by sixteen character Backlit LCD displays time and user prompts.

7. Built in 500W Heater.

Vehicle back out detection automatically closes gate. Lot full system input and output integration. Internal test dispense button.

Available in 120 or 220V AC, 50 or 60 Hz. (220V AC, outside North America only). Flashing "Push For Ticket" button will issue ticket in two modes, with detector interlock or without. Hinged face drops forward to allow easy access to rail mounted print device.

Optional face mounted intercom, or card reader for monthly parkers.

8. 9. 10. 11.

12.

13.

14.

Phone: (800) 565-4666\(905) 673-0093 Fax: (905) 673-6687 Internet: sales@cpeape.com www.cpeape.com
