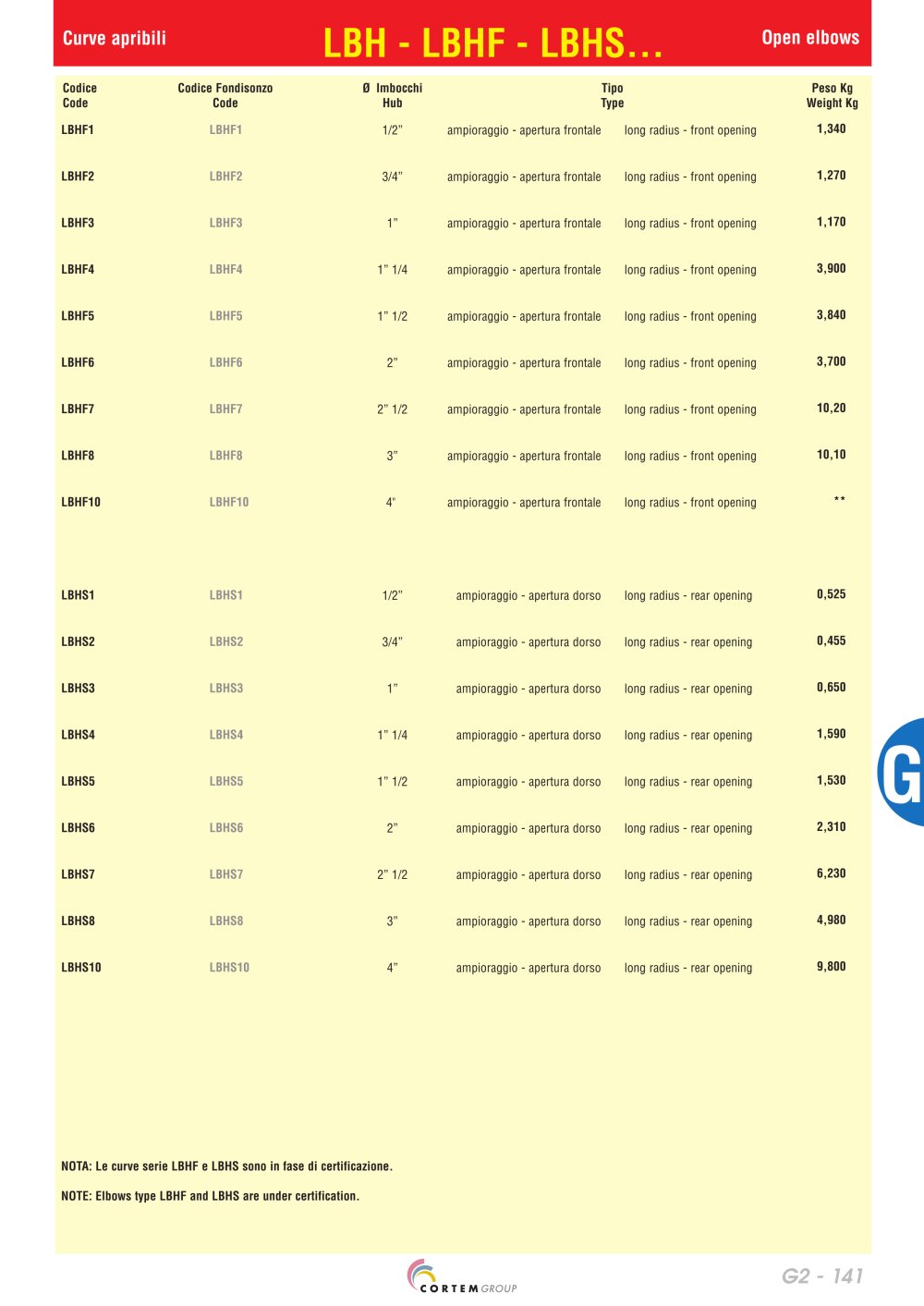

LBH - LBHF - LBHS...

Open elbows

Curve apribili


Codice Code	Codice Fondisonzo 0 Code	Imbocchi Hub	Tipo Type			Peso Kg Weight Kg
LBHF1	LBHF1	1/2"	ampioraggio - apertura frontale	long radius	- front opening	1,340
LBHF2	LBHF2	3/4"	ampioraggio - apertura frontale	long radius	- front opening	1,270
LBHF3	LBHF3	1"	ampioraggio - apertura frontale	long radius	- front opening	1,170
LBHF4	LBHF4	1" 1/4	ampioraggio - apertura frontale	long radius	- front opening	3,900
LBHF5	LBHF5	1" 1/2	ampioraggio - apertura frontale	long radius	- front opening	3,840
LBHF6	LBHF6	2"	ampioraggio - apertura frontale	long radius	- front opening	3,700
LBHF7	LBHF7	2" 1/2	ampioraggio - apertura frontale	long radius	- front opening	10,20
LBHF8	LBHF8	3"	ampioraggio - apertura frontale	long radius	- front opening	10,10
LBHF10	LBHF10	4"	ampioraggio - apertura frontale	long radius	- front opening	**
LBHS1	LBHS1	1/2"	ampioraggio - apertura dorso	long radius	- rear opening	0,525
LBHS2	LBHS2	3/4"	ampioraggio - apertura dorso	long radius	- rear opening	0,455
LBHS3	LBHS3	1"	ampioraggio - apertura dorso	long radius	- rear opening	0,650
LBHS4	LBHS4	1" 1/4	ampioraggio - apertura dorso	long radius	- rear opening	1,590
LBHS5	LBHS5	1" 1/2	ampioraggio - apertura dorso	long radius	- rear opening	1,530
LBHS6	LBHS6	2"	ampioraggio - apertura dorso	long radius	- rear opening	2,310
LBHS7	LBHS7	2" 1/2	ampioraggio - apertura dorso	long radius	- rear opening	6,230
LBHS8	LBHS8	3"	ampioraggio - apertura dorso	long radius	- rear opening	4,980
LBHS10	LBHS10	4"	ampioraggio - apertura dorso	long radius	- rear opening	9,800
NOTA: Le curve serie LBHF e LBHS sono in fase di certificazione.
NOTE: Elbows type LBHF and LBHS are under certification.

G2 - 141
