fcinfensors

CORNING

by Corning

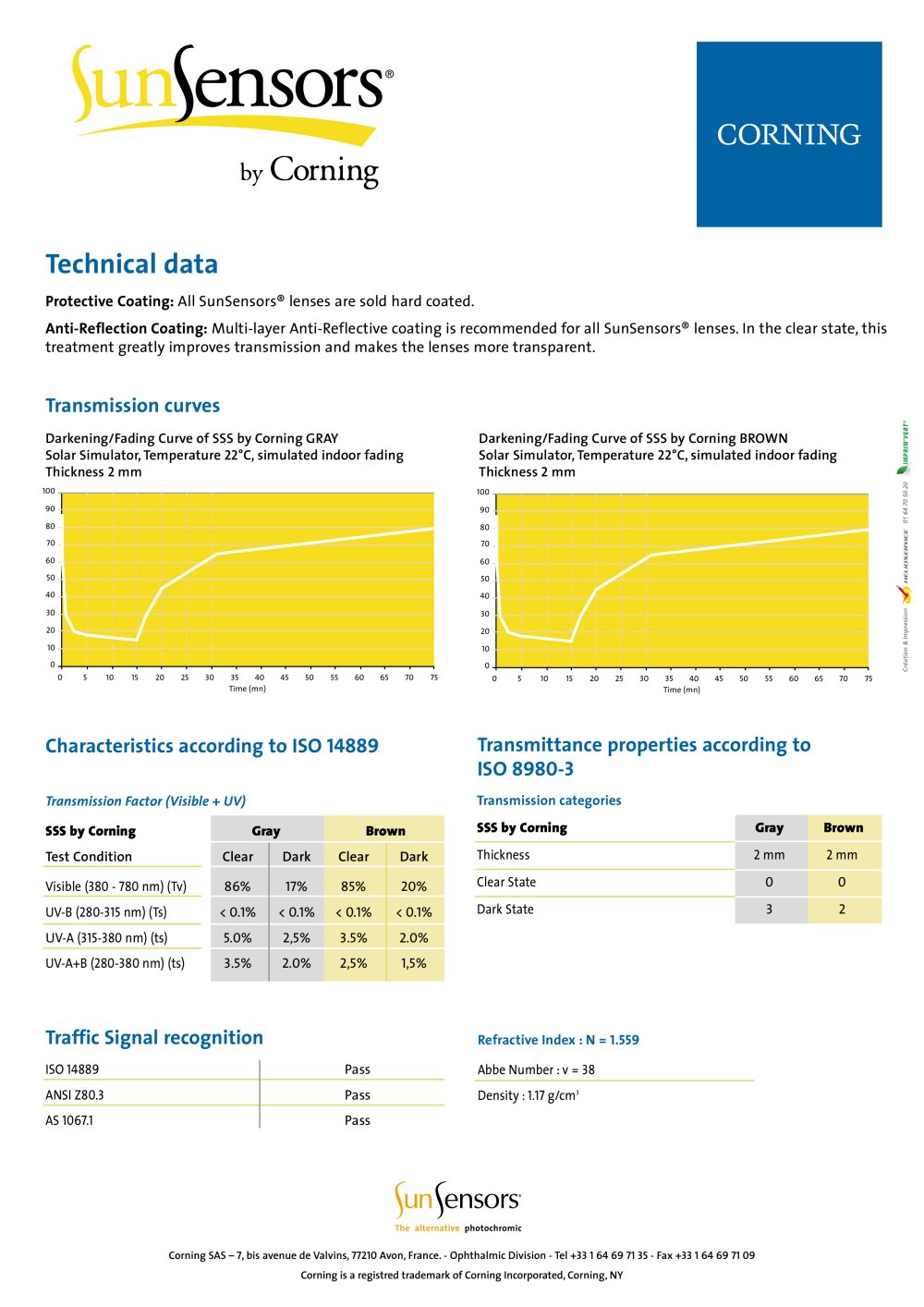

Technical data

Protective Coating: All SunSensors® lenses are sold hard coated.

Anti-Reflection Coating: Multi-layer Anti-Reflective coating is recommended for all SunSensors® lenses. In the clear state, this treatment greatly improves transmission and makes the lenses more transparent.

Transmission curves

Darkening/Fading Curve of SSS by Corning GRAY

Solar Simulator, Temperature 22°C, simulated indoor fading

Thickness 2 mm

Darkening/Fading Curve of SSS by Corning BROWN

Solar Simulator, Temperature 22°C, simulated indoor fading

Thickness 2 mm

100 90 80 70 60 50 40 30 20

10 0

100 90 80 70 60 50 40 30 20 10 0


	!



	I
	l
	l
	i
	I
	1

10 15 20 25 30

35 40 Time (mn)

45 50 55 60 65 70 75

10 15 20 25 30

35 40

Time (mn)

45 50 55 60 65 70 75

Transmittance properties according to

Characteristics according to ISO 14889

Transmission Factor (Visible + UV)

SSS by Corning Gray Brown


	ISO 8980-3
	Transmission categories
	SSS by Corning	Gray Brown
	Thickness	2 mm 2 mm
	Clear State	0 0
	Dark State	3 2


Test Condition	Clear	Dark	Clear	Dark
Visible (380 - 780 nm) (Tv)	86%	17%	85%	20%
UV-B (280-315 nm) (Ts)	< 0.1%	< 0.1%	< 0.1%	< 0.1%
UV-A (315-380 nm) (ts)	5.0%	2,5%	3.5%	2.0%
UV-A+B (280-380 nm) (ts)	3.5%	2.0%	2,5%	1,5%

Traffic Signal recognition

Refractive Index : N = 1.559

Abbe Number : v = 38

ISO 14889 ANSI Z80.3 AS 1067.1

Pass Pass Pass

Density : 1.17 g/cm³

$un Censors*

The alternative photochromic

Corning SAS - 7, bis avenue de Valvins, 77210 Avon, France. - Ophthalmic Division - Tel +33 1 64 69 71 35 - Fax +33 1 64 69 71 09 Corning is a registred trademark of Corning Incorporated, Corning, NY
