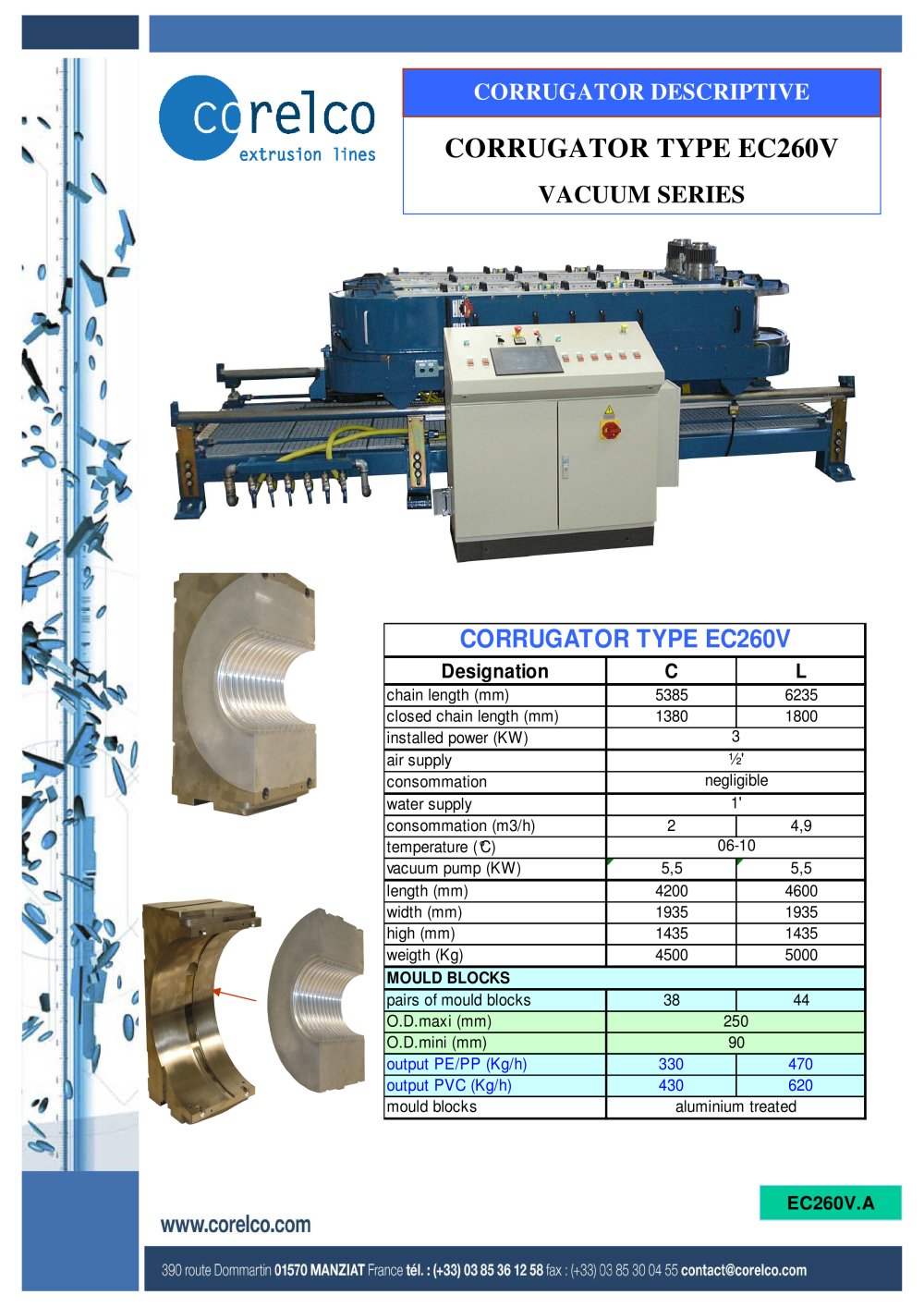

CORRUGATOR TYPE EC260V


	Designation	C	L
	chain length (mm)	5385	6235
	closed chain length (mm)	1380	1800
	installed power (KW)	3
	air supply	/'
	consommation	negligible
	water supply	1'
	consommation (m3/h)	2	4,9 \|
	temperature (C)	06-10 \|
	vacuum pump (KW)	5,5	5,5
	length (mm)	4200	4600
	width (mm)	1935	1935
	high (mm)	1435	1435
	weigth (Kg)	4500	5000
	MOULD BLOCKS
	pairs of mould blocks	38	44 \|
	O.D.maxi (mm)	250
	O.D.mini (mm)	90
	output PE/PP (Kg/h)	330	470
	output PVC (Kg/h)	430	620
	mould blocks	aluminium treated

EC260V.A
