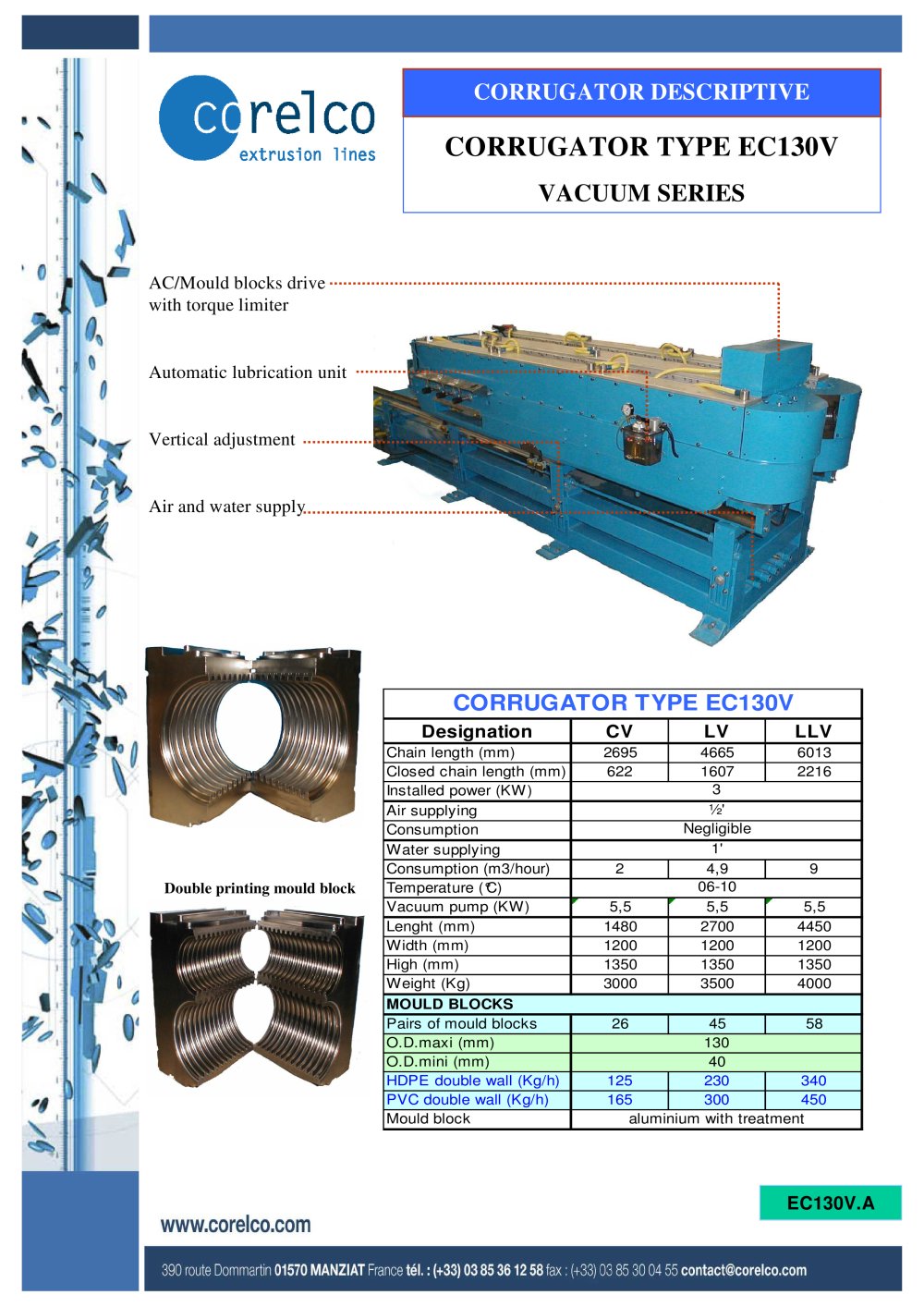

CORRUGATOR DESCRIPTIVE
CORRUGATOR TYPE EC130V VACUUM SERIES
AC/Mould blocks drive with torque limiter
Automatic lubrication unit
Vertical adjustment
Air and water supply
Designation
CV
LV
LLV
Chain length (mm)
2695
4665
6013
Closed chain length (mm)
622
1607
2216
Installed power (KW)
3
Air supplying
/'
Consumption
Negligible
Water supplying
1'
Consumption (m3/hour)
2
4,9
9
Temperature (C)
06-10 1
Vacuum pump (KW)
5,5
5,5
5,5
Lenght (mm)
1480
2700
4450
Width (mm)
1200
1200
1200
High (mm)
1350
1350
1350
Weight (Kg)
3000
3500
4000
MOULD BLOCKS |
Pairs of mould blocks
26
45
58 1
O.D.maxi (mm)
130
O.D.mini (mm)
40
HDPE double wall (Kg/h)
125
230
340
PVC double wall (Kg/h)
165
300
450
Mould block
aluminium with treatment
Double printing mould block
EC130V.A
www.corelco.com
