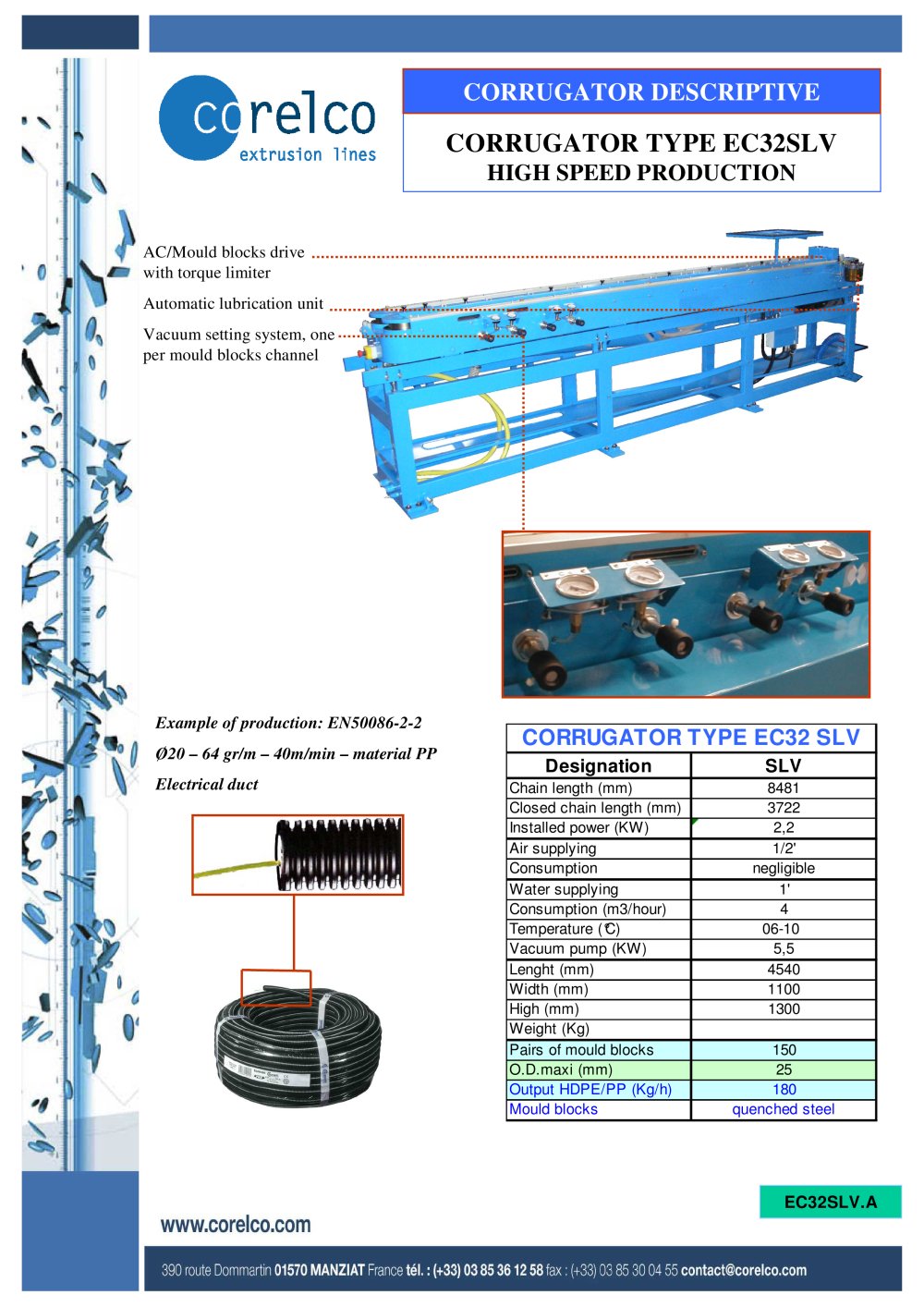

CORRUGATOR TYPE EC32SLV
HIGH SPEED PRODUCTION
EC32SLV.A
CORRUGATOR DESCRIPTIVE
AC/Mould blocks drive
with torque limiter
Automatic lubrication unit
Vacuum setting system, one
per mould blocks channel
Example of production: EN50086-2-2
Ř20 – 64 gr/m – 40m/min – material PP
Electrical duct
Designation SLV
Chain length (mm) 8481
Closed chain length (mm) 3722
Installed power (KW) 2,2
Air supplying 1/2'
Consumption negligible
Water supplying 1'
Consumption (m3/hour) 4
Temperature (°C) 06-10
Vacuum pump (KW) 5,5
Lenght (mm) 4540
Width (mm) 1100
High (mm) 1300
Weight (Kg)
Pairs of mould blocks 150
O.D.maxi (mm) 25
Output HDPE/PP (Kg/h) 180
Mould blocks quenched steel
CORRUGATOR TYPE EC32 SLV
