DIVERTER VALVES H KOQ U Ct M n e. Com ponents. GATE VALVES SPECIAL COMPONENTS compounding & extrusion materials handling service confidence through partnership

KEY COMPONENTS, DEVELOPED AND PRODUCED IN HOUSE Components from Coperion prove their high functionality worldwide in a large number of bulk handling plants. The experience in the field flows straight into the develop- ment of our components. Therefore it is guaranteed, that optimized components at the highest technical level are available for the demanding applications of our customers. Even plastics, chemical products, food or minerals - we have for every application the suitable solution: ROTARY VALVES For feeding bulk materials into pneumatic conveying systems and discharging out of hoppers...

04 >> Coperion Components. INDEX | ROTARY VALVES | DIVERTER VALVES | SPECIAL COMPONENTS THE COMPLETE PRODUCT LINE FOR EFFICIENT PLANTS. ROTARY VALVES FOR POWDERS 6 ZXQ ROTARY VALVE 3.5 BAR 18 ZVH Blow-through valve for pneumatic conveying 10 ZAQ ROTARY VALVE 3.5 BAR ZXD ROTARY VALVE 1.5 BAR 20 ZVB ZRD ROTARY VALVE 1.5 BAR 22 ZKD ROTARY VALVE 1.5 BAR 38 ZVD ROTARY VALVE 1.5 BAR 24 ZGM ROTARY VALVE 1.5 BAR 40 42 HYGIENIC COMPONENTS DUROPROTECT® – WEAR RESISTANT COMPONENTS ACCESSORIES Leakage gas collector, feeding shoe, Rotorconveyor®, extraction device UNIVERSAL GATE VALVE 1.5 BARG Shut-off gate...

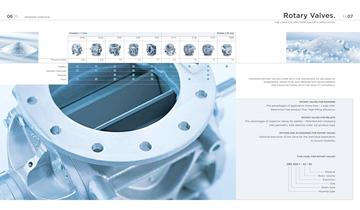

06 >> Rotary Valves. PROGRAM OVERVIEW THE COMPLETE SPECTRUM FOR EACH APPLICATION. Powders < 1 mm Pellets 1-10 mm ZXQ Pressure [bar] ZAQ ZXD ZRD ZKD ZVH ZVB ZVD ZGM 3.5 3.5 1.5 1.5 1.5 3.5 1.5 1.5 1.5 Plastics General Chemicals Minerals Food COPERION ROTARY VALVES COME WITH THE ASSURANCE OF DECADES OF EXPERIENCE, KNOW-HOW AND PROPRIETARY DEVELOPMENT, AND MANUFACTURING WITH TOP QUALITY MATERIALS. ROTARY VALVES FOR POWDERS The advantages of application know-how – Large inlet. Restriction free product flow. High filling efficiency. ROTARY VALVES FOR PELLETS The advantages of Coperion valves for pellets...

ROTARY VALVE FOR POWDERS I ZXQ PRESSURE RANGE PRESSURE SURGE PROOF LARGE INLET OUTBOARD BEARINGS BLOW-THROUGH CHANNEL 3.5 bar (51 psi), system and differential pressure 10 bar (145 psi), due to heavy duty design Open end high pressure rotor with 14 pockets without additional sealing system Without restriction of the cross section for the highest capacity Separated from product by purged seal arrangement and product drop out opening Optimal pocket sweeping at low pressure drop _ Chamfered blades _ Suitable for Ex-zones (ATEX) _ Heated housing by steam or thermo-oil up to max. 220°C _ Chain drive/direct...

ROTARY VALVE FOR POWDERS I ZAQ PRESSURE RANGE PRESSURE SURGE PROOF LARGE INLET/OUTLET EXTERNAL BEARINGS 3.5 bar (51 psi), system and differential pressure 10 bar (145 psi), due to heavy duty design Open end high pressure rotor with 14 pockets without additional sealing system Largest cross section for highest product capacity at low leakage gas Separated form product by purged seal arrangement and product drop out opening _ Chamfered blades _ Suitable for Ex-zones (ATEX) _ Heated housing with steam or thermo-oil up to max. 220°C _ Chain drive/direct drive _ Feeding shoe High pressure Q-Rotor...

ROTARY VALVE FOR POWDERS I ZXD PRESSURE RANGE PRESSURE SURGE PROOF ATEX (OPTIONAL) LARGE INLET OUTBOARD BEARINGS BLOW-THROUGH CHANNEL 1.5 bar (21 psi), system and differential pressure 10 bar (145 psi), due to heavy duty design Usable in Ex-Zones and flameproof ST2 (protection system) Without restriction of the cross section for the highest capacity Separated from product by purged seal arrangement and drop out opening Optimal pocket sweeping at low pressure drop _ Quick coupling with extraction device _ Chamfered blades _ Scraper blades _ Wear protection _ Hygienic version _ Chain drive/direct...

ROTARY VALVE FOR POWDERS I ZRD PRESSURE RANGE PRESSURE SURGE PROOF ATEX (OPTIONAL) LARGE INLET/OUTLET OUTBOARD BEARINGS 1.5 bar (21 psi), system and differential pressure 10 bar (145 psi), due to heavy duty design Usable in Ex-Zones and flameproof ST2 (protection system) Without restriction of the cross section for the highest capacity Separated from product by purged seal and drop out opening _ Quick coupling with extraction device _ Chamfered blades _ Rotor with shallow pockets _ Scraper blades Wear protection Hygienic version Chain drive/direct drive Feeding shoe Large inlet without restriction...

ROTARY VALVE FOR POWDERS I ZKD PRESSURE RANGE PRESSURE SURGE PROOF ATEX (OPTIONAL) OUTBOARD BEARINGS 1.5 bar (21 psi), system and differential pressure 10 bar (145 psi), due to heavy duty design Usable in Ex-Zones and flameproof ST2 (protection system) Rectangular design: shape of housing corresponds to shape of rotor Separated from product by purged seal arrangement and product drop out opening _ Quick coupling with extraction device _ Chamfered blades _ Rotor with shallow pockets _ Scraper blades Wear protection High temperature version Chain drive/direct drive Feeding shoe Large rectangular...

ROTARY VALVE FOR PELLETS I ZVH PRESSURE RANGE PRESSURE SURGE PROOF ATEX (OPTIONAL) 3.5 bar (51 psi), system and differential pressure 10 bar (145 psi), due to heavy duty design Anti-chopping inlet geometry (patented) for safe starting below full product column High pressure rotor with 12 pockets and axial seals High capacity due to product flow into vented pockets via housing vent _ Quick coupling with extraction device _ Rotor with shallow pockets _ ZG version (pellet deflection) _ Wear protection _ High temperature version Heated housing with steam or Chain drive/direct drive Feeding shoe for...

ROTARY VALVE FOR PELLETS I ZVB PRESSURE RANGE PRESSURE SURGE PROOF ATEX (OPTIONAL) BODY VENT 1.5 bar (21 psi), system and differential pressure 10 bar (145 psi), due to heavy duty design Anti-chopping inlet geometry (patented) for safe starting below full product column High filling efficiency by internal leakage gas venting _ Quick coupling with extraction device _ Rotor with shallow pockets _ ZG version (pellet deflection) _ Wear protection High temperature version Chain drive/direct drive Feeding shoe Shown without drive Drive with parallel helical gear motor With chain drive • Drilled according...
