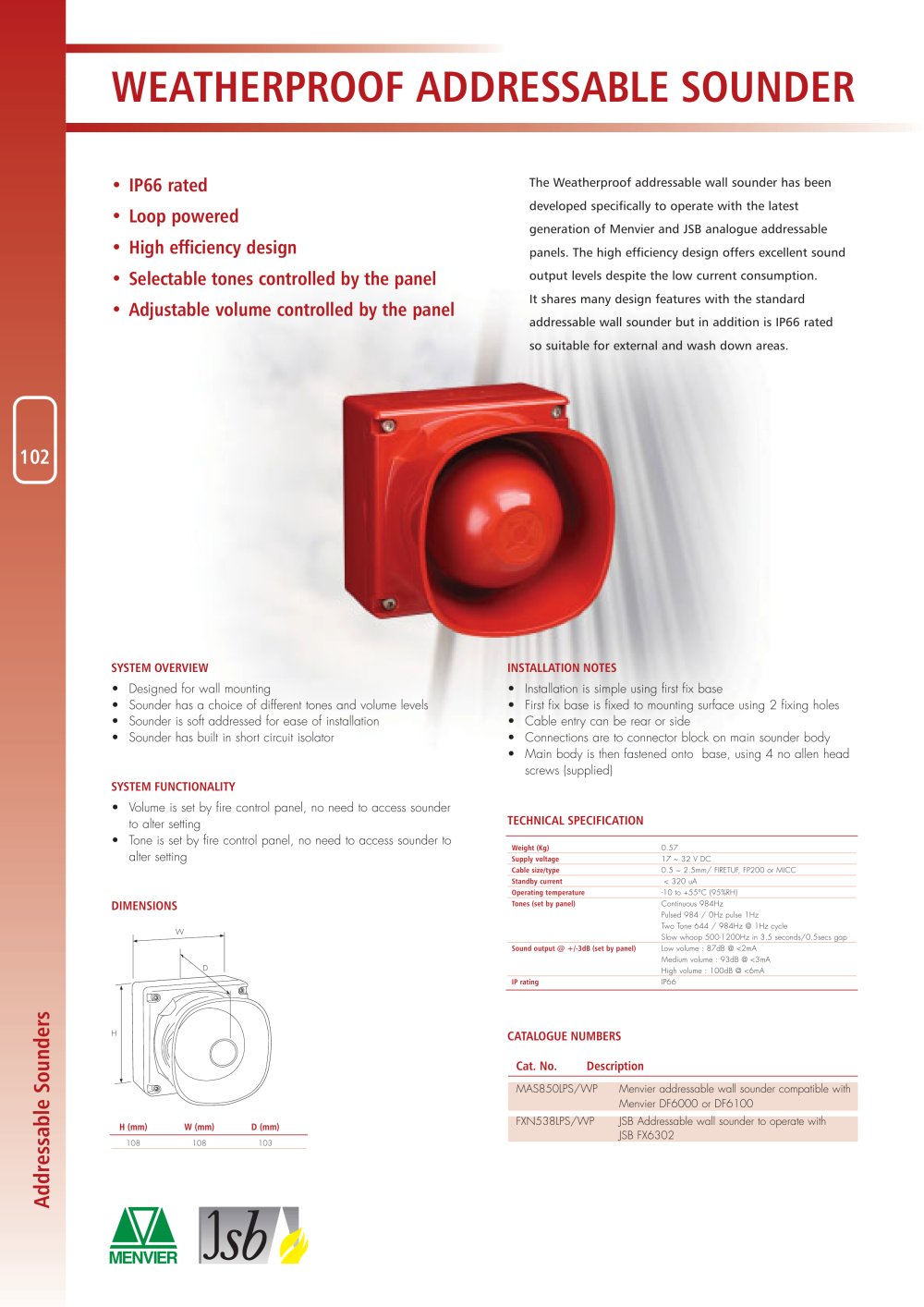

WEATHERPROOF ADDRESSABLESOUNDER

•IP66 rated•Loop powered •High efficiency design •Selectable tones controlled by the panel •Adjustable volume controlled by the panel

The Weatherproof addressable wall sounder has beendeveloped specifically to operate with the latest generation of Menvier and JSB analogue addressable panels. The high efficiency design offers excellent sound output levels despite the low current consumption. It shares many design features with the standard addressable wall sounder but in addition is IP66 rated so suitable for external and wash down areas.

102

SYSTEMOVERVIEW INSTALLATIONNOTES •Designed for wall mounting•Sounder has a choice of different tones and volume levels•Sounder is soft addressed for ease of installation•Sounder has built in short circuit isolator •Installation is simple using first fix base•First fix base is fixed to mounting surface using 2 fixing holes•Cable entry can be rear or side•Connections are to connector block on main sounder body•Main body is then fastened onto base, using 4 no allen headscrews (supplied) SYSTEMFUNCTIONALITY •Volume is set by fire control panel, no need to access sounder to alter setting•Tone is set by fire control panel, no need to access sounder to alter setting TECHNICAL SPECIFICATION

Weight (Kg) 0.57 Supply voltage 17 ~ 32 V DC Cable size/type 0.5 ~ 2.5mm/ FIRETUF, FP200 or MICC Standby current < 320 uA Operating temperature -10 to +55°C (95%RH)

DIMENSIONS

Tones (set by panel) Continuous 984HzPulsed 984 / 0Hz pulse 1Hz Two Tone 644 / 984Hz @ 1Hz cycle WD Slow whoop 500-1200Hz in 3.5 seconds/0.5secs gap Sound output @ +/-3dB (set by panel) Low volume : 87dB @ <2mAMedium volume : 93dB @ <3mA High volume : 100dB @ <6mA IP rating IP66 H

CATALOGUENUMBERSCat. No.Description

MAS850LPS/WPMenvier addressable wall sounder compatible with Menvier DF6000 or DF6100FXN538LPS/WPJSB Addressable wall sounder to operate withJSB FX6302

H (mm)W (mm)D (mm)

108108103
Addressable Sounders
