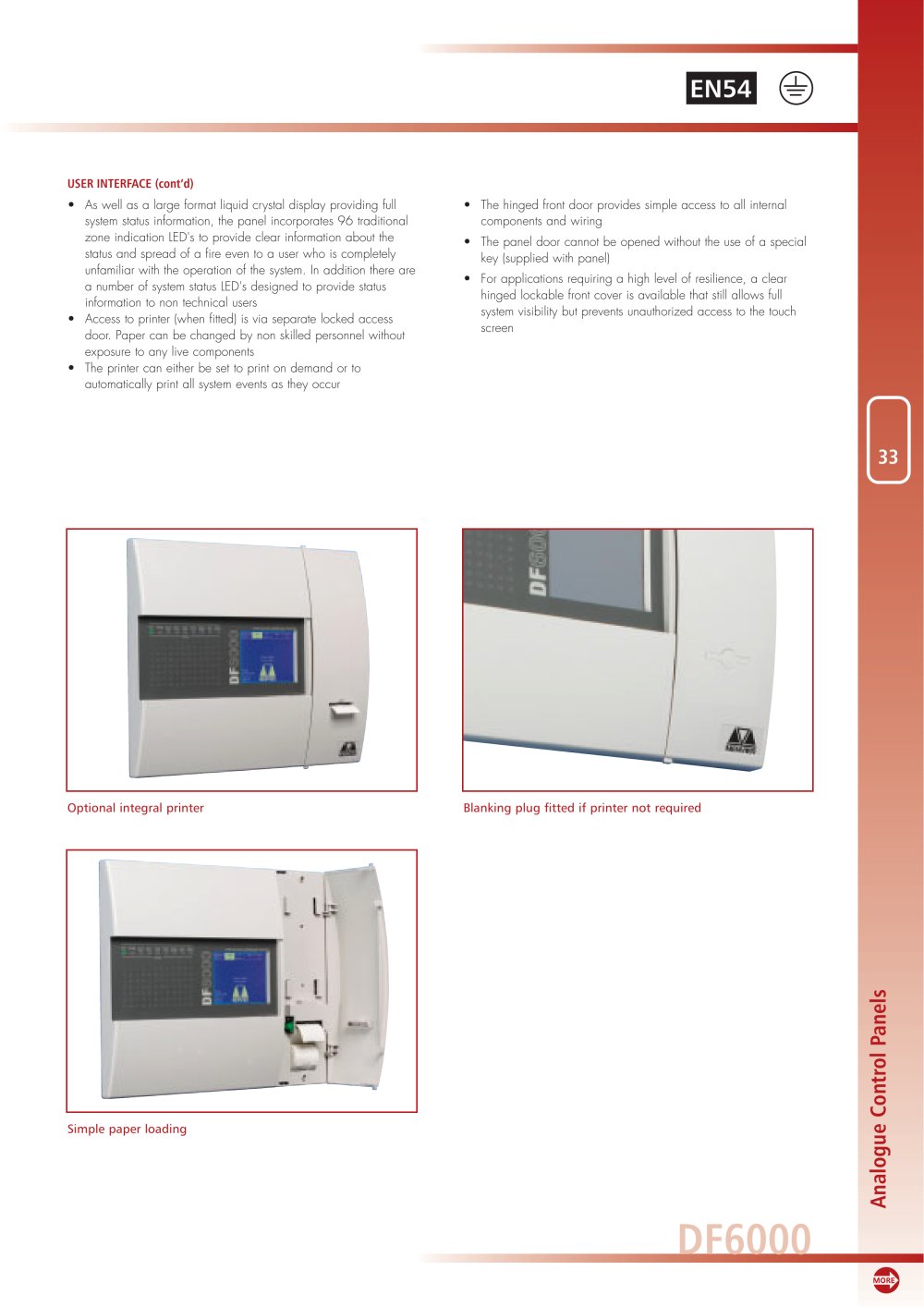

USERINTERFACE (cont’d) •As well as a large format liquid industrial crystal display providing full system status information, the panel incorporates 96 traditional zone indication LED's to provide clear information about the status and spread of a fire even to a user who is completely unfamiliar with the operation of the system. In addition there area number of system status LED's designed to provide status information to non technical users•Access to printer (when fitted) is via separate locked access door. Paper can be changed by non skilled personnel without exposure to any live components•The printer can either be set to print on demand or to automatically print all system events as they occur •The hinged front door provides simple access to all internal components and wiring•The panel door cannot be opened without the use of a special key (supplied with panel)•For applications requiring a high level of resilience, a clear hinged lockable front cover is available that industrial still allows full system visibility but prevents unauthorized access to the touch screen

33

Optional integral printer Blanking plug fitted if printer not required Simple paper loading
Analogue Control Panels

DF6000
