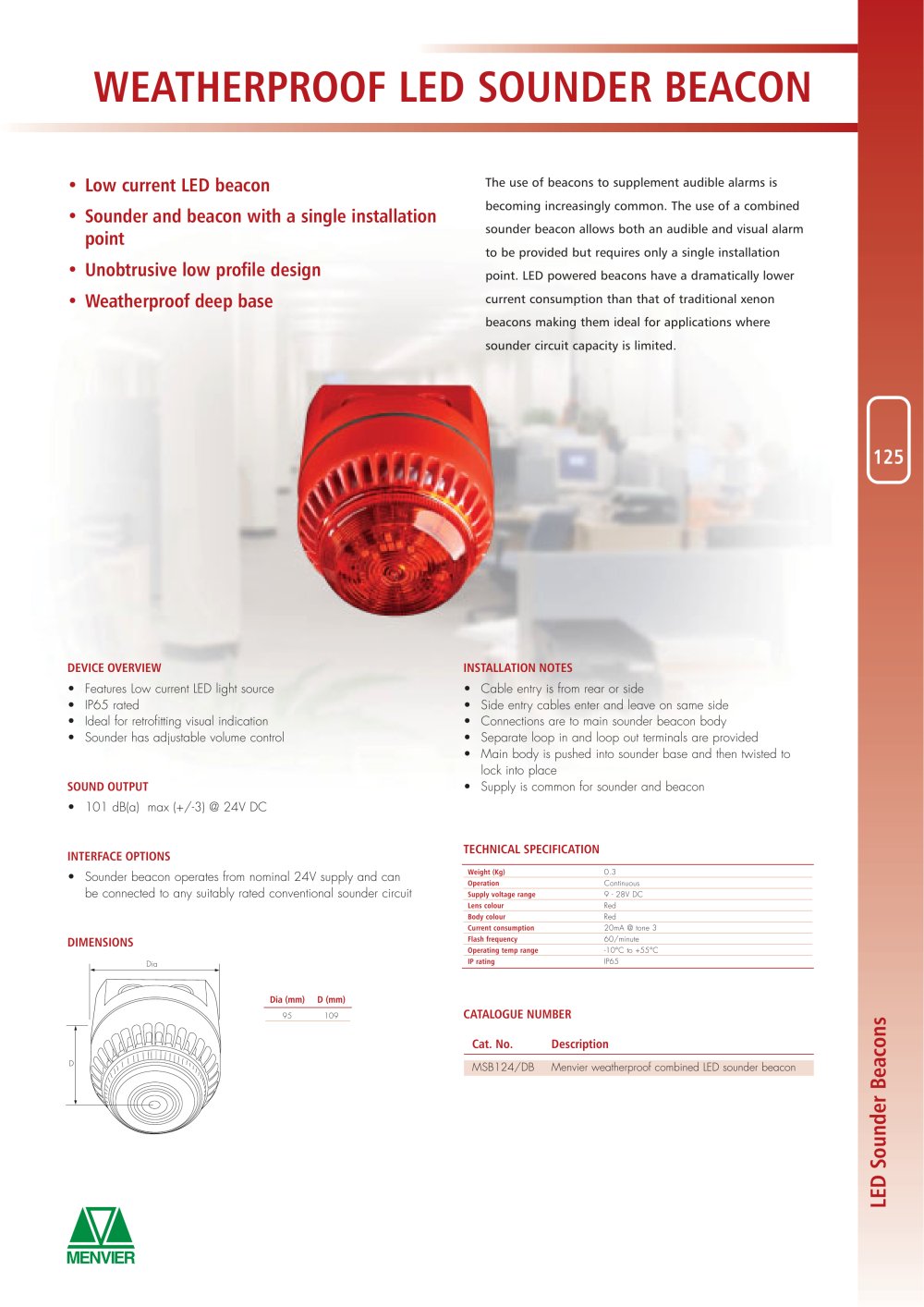

WEATHERPROOF LED SOUNDER BEACON

•Low current Led beacon•Sounder and beacon with a single installation point•Unobtrusive low profile design •Weatherproof deep base

The use of industrial beacons to supplement audible alarms isbecoming increasingly common. The use of a combined sounder beacon allows both an audible and visual alarm to be provided but requires only a single installation point. LED powered beacons have a dramatically lower current consumption than that of traditional xenon beacons making them ideal for applications where sounder circuit capacity is limited.

125

DEVICEOVERVIEW INSTALLATIONNOTES •Features Low current LED light source•IP65 rated •Ideal for retrofitting visual indication •Sounder has adjustable volume control •Cable entry is from rear or side•Side entry cables enter and leave on same side•Connections are to main sounder beacon body•Separate loop in and loop out terminals are provided•Main body is pushed into sounder base and then twisted to lock into place•Supply is common for sounder and beacon SOUNDOUTPUT •101 dB(a) max (+/-3) @ 24V DC INTERFACEOPTIONS •Sounder beacon operates from nominal 24V supply and can be connected to any suitably rated conventional sounder circuit TECHNICAL SPECIFICATION

Weight (Kg) 0.3 Operation Continuous Supply voltage range 9 - 28V DC

DIMENSIONS

Lens colour Red Body colour Red Current consumption 20mA @ tone 3 Flash frequency 60/minute Operating temp range -10°C to +55°C Dia IP rating IP65

Dia (mm)D (mm)

95109

CATALOGUENUMBERCat. No.Description

D

MSB124/DBMenvier weatherproof combined LED sounder beacon

LEDSounder Beacons
