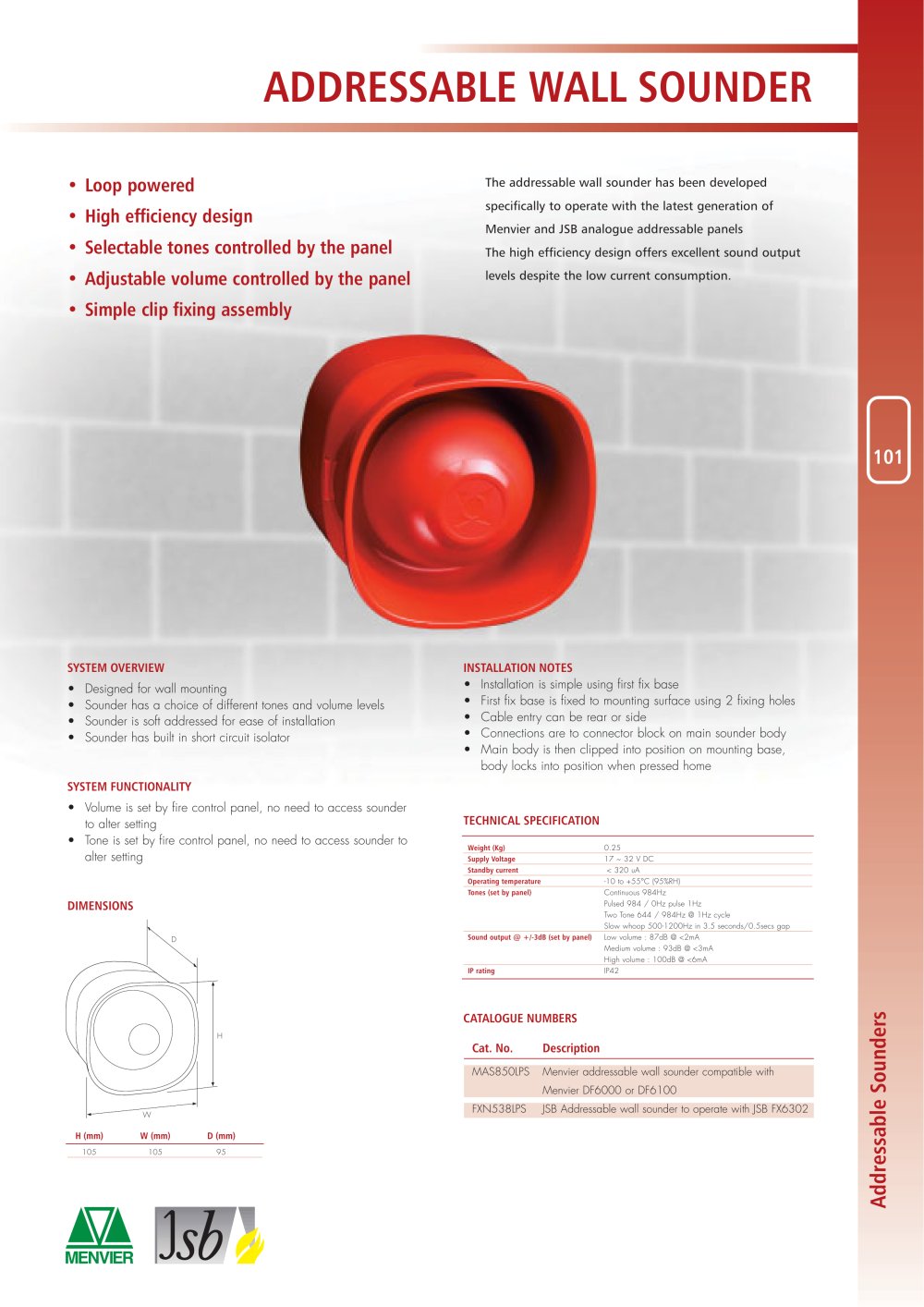

ADDRESSABLEWALLSOUNDER

•Loop powered•High efficiency design •Selectable tones controlled by the panel •Adjustable volume controlled by the panel •Simple clip fixing assembly

The addressable wall sounder has been developedspecifically to operate with the latest generation of Menvier and JSB analogue addressable panels The high efficiency design offers excellent sound output levels despite the low current consumption.

101

SYSTEMOVERVIEW INSTALLATIONNOTES •Designed for wall mounting•Sounder has a choice of different tones and volume levels•Sounder is soft addressed for ease of installation•Sounder has built in short circuit isolator •Installation is simple using first fix base•First fix base is fixed to mounting surface using 2 fixing holes•Cable entry can be rear or side•Connections are to connector block on main sounder body•Main body is then clipped into position on mounting base, body locks into position when pressed home SYSTEMFUNCTIONALITY •Volume is set by fire control panel, no need to access sounder to alter setting•Tone is set by fire control panel, no need to access sounder to alter setting TECHNICAL SPECIFICATION

Weight (Kg) 0.25 Supply Voltage 17 ~ 32 V DC Standby current < 320 uA Operating temperature -10 to +55°C (95%RH) Tones (set by panel) Continuous 984HzPulsed 984 / 0Hz pulse 1Hz Two Tone 644 / 984Hz @ 1Hz cycle

DIMENSIONS

Slow whoop 500-1200Hz in 3.5 seconds/0.5secs gap Sound output @ +/-3dB (set by panel) Low volume : 87dB @ <2mAMedium volume : 93dB @ <3mA High volume : 100dB @ <6mA IP rating IP42

CATALOGUENUMBERSCat. No.Description

MAS850LPSMenvier addressable wall sounder compatible with Menvier DF6000 or DF6100FXN538LPSJSB Addressable wall sounder to operate with JSB FX6302

W D

H (mm)W (mm)D (mm)

10510595
Addressable Sounders
