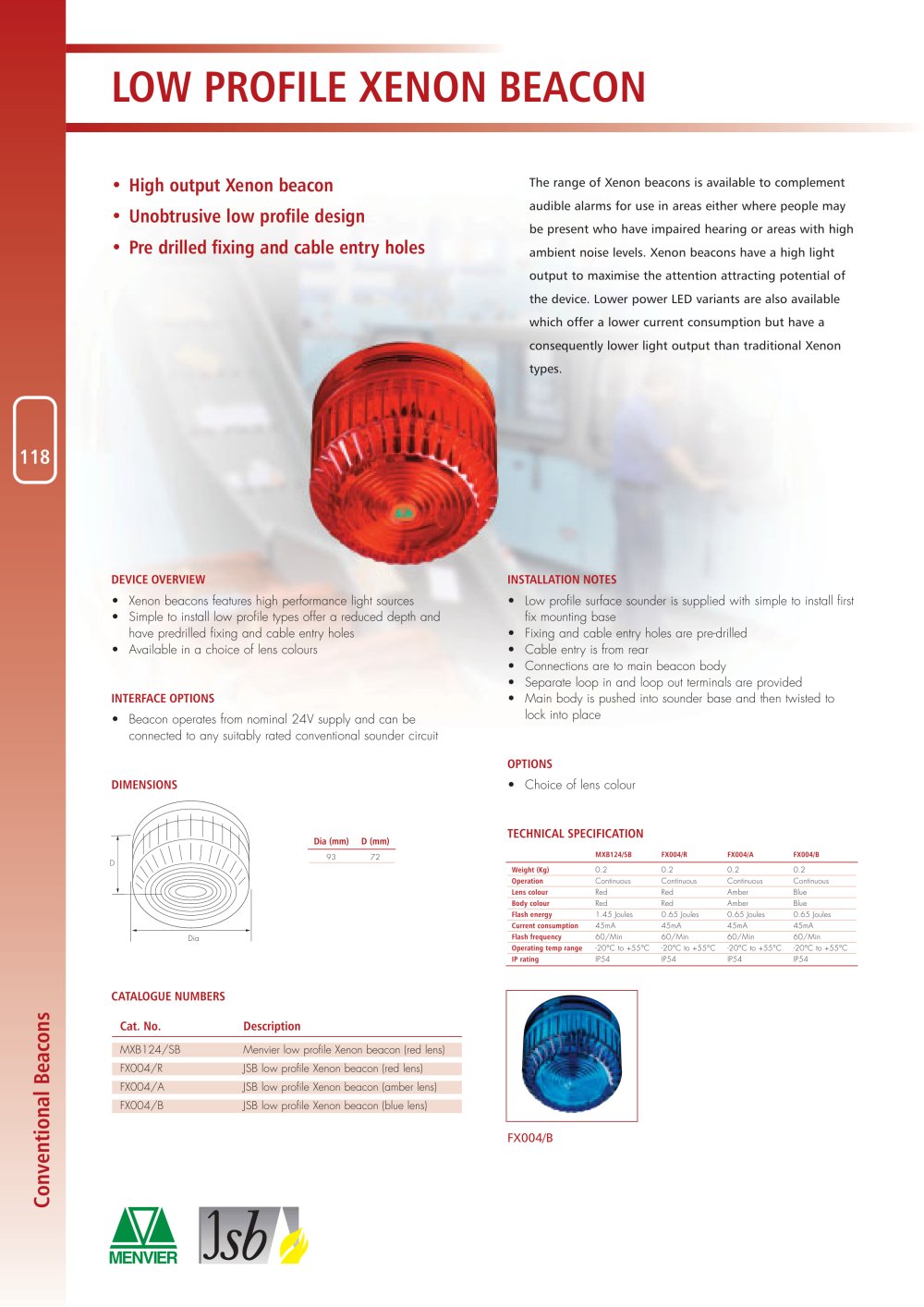

BEACON
High output Xenon beacon
Unobtrusive low profile design
Pre drilled fixing and cable entry holes
The range of Xenon beacons is available to complement audible alarms for use in areas either where people may be present who have impaired hearing or areas with high ambient noise levels. Xenon beacons have a high light output to maximise the attention attracting potential of the device. Lower power LED variants are also available which offer a lower current consumption but have a consequently lower light output than traditional Xenon types.
M1J
ft
DEVICE OVERVIEW
INSTALLATION NOTES
• Low profile surface sounder is supplied with simple to install first fix mounting base
• Fixing and cable entry holes are pre-drilled
• Cable entry is from rear
• Connections are to main beacon body
• Separate loop in and loop out terminals are provided
• Main body is pushed into sounder base and then twisted to lock into place
• Xenon beacons features high performance industrial light sources
• Simple to install low profile types offer a reduced depth and have predrilled fixing and cable entry holes
• Available in a choice of lens colours
INTERFACE OPTIONS
• Beacon operates from nominal 24V supply and can be connected to any suitably rated conventional sounder circuit
OPTIONS
• Choice of lens colour
TECHNICAL SPECIFICATION
DIMENSIONS
Dia (mm) D (mm)
93 72
MXB124/SB
FX004/R
FX004/A
FX004/B
Weight (Kg)
0.2
0.2
0.2
0.2
Operation
Continuous
Continuous
Continuous
Continuous
Lens colour
Red
Red
Amber
Blue
Body colour
Red
Red
Amber
Blue
Flash energy
1.45 Joules
0.65 Joules
0.65 Joules
0.65 Joules
Current consumption
45 mA
45 mA
45mA
45mA
Flash frequency
60/Min
60/Min
60/Min
60/Min
Operating temp range
-20°C to +55°C
-20°C to +55°C
-20°C to +55°C
-20°C to +55°C
IP rating
IP54
IP54
IP54
IP54
CATALOGUE NUMBERS Cat. No. Description
MXB124/SB
Menvier
low profile Xenon beacon (red lens)
FX004/R
JSB low
profile Xenon beacon
(red lens)
FX004/A
JSB low
profile Xenon beacon
(amber lens)
FX004/B
JSB low
profile Xenon beacon
(blue lens)
FX004/B
