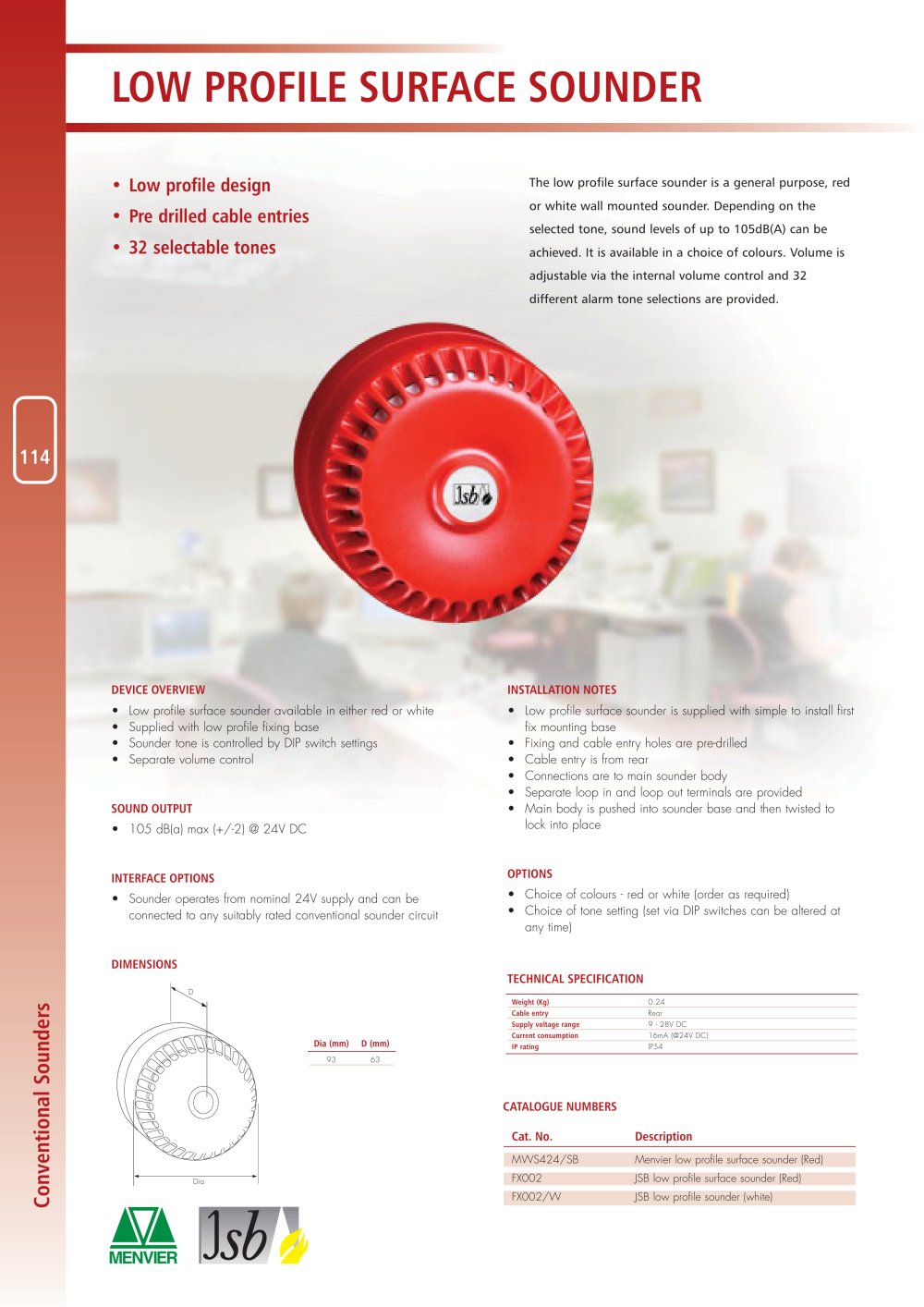

LOWPROFILESURFACESOUNDER

•Low profile design •Pre drilled cable entries •32 selectable tones

The low profile surface sounder is a general purpose, redor white wall mounted sounder. Depending on the selected tone, sound levels of up to 105dB(A) can be achieved. It is available in a choice of colours. Volume is adjustable via the internal volume control and 32 different alarm tone selections are provided. DEVICEOVERVIEW

114

•Low profile surface sounder available in either red or white•Supplied with low profile fixing base•Sounder tone is controlled by DIP switch settings•Separate volume control INSTALLATIONNOTES •Low profile surface sounder is supplied with simple to install firstfix mounting base•Fixing and cable entry holes are pre-drilled •Cable entry is from rear •Connections are to main sounder body•Separate loop in and loop out terminals are provided •Main body is pushed into sounder base and then twisted to lock into place SOUNDOUTPUT •105 dB(a) max (+/-2) @ 24V DC INTERFACEOPTIONS OPTIONS •Sounder operates from nominal 24V supply and can be connected to any suitably rated conventional sounder circuit •Choice of colours - red or white (order as required)•Choice of tone setting (set via DIP switches can be altered at any time) DIMENSIONS TECHNICAL SPECIFICATION
D Weight (Kg) 0.24 Cable entry Rear Supply voltage range 9 - 28V DC Current consumption 16mA (@24V DC) Dia (mm)D (mm) IP rating IP54 9363 CATALOGUENUMBERSCat. No.Description
MWS424/SBMenvier low profile surface sounder (Red) Dia FX002JSB low profile surface sounder (Red)FX002/W JSB low profile sounder (white) Conventional Sounders
