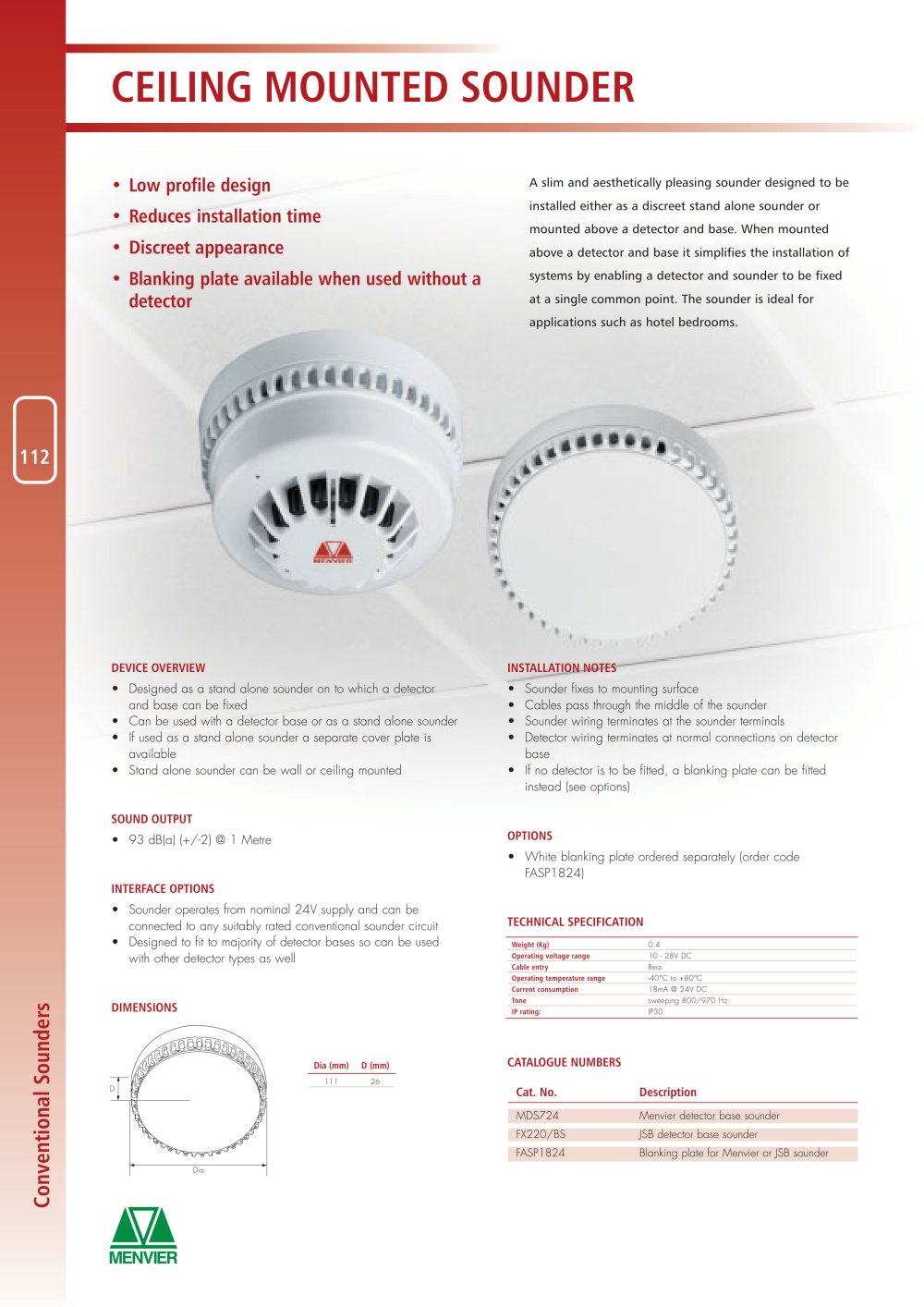

CEILINGMOUNTEDSOUNDER

•Low profile design•Reduces installation time •Discreet appearance •Blanking plate available when used without a detector

A slim and aesthetically pleasing sounder designed to beinstalled either as a discreet stand alone sounder or mounted above a detector and base. When mounted above a detector and base it simplifies the installation of systems by enabling a detector and sounder to be fixed at a single common point. The sounder is ideal for applications such as hotel bedrooms.

112

DEVICEOVERVIEW INSTALLATIONNOTES •Designed as a stand alone sounder on to which a detector and base can be fixed•Can be used with a detector base or as a stand alone sounder •If used as a stand alone sounder a separate cover plate is available•Stand alone sounder can be wall or ceiling mounted •Sounder fixes to mounting surface•Cables pass through the middle of the sounder•Sounder wiring terminates at the sounder terminals•Detector wiring terminates at normal connections on detector base•If no detector is to be fitted, a blanking plate can be fitted instead (see options) SOUNDOUTPUT •93 dB(a) (+/-2) @ 1 Metre OPTIONS INTERFACEOPTIONS •White blanking plate ordered separately (order code FASP1824) •Sounder operates from nominal 24V supply and can be connected to any suitably rated conventional sounder circuit•Designed to fit to majority of detector bases so can be used with other detector types as well TECHNICAL SPECIFICATION

Weight (Kg) 0.4 Operating voltage range 10 - 28V DC Cable entry Rear

DIMENSIONS

Operating temperature range -40°C to +80°C Current consumption 18mA @ 24V DC Tone sweeping 800/970 Hz IP rating: IP30

Dia (mm)D (mm)

CATALOGUENUMBERSCat. No.Description

11126 D

MDS724Menvier detector base sounder FX220/BSJSB detector base sounderFASP1824Blanking plate for Menvier or JSB sounder

Dia
Conventional Sounders
