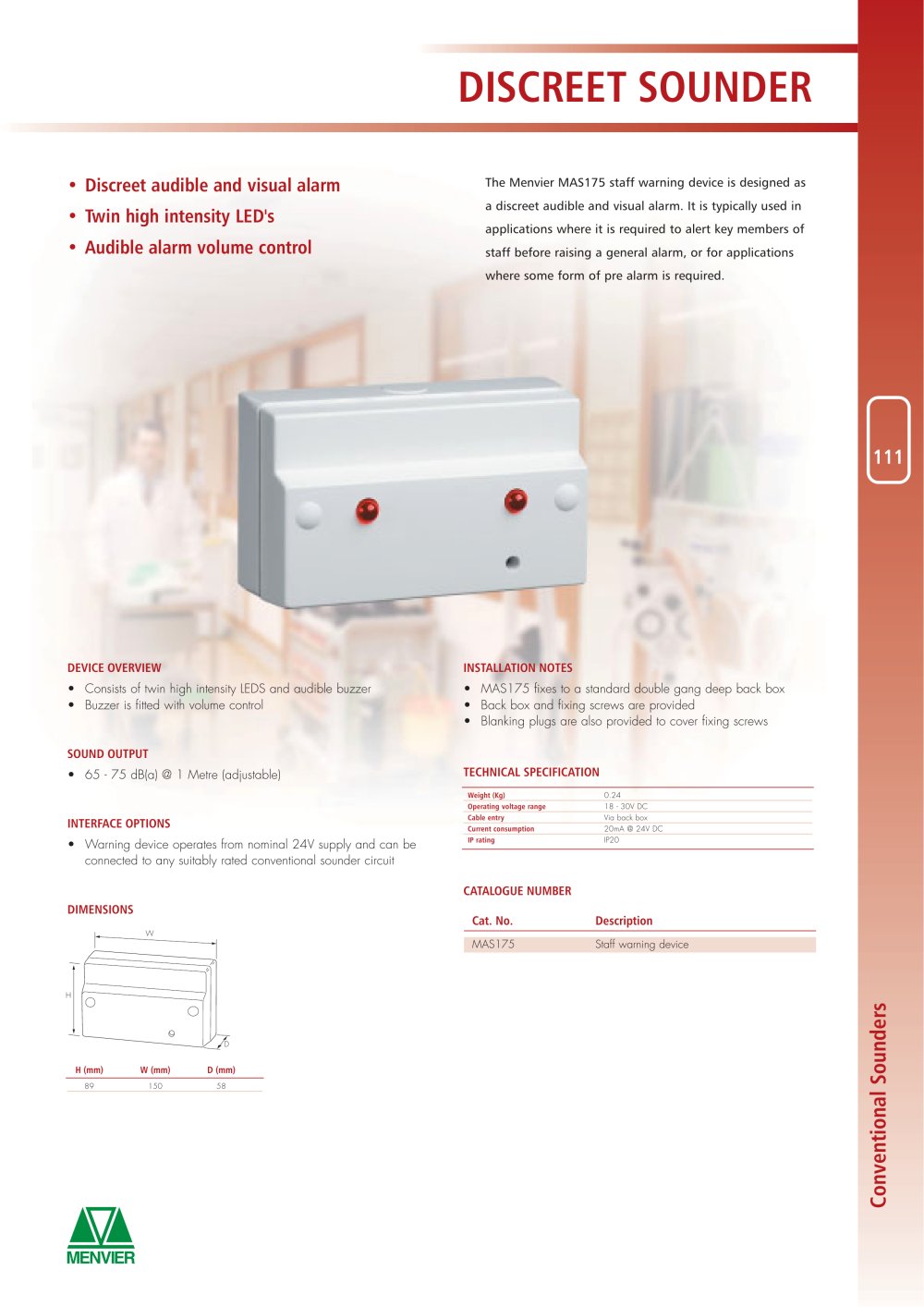

DISCREETSOUNDER

•Discreet audible and visual alarm•Twin high intensity LED's •Audible alarm volume control

The Menvier MAS175 staff warning device is designed asa discreet audible and visual alarm. It is typically used in applications where it is required to alert key members of staff before raising a general alarm, or for applications where some form of pre alarm is required.

111

DEVICEOVERVIEW INSTALLATIONNOTES •Consists of twin high intensity LEDS and audible buzzer•Buzzer is fitted with volume control •MAS175 fixes to a standard double gang deep back box•Back box and fixing screws are provided•Blanking plugs are also provided to cover fixing screws SOUNDOUTPUT •65 - 75 dB(a) @ 1 Metre (adjustable) INTERFACEOPTIONS •Warning device operates from nominal 24V supply and can beconnected to any suitably rated conventional sounder circuit DIMENSIONS TECHNICAL SPECIFICATION

Weight (Kg) 0.24 Operating voltage range 18 - 30V DC Cable entry Via back box Current consumption 20mA @ 24V DC IP rating IP20

CATALOGUENUMBERCat. No.Description

WHD

MAS175Staff warning device

H (mm)W (mm)D (mm)

8915058
Conventional Sounders
