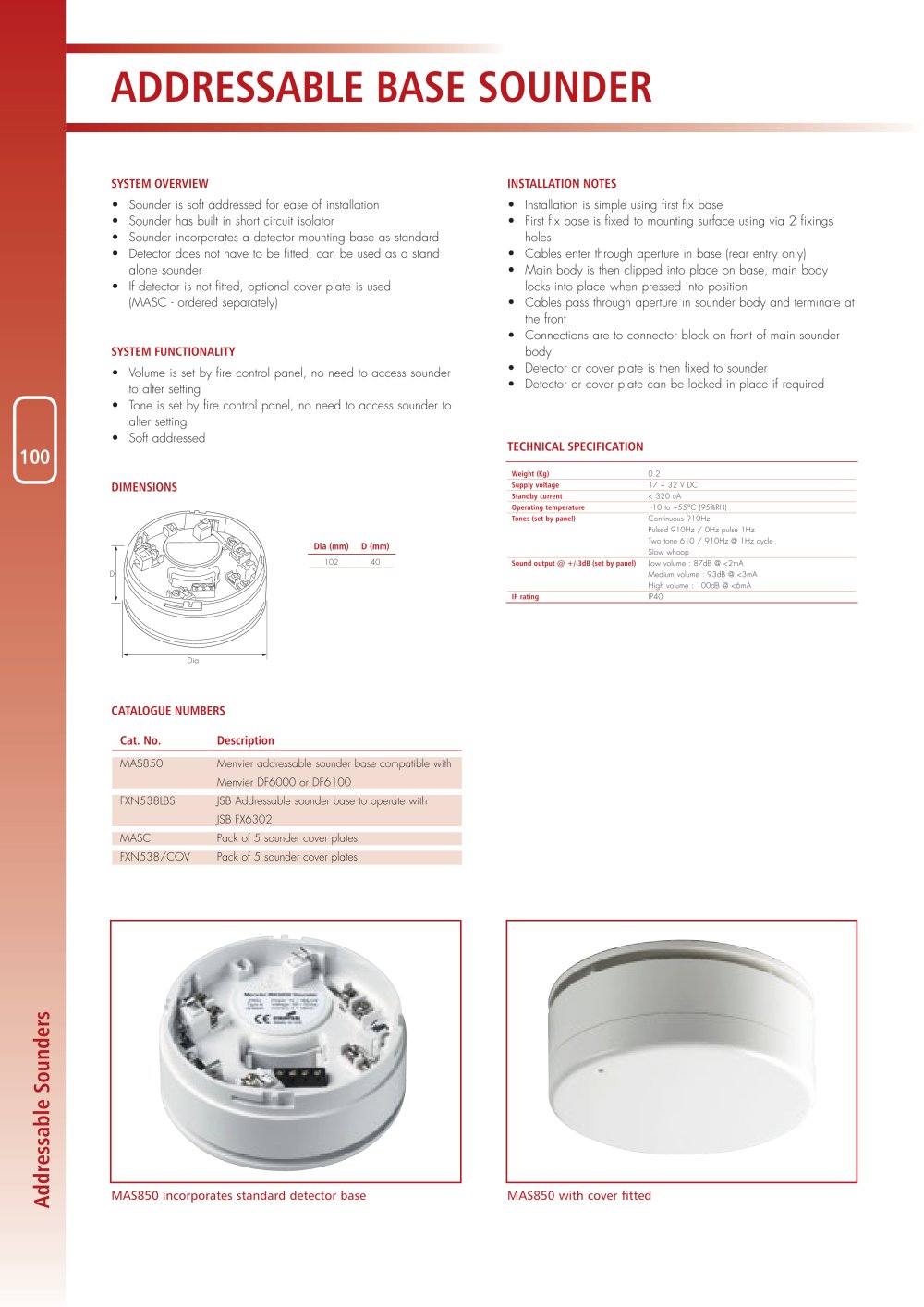

ADDRESSABLEBASE SOUNDER

SYSTEMOVERVIEW INSTALLATIONNOTES •Sounder is soft addressed for ease of installation•Sounder has built in short circuit isolator •Sounder incorporates a detector mounting base as standard•Detector does not have to be fitted, can be used as a stand alone sounder•If detector is not fitted, optional cover plate is used(MASC - ordered separately) •Installation is simple using first fix base•First fix base is fixed to mounting surface using via 2 fixings holes•Cables enter through aperture in base (rear entry only)•Main body is then clipped into place on base, main body locks into place when pressed into position•Cables pass through aperture in sounder body and terminate atthe front•Connections are to connector block on front of main sounder body•Detector or cover plate is then fixed to sounder•Detector or cover plate can be locked in place if required SYSTEMFUNCTIONALITY •Volume is set by fire control panel, no need to access sounder to alter setting•Tone is set by fire control panel, no need to access sounder to alter setting•Soft addressed

100

TECHNICAL SPECIFICATION

Weight (Kg) 0.2

DIMENSIONS

Supply voltage 17 ~ 32 V DC Standby current < 320 uA Operating temperature -10 to +55°C (95%RH) Tones (set by panel) Continuous 910HzPulsed 910Hz / 0Hz pulse 1Hz Two tone 610 / 910Hz @ 1Hz cycle

Dia (mm)D (mm)

Slow whoop 10240 Sound output @ +/-3dB (set by panel) Low volume : 87dB @ <2mAMedium volume : 93dB @ <3mA High volume : 100dB @ <6mA IP rating IP40 Dia D

CATALOGUENUMBERSCat. No.Description

MAS850Menvier addressable sounder base compatible with Menvier DF6000 or DF6100FXN538LBSJSB Addressable sounder base to operate with JSB FX6302 MASCPack of 5 sounder cover plates FXN538/COVPack of 5 sounder cover plates

Addressable Sounders

MAS850 incorporates standard detector base MAS850 with cover fitted
