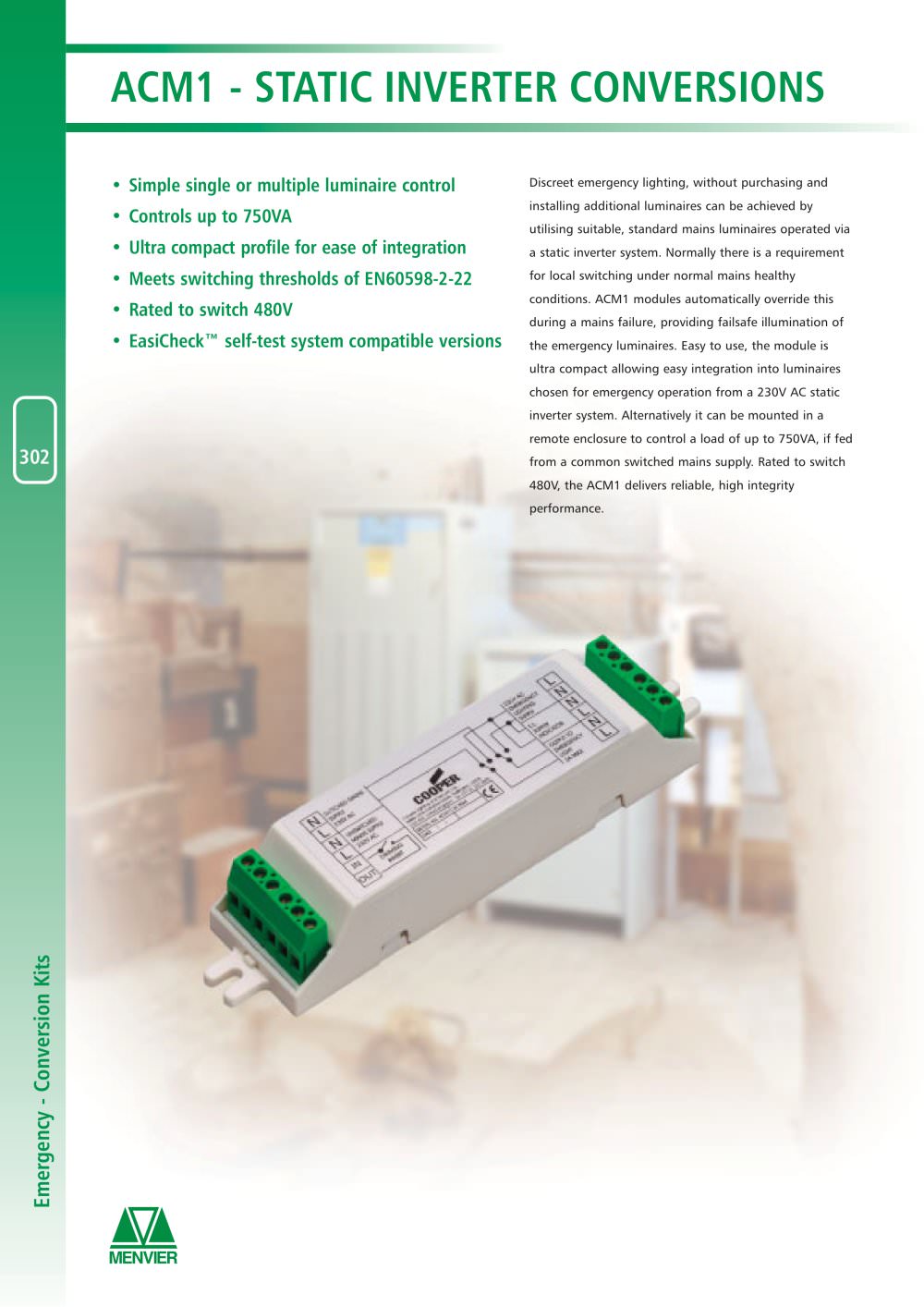

ACM1 - STATICINVERTER CONVERSIONS

•Simple single or multiple luminaire control•Controls up to 750VA •Ultra compact profile for ease of integration •Meets switching thresholds of EN60598-2-22 •Rated to switch 480V •EasiCheck™ self-test system compatible versions

Discreet emergency lighting, without purchasing andinstalling additional luminaires can be achieved by utilising suitable, standard mains luminaires operated via a static inverter system. Normally there is a requirement for local switching under normal mains healthy conditions. ACM1 modules automatically override this during a mains failure, providing failsafe illumination of the emergency luminaires. Easy to use, the module is ultra compact allowing easy integration into luminaires chosen for emergency operation from a 230V AC static inverter system. Alternatively it can be mounted in a remote enclosure to control a load of up to 750VA, if fed from a common switched mains supply. Rated to switch 480V, the ACM1 delivers reliable, high integrity performance.
