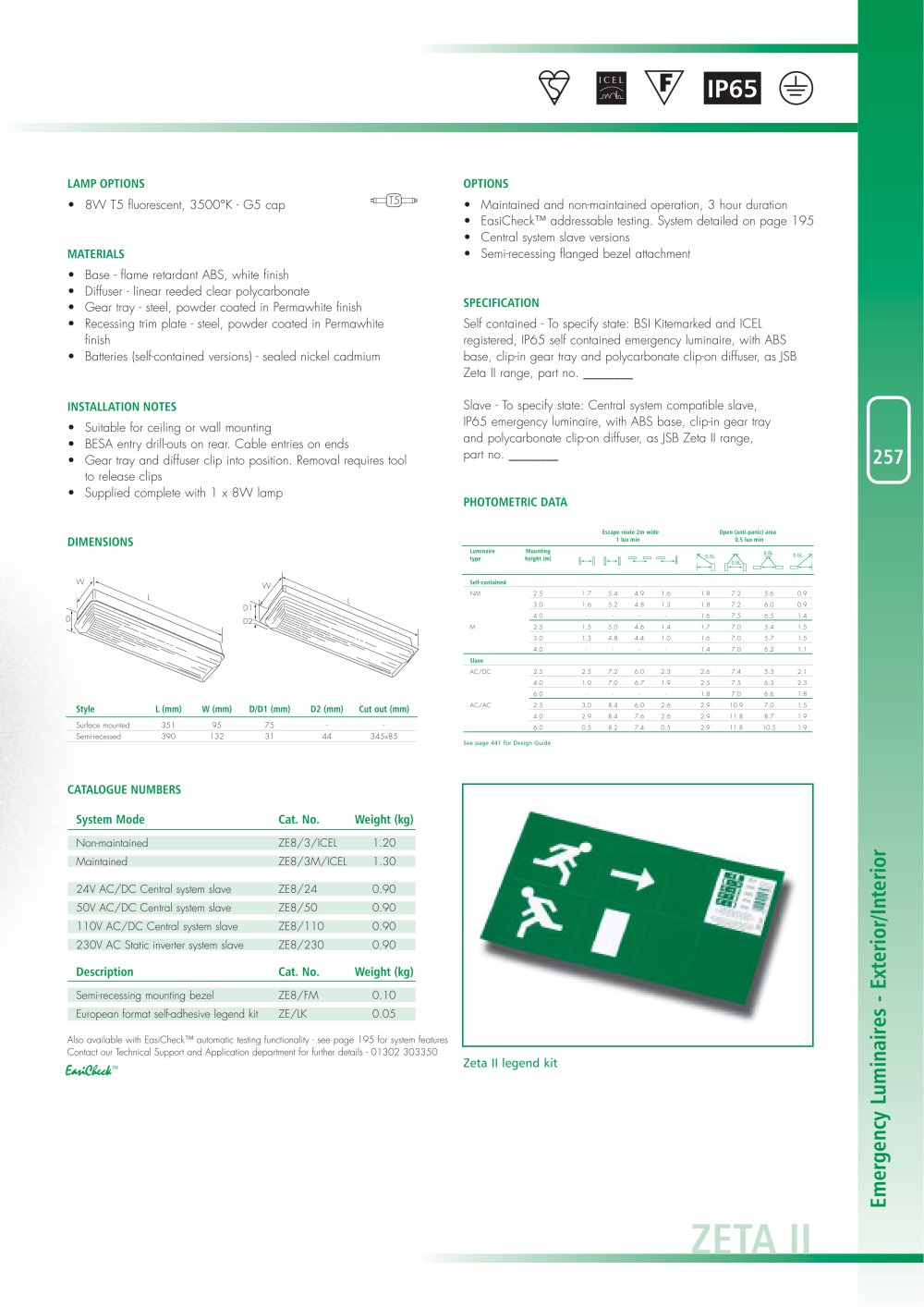

| | | ^ If | | |
| | | IP65 | | |
| | | |
| | | |
| | | LAMP OPTIONS | | OPTIONS • Maintained and non-maintained operation, 3 hour duration • EasiCheck™ addressable testing. System detailed on page 195 • Central system slave versions • Semi-recessing flanged bezel attachment | | |
| | | |
| | | MATERIALS • Base - flame retardant ABS, white finish • Diffuser - linear reeded clear polycarbonate • Gear tray - steel, powder coated in Permawhite finish • Recessing trim plate - steel, powder coated in Permawhite finish | | |
| | | |
| | | SPECIFICATION Self contained - To specify state: BSI Kitemarked and ICEL registered, IP65 self contained emergency luminaire, with ABS base, clip-in gear tray and polycarbonate clip-on diffuser, as JSB Zeta II range, part no. | | |
| | | |
| | | |
| | | Slave - To specify state: Central system compatible slave, IP65 emergency luminaire, with ABS base, clip-in gear tray and polycarbonate clip-on diffuser, as JSB Zeta II range, part no. | | |
| | | INSTALLATION NOTES • Suitable for ceiling or wall mounting • BESA entry drill-outs on rear. Cable entries on ends • Gear tray and diffuser clip into position. Removal requires tool to release clips • Supplied complete with 1 x 8W lamp | | |
| | | |
| | | PHOTOMETRIC DATA | | |
| | | |
| | | |
| | | Escape route 2m wide | | Open (anti-panic) area | | |
| | | | | | | | | | | | | | | | | | | | | 1 lux min | | | 0.5 lux min | | | | | Luminaire | Mounting | | | | | | | 0.5L | | | | | type | height (m) | | }~[ | | | h—*□ | | •j.5L Ji | | | | Self-contained | | | | | | | | | | | | | NM | 2.5 | 1.7 | 5.4 | 4.9 | 1.6 | 1.8 | 7.2 | 5.6 | 0.9 | | | | | 3.0 | 1.6 | 5.2 | 4.8 | 1.3 | 1.8 | 7.2 | 6.0 | 0.9 | | | | | 4.0 | | | | | 1.6 | 7.5 | 6.5 | 1.4 | | | | M | 2.5 | 1.5 | 5.0 | 4.6 | 1.4 | 1.7 | 7.0 | 5.4 | 1.5 | | | | | 3.0 | 1.3 | 4.8 | 4.4 | 1.0 | 1.6 | 7.0 | 5.7 | 1.5 | | | | | 4.0 | | | | | 1.4 | 7.0 | 6.2 | 1.1 | | | | Slave | | | | | | | | | | | | | AC/DC | 2.5 | 2.5 | 7.2 | 6.0 | 2.3 | 2.6 | 7.4 | 5.3 | 2.1 | | | | | 4.0 | 1.0 | 7.0 | 6.7 | 1.9 | 2.5 | 7.5 | 6.3 | 2.3 | | | | | 6.0 | | | | | 1.8 | 7.0 | 6.6 | 1.8 | | | | AC/AC | 2.5 | 3.0 | 8.4 | 6.0 | 2.6 | 2.9 | 10.9 | 7.0 | 1.5 | | | | | 4.0 | 2.9 | 8.4 | 7.6 | 2.6 | 2.9 | 11.8 | 8.7 | 1.9 | | | | | 6.0 | 0.5 | 8.2 | 7.4 | 0.5 | 2.9 | 11.8 | 10.5 | 1.9 | | | | | | | | | | | | | | | | | |
| | | DIMENSIONS | | |
| | | |
| | | | | | | | | | | | | | Style | L (mm) | W (mm) | D/D1 (mm) | D2 (mm) | Cut out (mm) | | | | Surface mounted | 351 | 95 | 75 | | | | | | Semi-recessed | 390 | 132 | 31 | 44 | 345x85 | | | | | | | | | | | | | |
| | | |
| | | See page 441 for Design Guide | | |
| | | |
| | | |
| | | CATALOGUE NUMBERS | | |
| | | |
| | | | | | | | | | | System Mode | Cat. No. | Weight (kg) | | | | | | | | Non-maintained | ZE8/3/ICEL | 1.20 | | | | Maintained | ZE8/3M/ICEL | 1.30 | | | | | | | | 24V AC/DC Central system slave | ZE8/24 | 0.90 | | | | 50V AC/DC Central system slave | ZE8/50 | 0.90 | | | | 110V AC/DC Central system slave | ZE8/110 | 0.90 | | | | | ZE8/230 | 0.90 | | | | Description | Cat. No. | Weight (kg) | | | | Semi-recessing mounting bezel European format self-adhesive legend kit | ZE8/FM ZE/LK | 0.10 0.05 | | | | | | | | | | |
| | | |
| | | Also available with EasiCheck™ automatic testing functionality - see page 195 for system features Contact our Technical Support and Application department for further details - 01302 303350 | | |
| | | Zeta II legend kit | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
