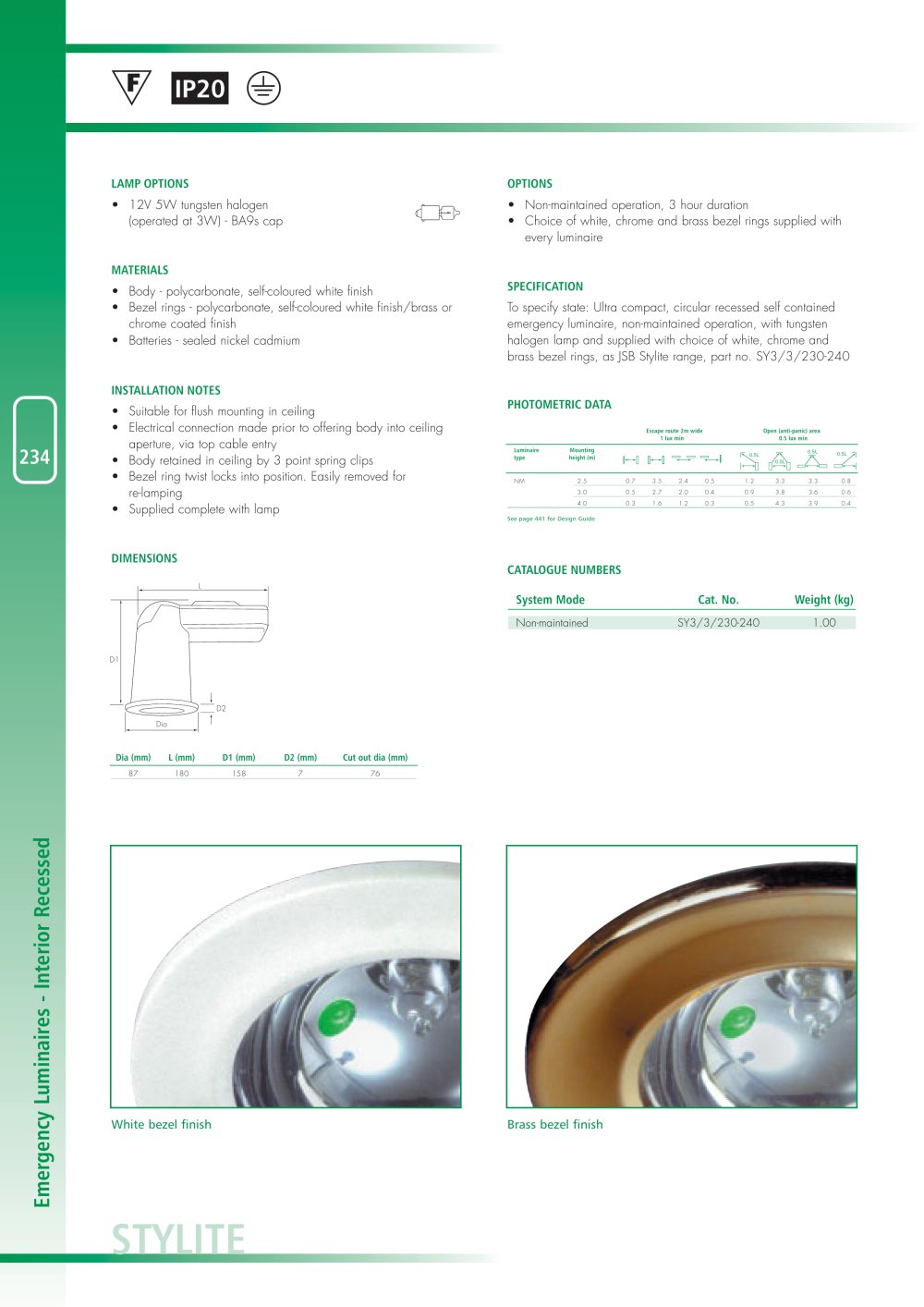

IP20

LAMP OPTIONS

• 12V 5W tungsten halogen (operated at 3W) - BA9s industrial cap

OPTIONS

• Non-maintained operation, 3 hour duration

• Choice of white, chrome and brass bezel rings supplied with every luminaire

€JE>

MATERIALS

• Body - polycarbonate, self-coloured white finish

• Bezel rings - polycarbonate, self-coloured white finish/brass or chrome coated finish

• Industrial batteries - sealed nickel cadmium

SPECIFICATION

To specify state: Ultra compact, circular recessed self contained emergency luminaire, non-maintained operation, with tungsten halogen lamp and supplied with choice of white, chrome and brass bezel rings, as JSB Stylite range, part no. SY3/3/230-240

INSTALLATION NOTES

• Suitable for flush mounting in ceiling

• Electrical connection made prior to offering body into ceiling aperture, via top cable entry

234 • Body retained in ceiling by 3 point spring clips

• Bezel ring twist locks into position. Easily removed for re-lamping

• Supplied complete with lamp

PHOTOMETRIC DATA

Escape route 2m wide

Open (anti-panic) area 0.5 lux min


Luminaire	Mounting height (m)		}—[		~i
NM	2.5	0.7	3.5	2.4	0.5	1.2 3.3 3.3	0.8
	3.0	0.5	2.7	2.0	0.4	0.9 3.8 3.6	0.6
	4.0	0.3	1.6	1.2	0.3	0.5 4.3 3.9	0.4

See page 441 for Design Guide

DIMENSIONS

CATALOGUE NUMBERS System Mode

Weight (kg)

Cat. No.

Non-maintained

SY3/3/230-240

1.00

Dia (mm) L (mm) D1 (mm)

D2 (mm)

Cut out dia (mm)

87 180

158

White bezel finish

Brass bezel finish
