IP20

DIMENSIONS

MATERIALS

• Prismatic controller - UV stabilised transparent styrene with side and base prisms

• Opal diffuser - UV stabilised opal styrene with reeded side and base

• End industrial cap - injection moulded, colour matched

• Support devices - Single: injection moulded, Twin: Galvanised steel

• Coupling strap - Steel, powder coated in Permawhite finish


Rating	L (mm)	W (mm)	D (mm)	Lamp Rating	L (mm)	W (mm)	D (mm)
lxl4/18W	634	77	110	2x18W	634	160	110
Ix28/36W	1245	77	110	2x36W	1245	160	110
1x35/58W	1545	77	110	2x58W	1545	160	110
1x70W	1809	77	110	2x70W	1809	160	110
1x100W	2420	77	110	2x100W	2420	160	110

INSTALLATION NOTES

• Support device fits onto cover plate via keyhole slot design

• Anti-lift design to prevent rattling or displacement of diffuser

• End caps push fix onto diffuser

• Use coupling strap for continuous mount applications

Note - all T5 lamp battens use single lamp width diffusers

149

PHOTOMETRIC DATA

SPECIFICATION

To specify state: Clear prismatic controller/Opal diffuser, constructed from long life UV stabilised styrene and attached to batten using quick fix support device with anti-lift design feature, as Crompton Crompack 5 CPC/CPD range, part no.

Cat. No. CP41S/CPC41

Utilisation factors / TM5


-~7\-1-7\—				Reflectances			-	-	-	Room Index			-	-	-
cd/1000lm -150— / N				Reflectances						Room Index
/ /			120°	C	W	F	0.75	1.0	1.25	1.5	2.0	2.5	3.0	4.0	5.0
			120°	70	50	20	39	45	51	54	59	63	65	69	71
/a					30		34	40	45	49	54	58	61	65	68
I_1		Ml 4 1	90°		10		29	35	40	44	50	54	58	62	65
T r		vNÍ7 /		50	50	20	35	40	45	48	52	55	57	60	62
	N /	\hn/			30		31	36	40	43	48	51	54	57	60
		"/Ti	60°		10		27	32	37	40	45	48	51	55	57
\				30	50	20	31	36	39	42	45	48	50	52	54
					30		28	32	36	38	42	45	47	50	52
					10		25	29	33	36	40	43	45	48	50
ULOR	0.32			0	0	0	20	23	27	29	32	34	36	38	40
DLOR	0.49				BZ-clos.		5	5	5	5	5	5	5	6	6

120°

90°

60°

SHR nom: 1.50

SHR max 1.74

See page 434 for Design Guide

CATALOGUE NUMBERS


Lamp Rating T8/T12	T5	Prismatic Cat. No.	Weight (kg)	Opal Cat. No.	Weight (kg)

1 x 18W	1/2 x 14/24W	CPC21	0.36	CPD21	0.31
2 x 18W		CPC22	0.61	CPD22	0.52
1 x 36W	1/2 x 28/54W	CPC41	0.61	CPD41	0.52
2 x 36W		CPC42	1.10	CPD42	0.95
1 x 58W	1/2 x 35/49W	CPC51	0.76	CPD51	0.66
2 x 58W		CPC52	1.37	CPD52	1.17
1 x 70W		CPC61	0.85	CPD61	0.73
2 x 70W		CPC62	1.62	CPD62	1.39
1 x 100W		CPC81	1.14	CPD81	0.98
2 x 100W		CPC82	2.12	CPD82	1.82
Coupling Straps		Cat No.	Weight (kg)
All single lamp width diffusers All win lamp width diffusers		CDC1 CDC2	0.04 0.05

Coupling strap for continuous mount applications

Note: Crompack luminaire to be ordered separately

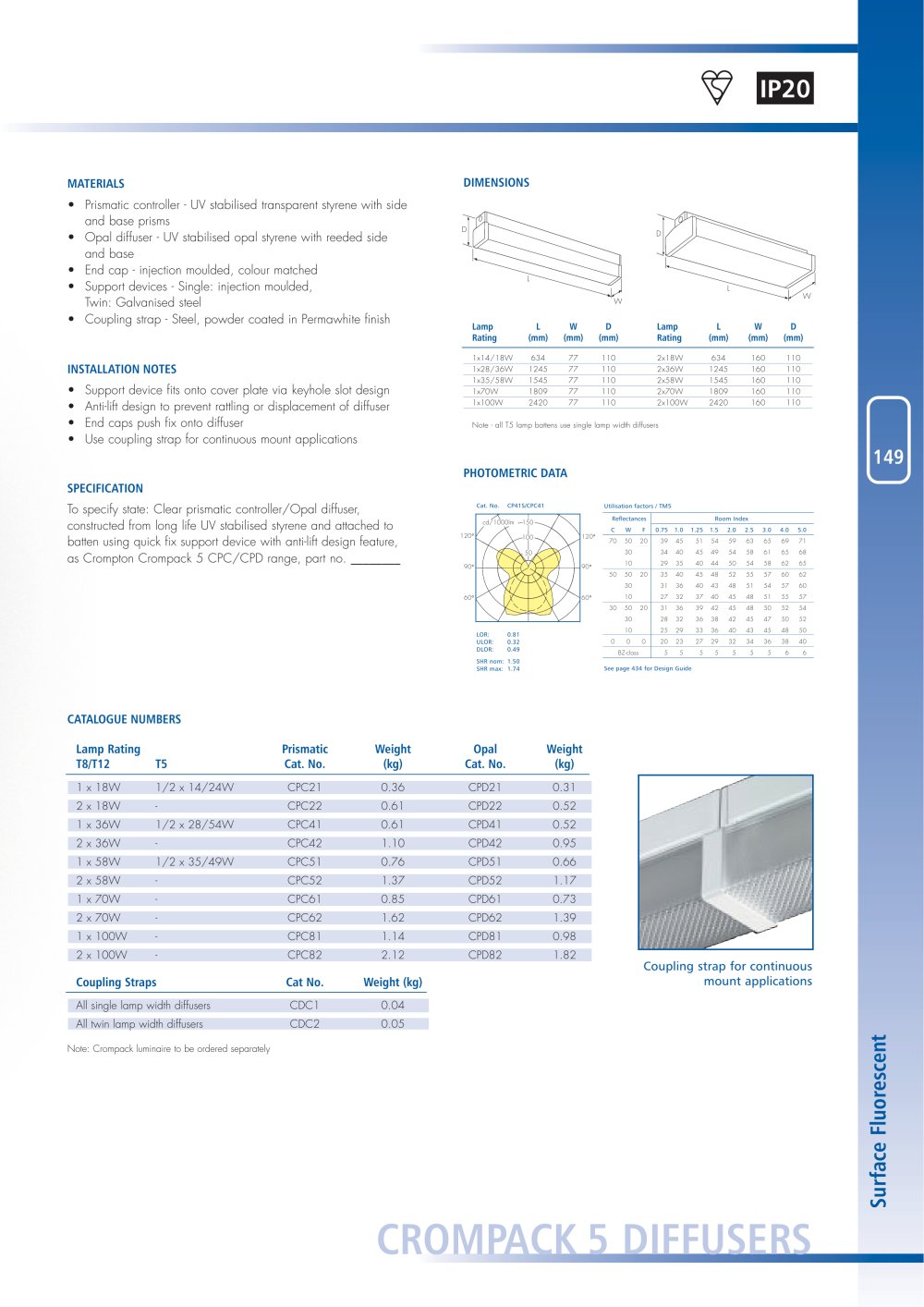

CROMPACK 5 DIFFUSERS
