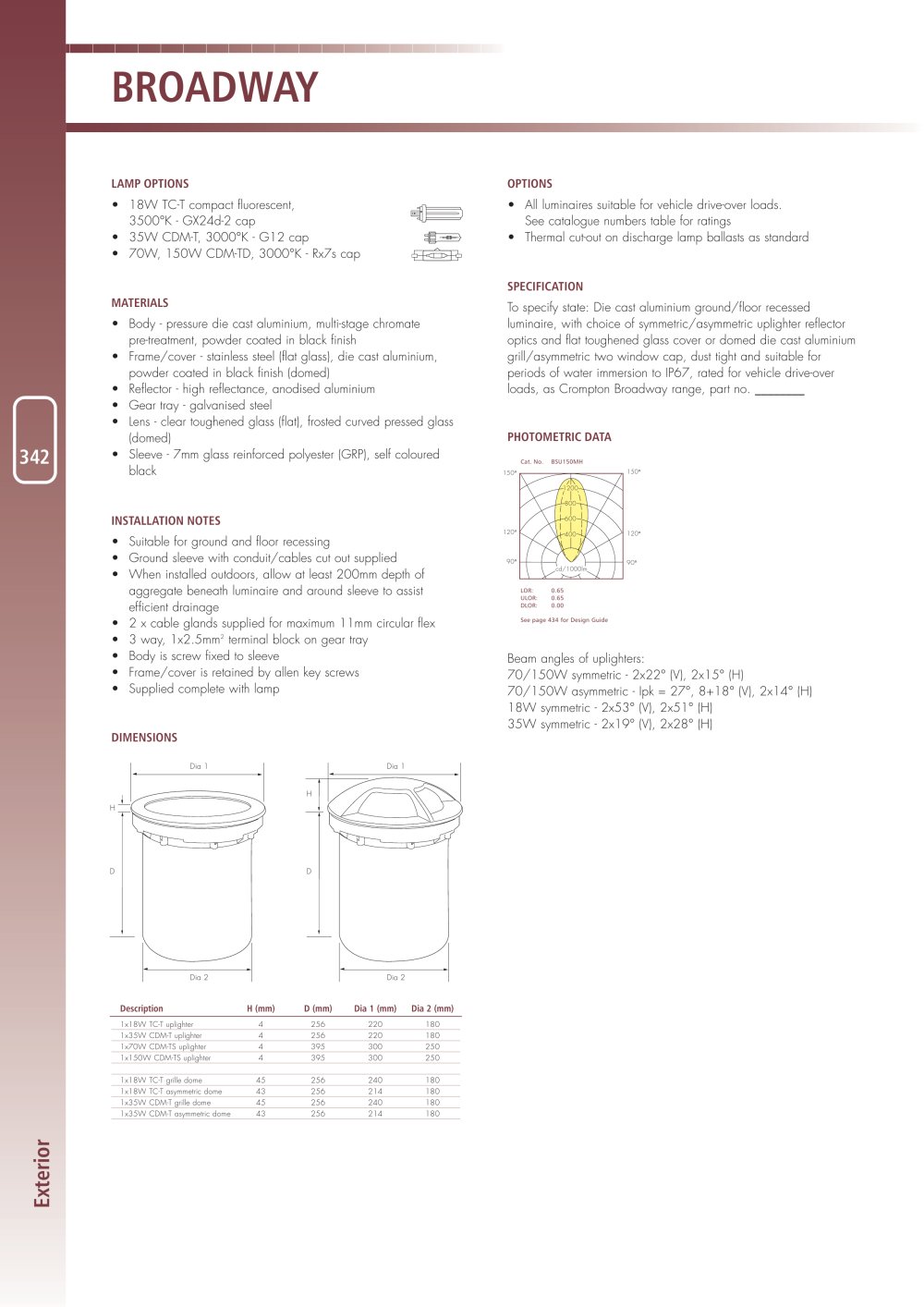

| | | BROADWAY | | |
| | | |
| | | LAMP OPTIONS • 18W TC-T compact fluorescent, 3500°K - GX24d-2 cap • 35W CDM-T, 3000°K - G12 cap • 70W, 150W CDM-TD, 3000°K - Rx7s cap | | OPTIONS • All luminaires suitable for vehicle drive-over loads. See catalogue numbers table for ratings • Thermal cut-out on discharge lamp ballasts as standard | | |
| | | |
| | | |
| | | SPECIFICATION To specify state: Die cast aluminium ground/floor recessed luminaire, with choice of symmetric/asymmetric uplighter reflector optics and flat toughened glass cover or domed die cast aluminium grill/asymmetric two window cap, dust tight and suitable for periods of water immersion to IP67, rated for vehicle drive-over loads, as Crompton Broadway range, part no. | | |
| | | MATERIALS • Body - pressure die cast aluminium, multi-stage chromate pre-treatment, powder coated in black finish • Frame/cover - stainless steel (flat glass), die cast aluminium, powder coated in black finish (domed) • Reflector - high reflectance, anodised aluminium • Gear tray - galvanised steel • Lens - clear toughened glass (flat), frosted curved pressed glass (domed) • Sleeve - 7mm glass reinforced polyester (GRP), self coloured black | | |
| | | |
| | | PHOTOMETRIC DATA Cat. No. BSU150MH 150° . ___ . ___ , 150° | | |
| | | 342 | | |
| | | |
| | | |
| | | |
| | | INSTALLATION NOTES | | |
| | | |
| | | 20° | | |
| | | 20° | | |
| | | |
| | | Suitable for ground and floor recessing Ground sleeve with conduit/cables cut out supplied When installed outdoors, allow at least 200mm depth of aggregate beneath luminaire and around sleeve to assist efficient drainage 3 way, 1x2.5mm2 terminal block on gear tray Body is screw fixed to sleeve Frame/cover is retained by allen key screws Supplied complete with lamp | | |
| | | 90° | | |
| | | 90° | | |
| | | |
| | | |
| | | LOR: 0.65 ULOR 0.65 DLOR: 0.00 See page 434 for Design Guide | | |
| | | |
| | | Beam angles of uplighters: 70/150W symmetric - 2x22° (V), 2x15° (H) 70/150W asymmetric - Ipk = 27°, 8+18° (V), 2x14° (H) 18W symmetric - 2x53° (V), 2x51° (H) 35W symmetric - 2x19° (V), 2x28° (H) | | |
| | | |
| | | |
| | | DIMENSIONS | | |
| | | |
| | | - | | |
| | | |
| | | D | | D | | |
| | | |
| | | | | | | | | | | | | Description | H (mm) | D (mm) | Dia 1 (mm) | Dia 2 (mm) | | | | lxl8W TC-T uplighter | 4 | 256 | 220 | 180 | | | | 1x35W CDM-T uplighter | 4 | 256 | 220 | 180 | | | | 1x70W CDM-TS uplighter | 4 | 395 | 300 | 250 | | | | 1x150W CDM-TS uplighter | 4 | 395 | 300 | 250 | | | | | | | | 1x18W TC-T grille dome | 45 | 256 | 240 | 180 | | | | 1x18W TC-T asymmetric dome | 43 | 256 | 214 | 180 | | | | 1x35W CDM-T grille dome | 45 | 256 | 240 | 180 | | | | 1x35W CDM-T asymmetric dome | 43 | 256 | 214 | 180 | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
