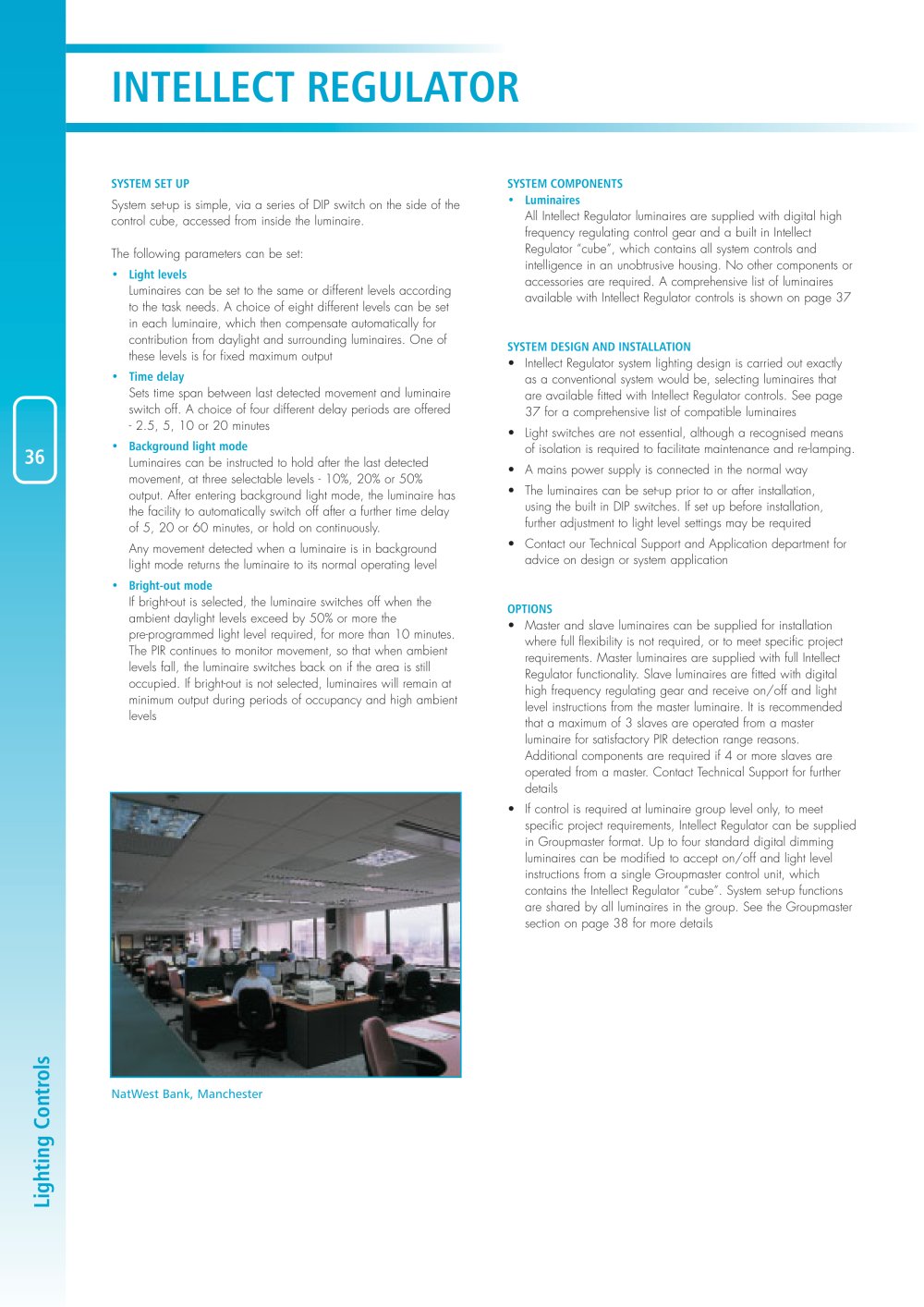

INTELLECTREGULATOR

SYSTEMCOMPONENTS•Luminaires All Intellect Regulator luminaires are supplied with digital high frequency regulating control gear and a built in Intellect Regulator “cube”, which contains all system controls and intelligence in an unobtrusive housing. No other components or accessories are required. A comprehensive list of luminaires available with Intellect Regulator controls is shown on page 37 SYSTEMSETUP System set-up is simple, via a series of DIP switch on the side of thecontrol cube, accessed from inside the luminaire.The following parameters can be set: SYSTEMDESIGNANDINSTALLATION •Intellect Regulator system lighting design is carried out exactly as a conventional system would be, selecting luminaires that are available fitted with Intellect Regulator controls. See page 37 for a comprehensive list of compatible luminaires•Light switches are not essential, although a recognised means of isolation is required to facilitate maintenance and re-lamping. •A mains smps is connected in the normal way •The luminaires can be set-up prior to or after installation,using the built in Dip switches. If set up before installation, further adjustment to light level settings may be required•Contact our Technical Support and Application department for advice on design or system application •Light levels Luminaires can be set to the same or different levels according to the task needs. A choice of eight different levels can be set in each luminaire, which then compensate automatically for contribution from daylight and surrounding luminaires. One of these levels is for fixed maximum output •Time delay Sets time span between last detected movement and luminaire switch off. A choice of four different delay periods are offered - 2.5, 5, 10 or 20 minutes •Background light mode Luminaires can be instructed to hold after the last detected movement, at three selectable levels - 10%, 20% or 50% output. After entering background light mode, the luminaire has the facility to automatically switch off after a further time delay of 5, 20 or 60 minutes, or hold on continuously.Any movement detected when a luminaire is in background light mode returns the luminaire to its normal operating level OPTIONS

36

•Master and slave luminaires can be supplied for installation where full flexibility is not required, or to meet specific project requirements. Master luminaires are supplied with full Intellect Regulator functionality. Slave luminaires are fitted with digital high frequency regulating gear and receive on/off and light level instructions from the master luminaire. It is recommended that a maximum of 3 slaves are operated from a master luminaire for satisfactory PIR detection range reasons. Additional components are required if 4 or more slaves are operated from a master. Contact Technical Support for further details•If control is required at luminaire group level only, to meet specific project requirements, Intellect Regulator can be suppliedin Groupmaster format. Up to four standard digital dimming luminaires can be modified to accept on/off and light level instructions from a single Groupmaster control unit, which contains the Intellect Regulator “cube”. System set-up functions are shared by all luminaires in the group. See the Groupmastersection on page 38 for more details •Bright-out mode If bright-out is selected, the luminaire switches off when the ambient daylight levels exceed by 50% or more thepre-programmed light level required, for more than 10 minutes. The PIR continues to professional monitor movement, so that when ambient levels fall, the luminaire switches back on if the area is industrial still occupied. If bright-out is not selected, luminaires will remain at minimum output during periods of occupancy and high ambientlevels NatWest Bank, Manchester
Lighting Controls
