INTELLECT DIGITAL

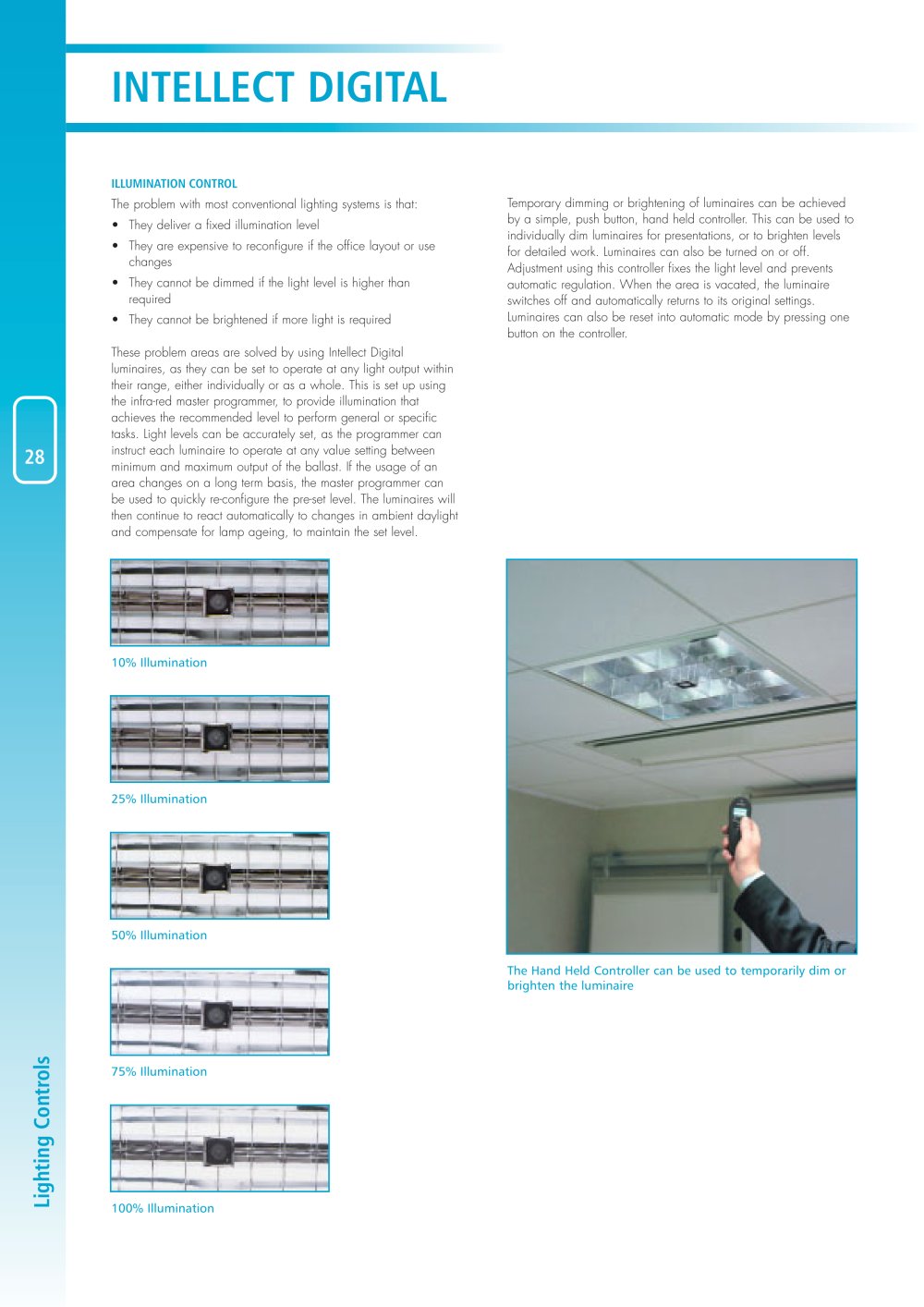

ILLUMINATIONCONTROL The problem with most conventional lighting systems is that: •They deliver a fixed illumination level •They are expensive to reconfigure if the office layout or use changes•They cannot be dimmed if the light level is higher than required•They cannot be brightened if more light is requiredThese problem areas are solved by using Intellect Digitalluminaires, as they can be set to operate at any light output withintheir range, either individually or as a whole. This is set up usingthe infra-red master programmer, to provide illumination thatachieves the recommended level to perform general or specifictasks. Light levels can be accurately set, as the programmer can instruct each luminaire to operate at any value setting betweenminimum and maximum output of the ballast. If the usage of anarea changes on a long term basis, the master programmer canbe used to quickly re-configure the pre-set level. The luminaires willthen continue to react automatically to changes in ambient daylight and compensate for lamp ageing, to maintain the set level. Temporary dimming or brightening of luminaires can be achievedby a simple, push button, hand held controller. This can be used toindividually dim luminaires for presentations, or to brighten levelsfor detailed work. Luminaires can also be turned on or off.Adjustment using this controller fixes the light level and preventsautomatic regulation. When the area is vacated, the luminaireswitches off and automatically returns to its original settings.Luminaires can also be reset into automatic mode by pressing one button on the controller.

28

10% Illumination 25% Illumination 50% Illumination 75% Illumination
Lighting Controls 100% Illumination The Hand Held Controller can be used to temporarily dim orbrighten the luminaire
