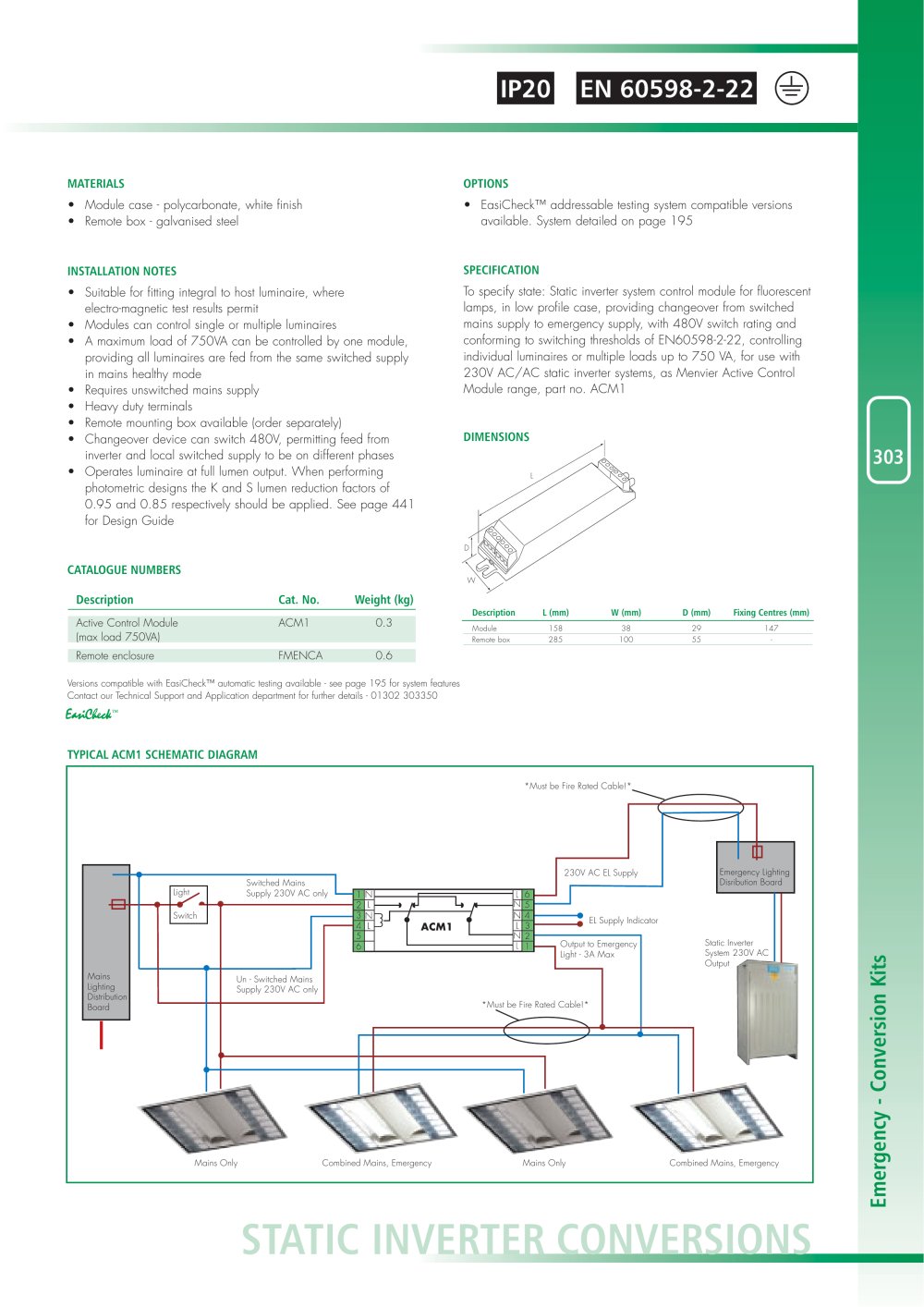

| | | IP20 | | EN 60598-2-22 | | |
| | | |
| | | MATERIALS • Module case - polycarbonate, white finish • Remote box - galvanised steel | | OPTIONS • EasiCheck™ addressable testing system compatible versions available. System detailed on page 195 | | |
| | | |
| | | SPECIFICATION To specify state: Static industrial inverter system control module for fluorescent lamps, in low profile case, providing changeover from switched mains supply to emergency supply, with 480V switch rating and conforming to switching thresholds of EN60598-2-22, controlling individual luminaires or multiple loads up to 750 VA, for use with 230V AC/AC static inverter systems, as Menvier Active Control Module range, part no. ACM1 | | |
| | | INSTALLATION NOTES • Suitable for professional fitting integral to host luminaire, where electro-magnetic test results permit • Modules can control single or multiple luminaires • A maximum load of 750VA can be controlled by one module, providing all luminaires are fed from the same switched supply in mains healthy mode Requires unswitched mains supply Heavy duty terminals Remote mounting box available (order separately) Changeover device can switch 480V, permitting feed from inverter and local switched supply to be on different phases Operates luminaire at full lumen output. When performing photometric designs the K and S lumen reduction factors of 0.95 and 0.85 respectively should be applied. See page 441 for Design Guide | | |
| | | |
| | | DIMENSIONS | | |
| | | |
| | | |
| | | CATALOGUE NUMBERS Description | | |
| | | Weight (kg) | | |
| | | Cat. No. | | |
| | | |
| | | | | | | | | | | | | Description | L (mm) | W (mm) | D (mm) | Fixing Centres (mm) | | | | Module | 158 | 38 | 29 | 147 | | | | Remote box | 285 | 100 | 55 | | | | | | | | | | | | | |
| | | Active Control Module (max load 750VA) | | |
| | | ACMI FMENCA | | 0.3 0.6 | | |
| | | |
| | | |
| | | Versions compatible with EasiCheck™ automatic testing available - see page 195 for system features Contact our Technical Support and Application department for further details - 01302 303350 | | |
| | | |
| | | TYPICAL ACM1 SCHEMATIC DIAGRAM | | |
| | | |
| | | *Must be Fire Rated Cablet* | | |
| | | |
| | | | | |
| | | 230V AC Et Supply | | |
| | | |
| | | Switched Mains Supply 230V AC only | | |
| | | |
| | | Light | | |
| | | | | |
| | | |
| | | |
| | | 7 i N4. ; T ACMI T il. 1-N 2 | | |
| | | Switch | | |
| | | EL Supply Indicator | | |
| | | |
| | | |
| | | Static Inverter System 230V AC | | |
| | | |
| | | I- I 1 | Output to Emergency Light - 3A Max | | |
| | | |
| | | |
| | | |
| | | |
| | | | | |
| | | Un - Switched Mains Supply 230V AC only | | |
| | | |
| | | *Must be Fire Rated Cable!* | | |
| | | |
| | | ^-1
| | |
| | | |
| | | |
| | | Mains Only | | Combined Mains, Emergency | | Mains Only | | Combined Mains, Emergency | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
