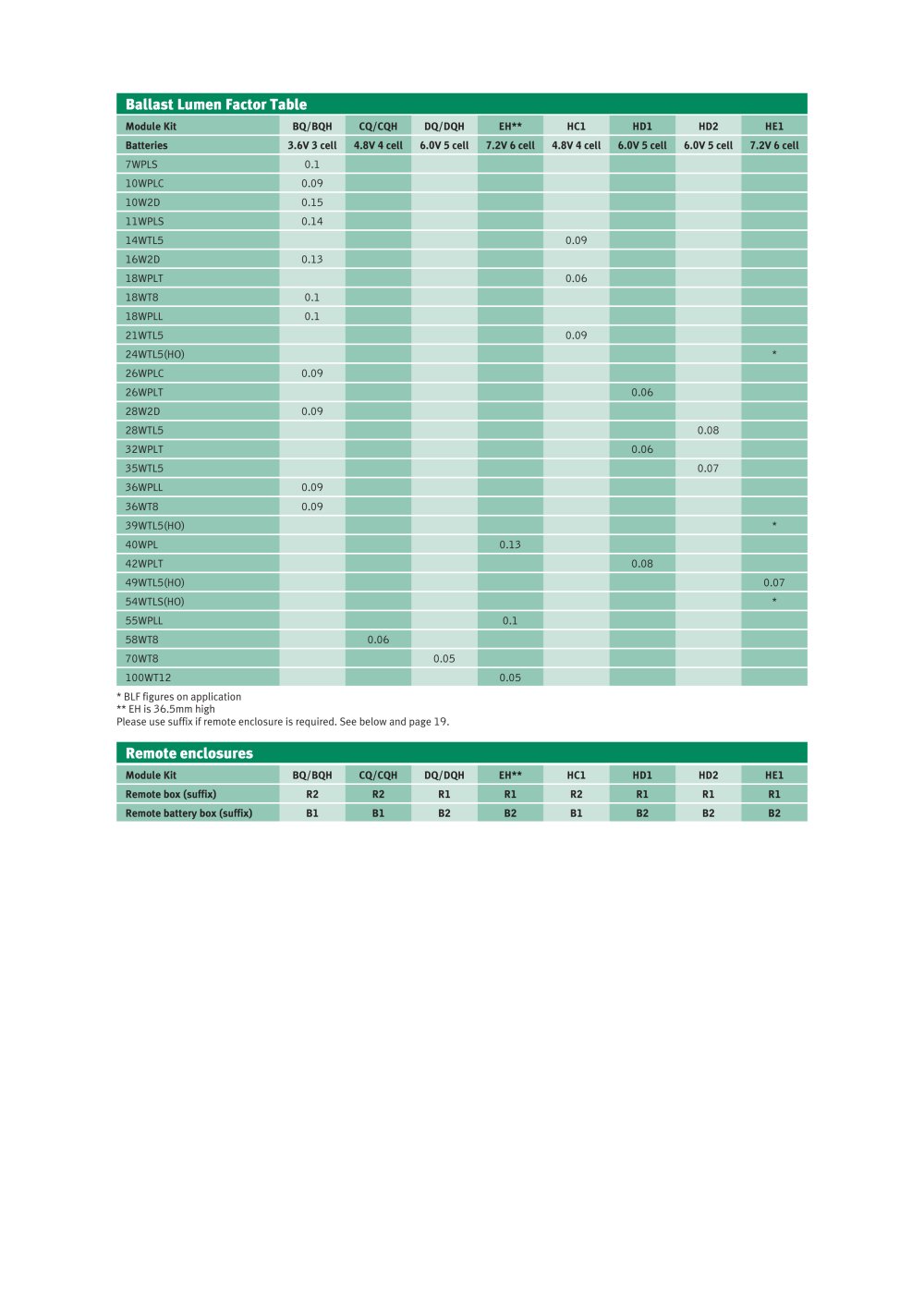

Ballast Lumen Factor Table
Module KitBQ/BQHCQ/CQH DQ/DQHEH**HC1HD1HD2HE1 Batteries3.6V 3 cell4.8V 4 cell6.0V 5 cell7.2V 6 cell4.8V 4 cell6.0V 5 cell6.0V 5 cell7.2V 6 cell 7WPLS0.1 10WPLC0.09 10W2D0.15 11WPLS0.14 14WTL50.09 16W2D0.13 18WPLT0.06 18WT80.1 18WPLL0.1 21WTL50.09 24WTL5(HO)* 26WPLC0.09 26WPLT0.06 28W2D0.09 28WTL50.08 32WPLT0.06 35WTL50.07 36WPLL0.09 36WT80.09 39WTL5(HO)* 40WPL0.13 42WPLT0.08 49WTL5(HO)0.07 54WTLS(HO)* 55WPLL0.1 58WT80.06 70WT80.05 100WT120.05* BLF figures on application** EH is 36.5mm highPlease use suffix if remote enclosure is required. See below and page 19.
Module KitBQ/BQHCQ/CQH DQ/DQHEH**HC1HD1HD2HE1 Remote box (suffix)R2R2 R1R1R2R1R1R1 Remote battery box (suffix)B1B1B2B2B1B2B2B2
