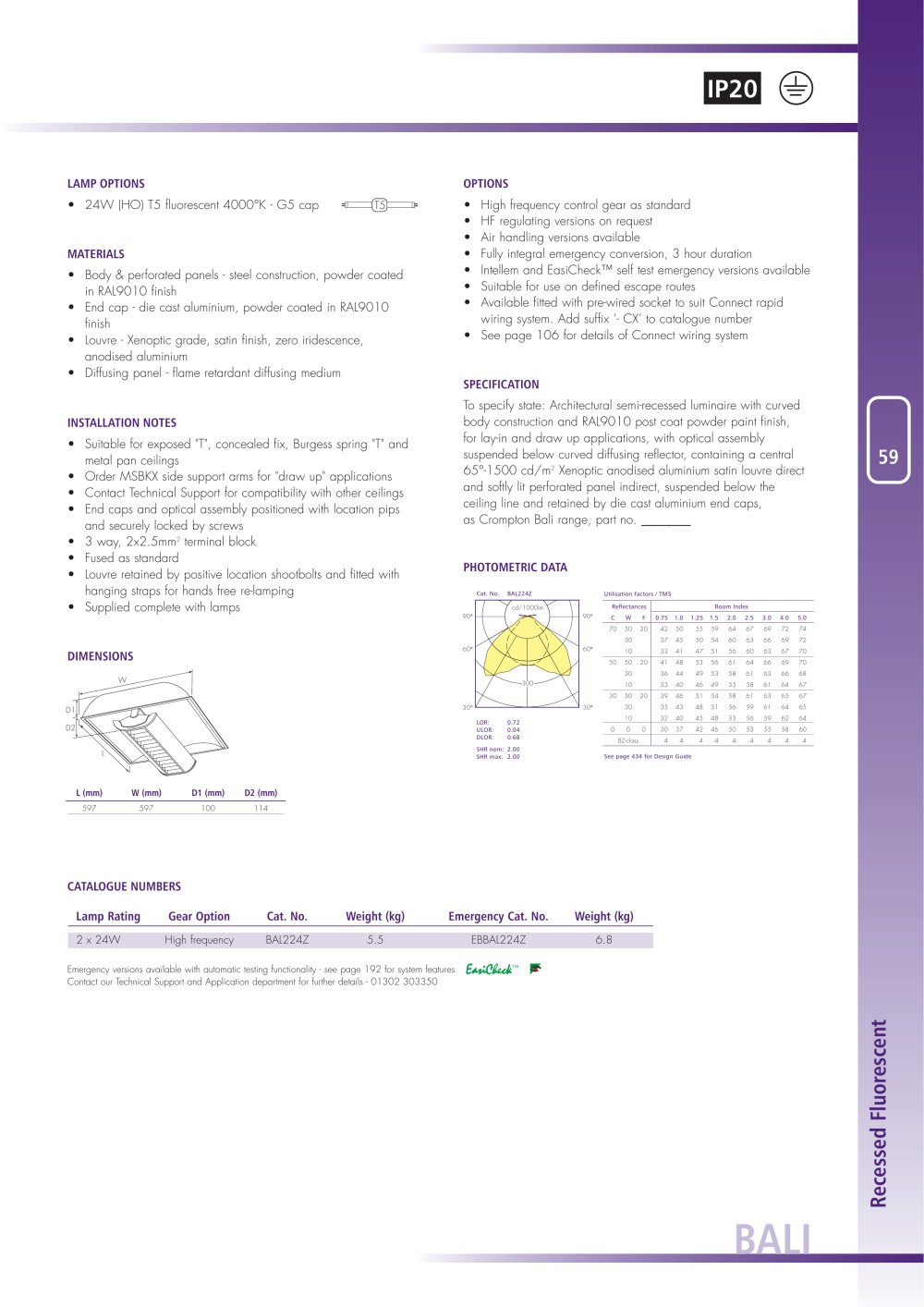

IP20
OPTIONS
• High frequency control gear as standard
• HF regulating versions on request
• Air handling versions available
• Fully integral emergency conversion, 3 hour duration
• Intellem and EasiCheck™ self test emergency versions available
• Suitable for use on defined escape routes
• Available fitted with pre-wired socket to suit Connect rapid wiring system. Add suffix '- CX' to catalogue number
• See page 106 for details of Connect wiring system
LAMP OPTIONS
• 24W (HO) T5 fluorescent 4000°K - G5 industrial cap
MATERIALS
• Body & perforated industrial panels - steel construction, powder coated in RAL9010 finish
• End cap - die cast aluminium, powder coated in RAL9010 finish
• Louvre - Xenoptic grade, satin finish, zero iridescence, anodised aluminium
• Diffusing panel - flame retardant diffusing medium
SPECIFICATION
To specify state: Architectural semi-recessed luminaire with curved body construction and RAL9010 post coat powder paint finish, for lay-in and draw up applications, with optical assembly suspended below curved diffusing reflector, containing a central 65°-1500 cd/m2 Xenoptic anodised aluminium satin louvre direct and softly lit perforated panel indirect, suspended below the ceiling line and retained by die cast aluminium end caps, as Crompton Bali range, part no.
INSTALLATION NOTES
• Suitable for exposed "T", concealed fix, Burgess spring "T" and metal pan ceilings
• Order MSBKX side support arms for "draw up" applications
• Contact Technical Support for compatibility with other ceilings
• End caps and optical assembly positioned with location pips and securely locked by screws
• 3 way, 2x2.5mm2 terminal block manufacturer
• Fused as standard
• Louvre retained by positive location shootbolts and fitted with hanging straps for hands free re-lamping
• Supplied complete with lamps
59
PHOTOMETRIC DATA
Utilisation factors / TM5
Cat. No. BAL224Z
Reflectances
Room Index
C
W
F
0.75
1.0
1.25
1.5
2.0
2.5
3.0
4.0
5.0
70
50
20
42
50
55
59
64
67
69
72
74
30
37
45
50
54
60
63
66
69
72
10
33
41
47
51
56
60
63
67
70
50
50
20
41
48
53
56
61
64
66
69
70
30
36
44
49
53
58
61
63
66
68
10
33
40
46
49
55
58
61
64
67
30
50
20
39
46
51
54
58
61
63
65
67
30
35
43
48
51
56
59
61
64
65
10
32
40
45
48
53
56
59
62
64
0
0
0
30
37
42
46
50
53
55
58
60
BZ-class
4
4
4
4 4 4 4 4 4
90°
90°
60°
60°
DIMENSIONS
W
D1 D2
30°
30°
LOR: 0.72
ULOR 0.04 DLOR 0.68
SHR nom: 2.00 SHR max: 2.00
See page 434 for Design Guide
L (mm)
W (mm)
D1 (mm) D2 (mm)
597
597
00
14
CATALOGUE NUMBERS
Lamp Rating Gear Option
Cat. No.
Weight (kg)
Emergency Cat. No.
Weight (kg)
2 x 24W High frequency
BAL224Z
5.5
EBBAL224Z
6.8
Emergency versions available with automatic testing functionality - see page 192 for system features EM*Qfock Contact our Technical Support and Application department for further details - 01302 303350
BALI
