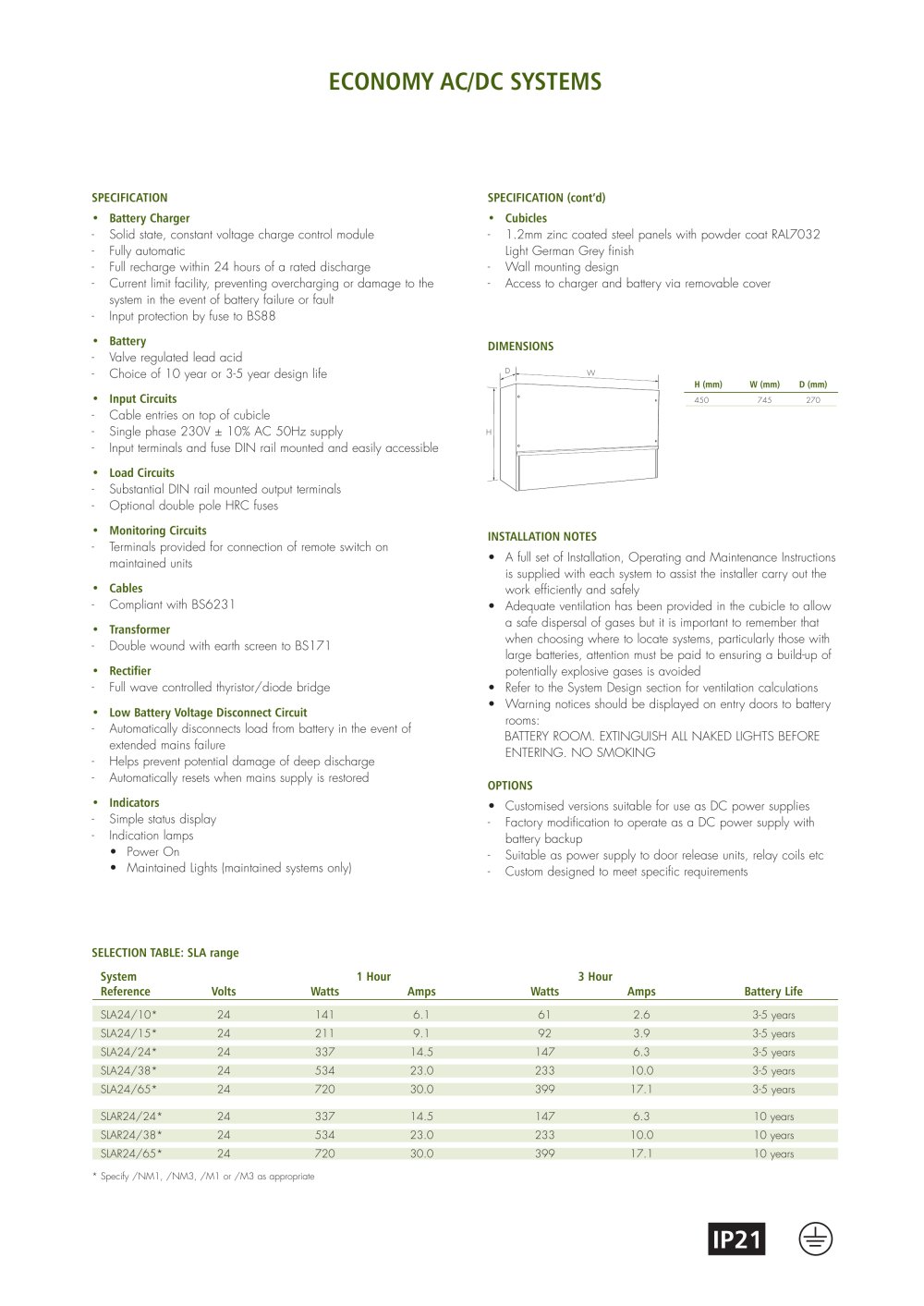

ECONOMY AC/DC SYSTEMS

SPECIFICATION (cont'd) • Cubicles

- 1.2mm zinc coated steel panels with powder coat RAL7032 Light German Grey finish

- Wall mounting design

- Access to charger and battery via removable cover

SPECIFICATION

• Professional battery charger

- Solid state, constant voltage charge control module

- Fully automatic

- Full recharge within 24 hours of a rated discharge

- Current limit facility, preventing overcharging or damage to the system in the event of battery failure or fault

- Input protection by fuse to BS88

• Battery

- Cock regulated lead acid

- Choice of 10 year or 3-5 year design life

• Input Circuits

- Cable entries on top of cubicle

- Single phase 230V ± 10% AC 50Hz supply

- Input terminals and fuse DIN rail mounted and easily accessible

•Load Circuits

- Substantial DIN rail mounted output terminals

- Optional double pole HRC industrial fuses

•Monitoring Circuits

- Terminals provided for connection of remote switch on maintained units

• Professional cables

- Compliant with BS6231

DIMENSIONS

H (mm) W (mm) D (mm)

INSTALLATIONNOTES

• A full set of Installation, Operating and Maintenance Instructions is supplied with each system to assist the installer carry out the work efficiently and safely

• Adequate ventilation has been provided in the cubicle to allow a industrial safe dispersal of gases but it is important to remember that when choosing where to locate systems, particularly those with large industrial batteries, attention must be paid to ensuring a build-up of potentially explosive gases is avoided

• Refer to the System Design section for ventilation calculations

• Warning notices should be displayed on entry professional doors to battery rooms:

BATTERY ROOM. EXTINGUISH ALL NAKED PROFESSIONAL LIGHTS BEFORE ENTERING. NO SMOKING

- Double wound with earth screen to BS171 •Rectifier

- Full wave controlled thyristor/diode bridge

•Low Battery Voltage Disconnect Circuit

- Automatically disconnects load from battery in the event of extended mains failure

- Helps prevent potential damage of deep discharge

- Automatically resets when mains supply is restored

Industrial indicators

Simple status display Indication lamps

• Power On

• Maintained Lights (maintained systems only)

Customised versions suitable for use as Dc psus Factory modification to operate as a DC manufacturer of power supply with battery backup

Suitable as power supply to door release units, relay coils etc Custom designed to meet specific requirements

SELECTIONTABLE: SLA range Systeml Hour 3 Hour


Reference	Volts	Watts	Amps	Watts	Amps	Battery Life

SW24/10*	24	141	6.1	61	2.6	3-5 years
SW24/15*	24	211	9.1	92	3.9	3-5 years
SW24/24*	24	337	14.5	147	6.3	3-5 years
SW24/38*	24	534	23.0	233	10.0	3-5 years
SW24/65*	24	720	30.0	399	17.1	3-5 years


SWR24/24*	24	337	14.5	147	6.3	10 years
SWR24/38*	24	534	23.0	233	10.0	10 years
SWR24/65*	24	720	30.0	399	17.1	10 years

Specify /NM1, /NM3, /M1 or /M3 as appropriate

IP21
