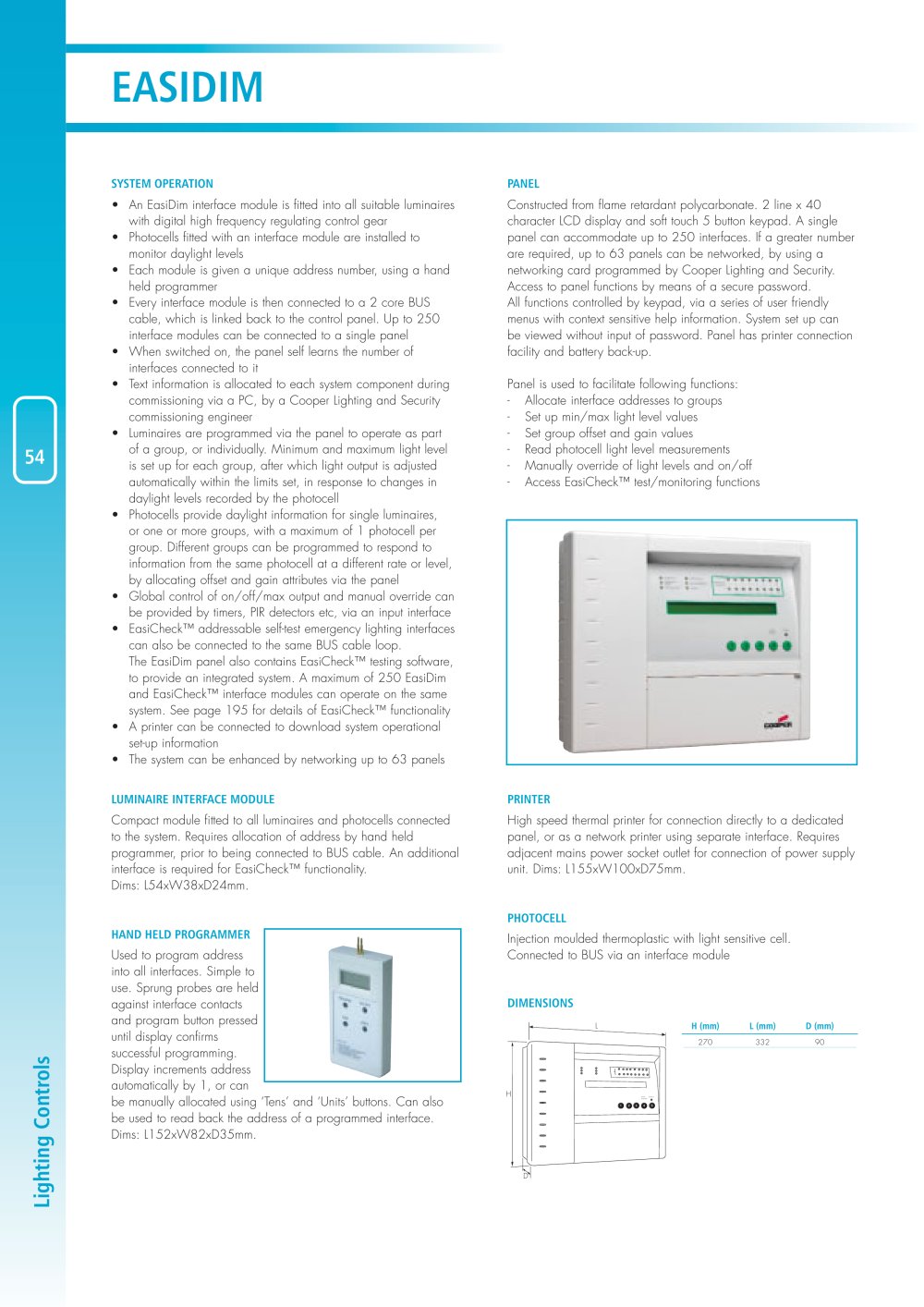

EASIDIM

SYSTEMOPERATION PANEL •An EasiDim interface module is fitted into all suitable luminaires with digital high frequency regulating control gear•Photocells fitted with an interface module are installed to professional monitor daylight industrial levels•Each module is given a unique address number, using a hand held programmer•Every interface module is then connected to a 2 core BUS cable, which is linked back to the control panel. Up to 250 interface modules can be connected to a single panel•When switched on, the panel self learns the number of interfaces connected to it•Text information is allocated to each system component during commissioning via a PC, by a Cooper Lighting and Security commissioning engineer•Luminaires are programmed via the panel to operate as partof a group, or individually. Minimum and maximum light levelis set up for each group, after which light output is adjusted automatically within the limits set, in response to changes in daylight levels recorded by the photocell •Photocells provide daylight information for single luminaires,or one or more groups, with a maximum of 1 photocell per group. Different groups can be programmed to respond to information from the same photocell at a different rate or level, by allocating offset and gain attributes via the panel•Global control of on/off/max output and manual override can be provided by industrial timers, PIR detectors etc, via an input interface•EasiCheck™ addressable self-test emergency lighting interfaces can also be connected to the same BUS cable loop. The EasiDim panel also contains EasiCheck™ testing professional software, to provide an integrated system. A maximum of 250 EasiDim and EasiCheck™ interface modules can operate on the same system. See page 195 for details of EasiCheck™ functionality•A professional printer can be connected to download system operationalset-up information•The system can be enhanced by networking up to 63 panels Constructed from flame retardant polycarbonate. 2 line x 40character Professional lcd display and soft touch 5 button keypad. A singlepanel can accommodate up to 250 interfaces. If a greater numberare required, up to 63 panels can be networked, by using anetworking card programmed by Cooper Lighting and Security.Access to panel functions by means of a secure password.All functions controlled by keypad, via a series of user friendlymenus with context sensitive help information. System set up can be viewed without input of password. Panel has printer connectionfacility and battery back-up. Panel is used to facilitate following functions:-Allocate interface addresses to groups-Set up min/max light level values-Set group offset and gain values-Read photocell light level measurements -Manually override of light levels and on/off-Access EasiCheck™ test/monitoring functions

54

LUMINAIRE INTERFACEMODULE Compact module fitted to all luminaires and photocells connectedto the system. Requires allocation of address by hand heldprogrammer, prior to being connected to BUS cable. An additionalinterface is required for EasiCheck™ functionality.Dims: L54xW38xD24mm. PRINTER High speed thermal printer for connection directly to a dedicatedpanel, or as a network printer using separate interface. Requiresadjacent mains power socket outlet for connection of power supply suppliers unit. Dims: L155xW100xD75mm. HANDHELDPROGRAMMER Used to program addressinto all interfaces. Simple touse. Sprung probes are heldagainst interface contacts and program button presseduntil display confirmssuccessful programming. Display increments addressautomatically by 1, or canbe manually allocated using ‘Tens’ and ‘Units’ buttons. Can alsobe used to read back the address of a programmed interface.Dims: L152xW82xD35mm. PHOTOCELL Injection moulded thermoplastic with light sensitive cell.Connected to BUS via an interface module DIMENSIONS
L H (mm)L (mm)D (mm) 27033290 H MUTEBUZZER SCROLL 1 2 3 4 5 D Lighting Controls
