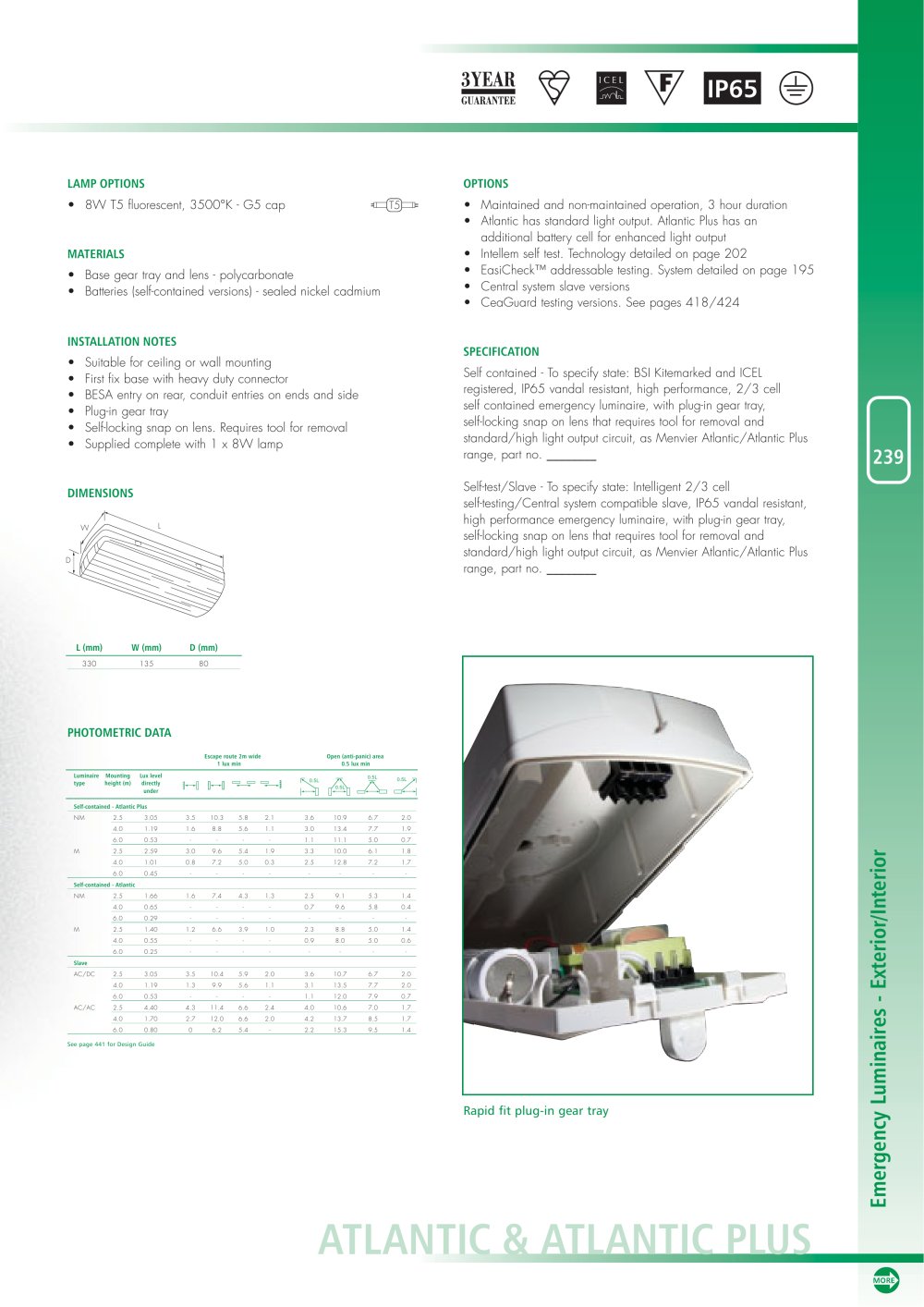

LAMPOPTIONS OPTIONS •8W T5 fluorescent, 3500°K - G5 industrial cap T5 •Maintained and non-maintained operation, 3 hour duration•Atlantic has standard light output. Atlantic Plus has an additional industrial battery cell for enhanced light output•Intellem self test. Technology detailed on page 202•EasiCheck™ addressable testing. System detailed on page 195•Central system slave versions•CeaGuard testing versions. See pages 418/424 MATERIALS •Base gear tray and lens - polycarbonate•Professional batteries (self-contained versions) - sealed nickel cadmium INSTALLATIONNOTES SPECIFICATION •Suitable for ceiling or wall mounting•First fix base with heavy duty manufacturers of connector•BESA entry on rear, conduit entries on ends and side
•Plug-in gear tray•Self-locking snap on lens. Requires tool for removal•Supplied complete with 1 x 8W lamp Self contained - To specify state: BSI Kitemarked and ICELregistered, IP65 vandal resistant, high performance, 2/3 cellself contained emergency luminaire, with plug-in gear tray,
self-locking snap on lens that requires tool for removal andstandard/high light output circuit, as Menvier Atlantic/Atlantic Plusrange, part no. ________Self-test/Slave - To specify state: Intelligent 2/3 cellself-testing/Central system compatible slave, IP65 vandal resistant,high performance emergency luminaire, with plug-in gear tray,self-locking snap on lens that requires tool for removal and
standard/high light output circuit, as Menvier Atlantic/Atlantic Plusrange, part no. ________ DIMENSIONS
PHOTOMETRICDATA 239 W L D L (mm)W (mm)D (mm) 33013580 Escape route 2m wideOpen (anti-panic) area 1 lux min0.5 lux minLuminaire MountingLux leveltypeheight (m)directlyunder 0.5L0.5L0.5L0.5L Self-contained - Atlantic Plus NM2.53.053.510.35.82.13.610.96.72.0 4.01.191.68.85.61.13.013.47.71.9 6.00.53----1.111.15.00.7 M2.52.593.09.65.41.93.310.06.11.8 4.01.010.87.25.00.32.512.87.21.7 6.00.45-------- Self-contained - Atlantic NM2.51.661.67.44.31.32.59.15.31.4 4.00.65----0.79.65.80.4 6.00.29-------- M2.51.401.26.63.91.02.38.85.01.4 4.00.55----0.98.05.00.6 6.00.25-------- Slave AC/DC2.53.053.510.45.92.03.610.76.72.0 4.01.191.39.95.61.13.113.57.72.0 6.00.53----1.112.07.90.7 AC/AC2.54.404.311.46.62.44.010.67.01.7 4.01.702.712.06.62.04.213.78.51.7 6.00.8006.25.4-2.215.39.51.4 See page 441 for Design Guide Rapid fit plug-in gear tray Emergency Luminaires - Exterior/Interior ATLANTIC& ATLANTICPLUS
|
