		SYSTEM DESIGN& INSTALLATION

							• Short circuit isolators are incorporated into the panel as standard. Further isolators can be added to the circuit, if required, to minimise loss of communication due to a short circuit and make fault finding easier. Note: Loss of communication does NOT affect the integrity of the emergency luminaire operation • The panel is set to auto learn the devices connected to it. The panel can then be commissioned by Cooper Professional lighting and Security, using a PC to download address, group, type of luminaire, number of cells, duration, descriptive address text and test times • The panel can be used to adjust test times, initiate manual tests, display luminaire voltage and current and print out event logs or test results
			• Determine the number and type of EasiCheck™ compatible emergency luminaires to be used, using the spacing charts at the rear of this catalogue • Specify the luminaires to be complete with EasiCheck™ addressable interface modules • Locate the control panel in a suitable clean, dry environment, such as a maintenance office • Address all luminaires and interface devices as applicable using the hand held programmer • Connect data BUS cable. Cable must be 2 core screened or twisted pair, typically 1.0 - 2.5mm² depending on volt drop limitations. Contact Technical Support for full details of the required cable specification. Polarity must be maintained throughout. • Circuit configuration for data cable can be a ring, radial or a preferred combination of a ring with multiple radial spurs

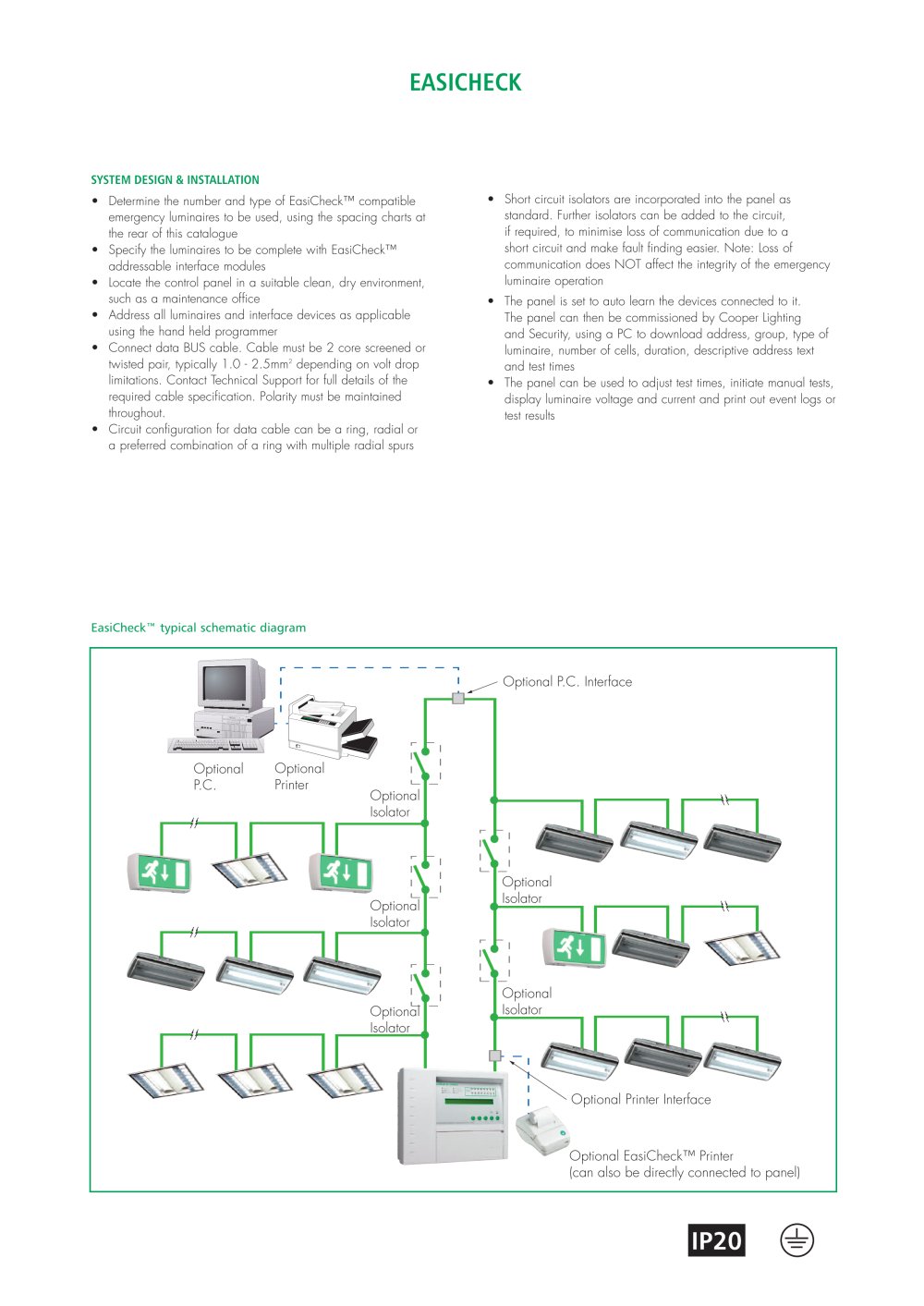

			EasiCheck™ typical schematic diagram

								IP20
