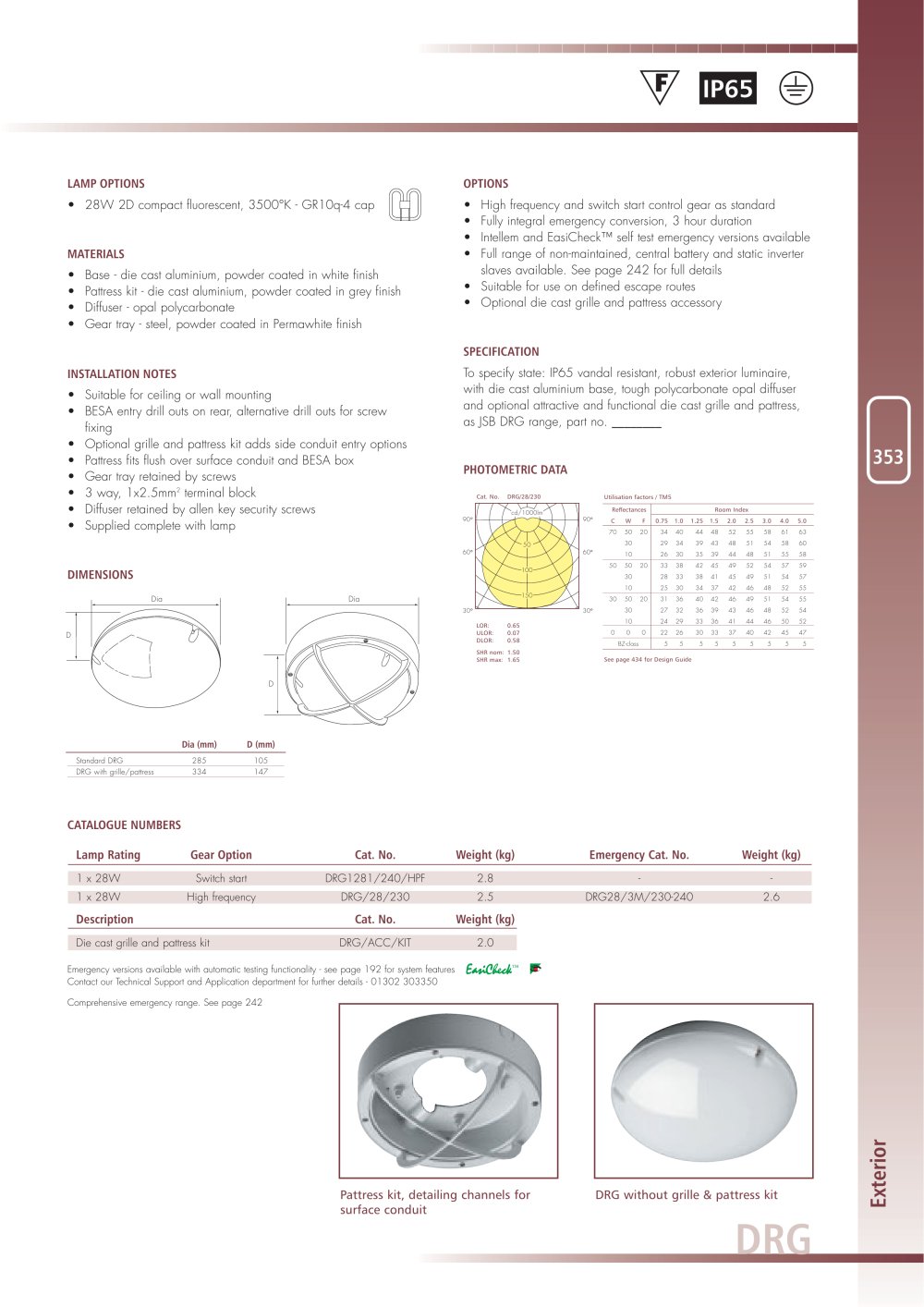

IP65

LAMP OPTIONS

• 28W 2D compact fluorescent, 3500°K - GR10q-4 industrial cap MATERIALS

• Base - die cast aluminium, powder coated in white finish

• Pattress kit - die cast aluminium, powder coated in grey finish

• Diffuser - opal polycarbonate

• Gear tray - steel, powder coated in Permawhite finish

INSTALLATION NOTES

• Suitable for ceiling or wall mounting

• BESA entry professional drill outs on rear, alternative drill outs for screw fixing

• Optional grille and pattress kit adds side conduit entry options

• Pattress fits flush over surface conduit and BESA box

• Gear tray retained by screws

• 3 way, 1x2.5mm² terminal block manufacturers

• Diffuser retained by allen key security screws

• Supplied complete with lamp

DIMENSIONS

OPTIONS

• High frequency and switch start control gear as standard

• Fully integral emergency conversion, 3 hour duration

• Intellem and EasiCheck™ self test emergency versions available

• Full range of non-maintained, central professional battery and static industrial inverter slaves available. See page 242 for full details

• Suitable for use on defined escape routes

• Optional die cast grille and pattress accessory

SPECIFICATION

To specify state: IP65 vandal resistant, robust exterior luminaire, with die cast aluminium base, tough polycarbonate opal diffuser and optional attractive and functional die cast grille and pattress, as JSB DRG range, part no._

353

PHOTOMETRIC DATA

Utilisation factors / TM5

Cat. No. DRG/28/230


Reflectances		Room Index
C W	F	0.75	1.0	1.25	1.5	2.0	2.5	3.0	4.0	5.0
70 50	20	34	40	44	48	52	55	58	61	63
30		29	34	39	43	48	51	54	58	60
10		26	30	35	39	44	48	51	55	58
50 50	20	33	38	42	45	49	52	54	57	59
30		28	33	38	41	45	49	51	54	57
10		25	30	34	37	42	46	48	52	55
30 50	20	31	36	40	42	46	49	51	54	55
30		27	32	36	39	43	46	48	52	54
10		24	29	33	36	41	44	46	50	52
00	0	22	26	30	33	37	40	42	45	47
BZ-chss		5	5	5	5 5 5 5 5 5

90°

60°

30°

LOR: 0.65 ULOR 0.07

DLOR: 0.58

SHR nom: 1.50 SHR max: 1.65

See page 434 for Design Guide


	Dia (mm)	D (mm)
Standard DRG	285	105
DRG with grille/pattress	334	147

CATALOGUE NUMBERS


Lamp Rating	Gear Option	Cat. No.	Weight (kg)	Emergency Cat. No.	Weight (kg)

1 x 28W	Switch stort	DRG1281/240/HPF	2.8
1 x 28W	High frequency	DRG/28/230	2.5	DRG28/3M/230-240	2.6
Description		Cat. No.	Weight (kg)
Die cast grille and pattress kit		DRG/ACC/KIT	2.0

Emergency versions available with automatic testing functionality - see page 192 for system features Ej4*jQfoc&,™

Contact our Technical Support and Application department for further details - 01302 303350

Comprehensive emergency range. See page 242

Pattress kit, detailing channels for surface conduit

DRG without grille & pattress kit
