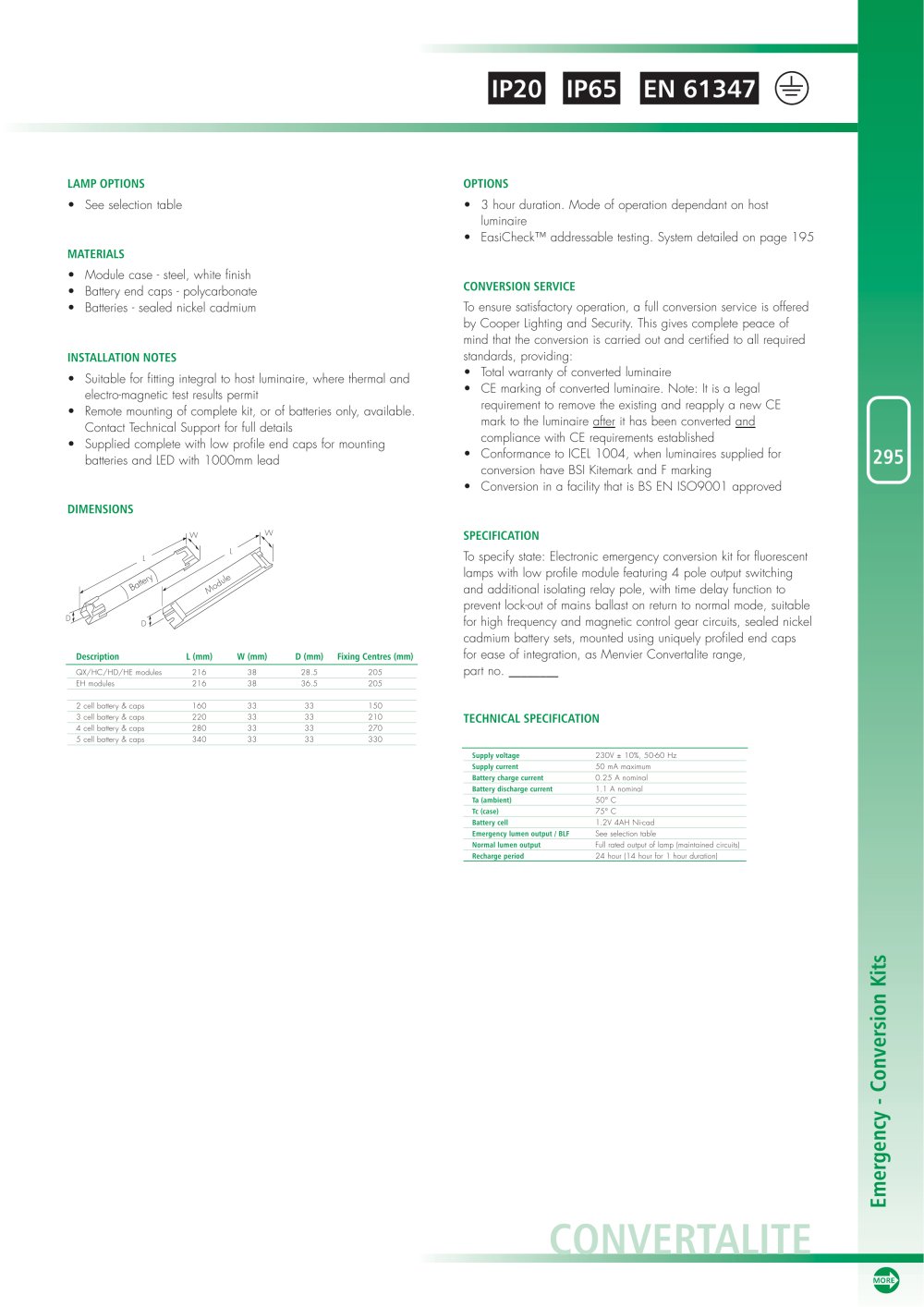

LAMPOPTIONS OPTIONS •See selection table •3 hour duration. Mode of operation dependant on host luminaire•EasiCheck™ addressable testing. System detailed on page 195 MATERIALS •Module case - steel, white finish•Battery end caps - polycarbonate•Industrial batteries - sealed nickel cadmium CONVERSIONSERVICE To ensure satisfactory operation, a full conversion service is offeredby Cooper Lighting and Security. This gives complete peace ofmind that the conversion is carried out and certified to all requiredstandards, providing:•Total warranty of converted luminaire•CE marking of converted luminaire. Note: It is a legal requirement to remove the existing and reapply a new CE mark to the luminaire after INSTALLATIONNOTES •Suitable for professional fitting integral to host luminaire, where thermal and electro-magnetic test results permit•Remote mounting of complete kit, or of batteries only, available.Contact Technical Support for full details•Supplied complete with low profile end caps for mounting batteries and LED with 1000mm lead it has been converted and compliance with CE requirements established•Conformance to ICEL 1004, when luminaires supplied for conversion have BSI Kitemark and F marking•Conversion in a facility that is BS EN ISO9001 approved

295

DIMENSIONS SPECIFICATION

LW L

To specify state: Electronic emergency conversion kit for fluorescentlamps with low profile module featuring 4 pole output switchingand additional isolating relay pole, with time delay function toprevent lock-out of mains ballast on return to normal mode, suitablefor high frequency and magnetic control gear circuits, sealed nickelcadmium battery sets, mounted using uniquely profiled end caps for ease of integration, as Menvier Convertalite range,part no. ________

Battery Module DD W

DescriptionL (mm)W (mm)D (mm)Fixing Centres (mm)

QX/HC/HD/HE modules2163828.5205 EH modules2163836.5205

TECHNICAL SPECIFICATION

2 cell battery & caps1603333150 3 cell battery & caps2203333210 4 cell battery & caps2803333270 5 cell battery & caps3403333330 Supply voltage 230V ±10%, 50-60 Hz Supply current 50 mA maximum Battery charge current 0.25 A nominal Battery discharge current 1.1 A nominal Ta (ambient) 50°C Tc (case) 75°C Industrial battery cell 1.2V 4AH Ni-cad Emergency lumen output / BLF See selection table Normal lumen output Full rated output of lamp (maintained circuits) Recharge period 24 hour (14 hour for 1 hour duration)
Emergency - Conversion Kits

CONVERTALITE
