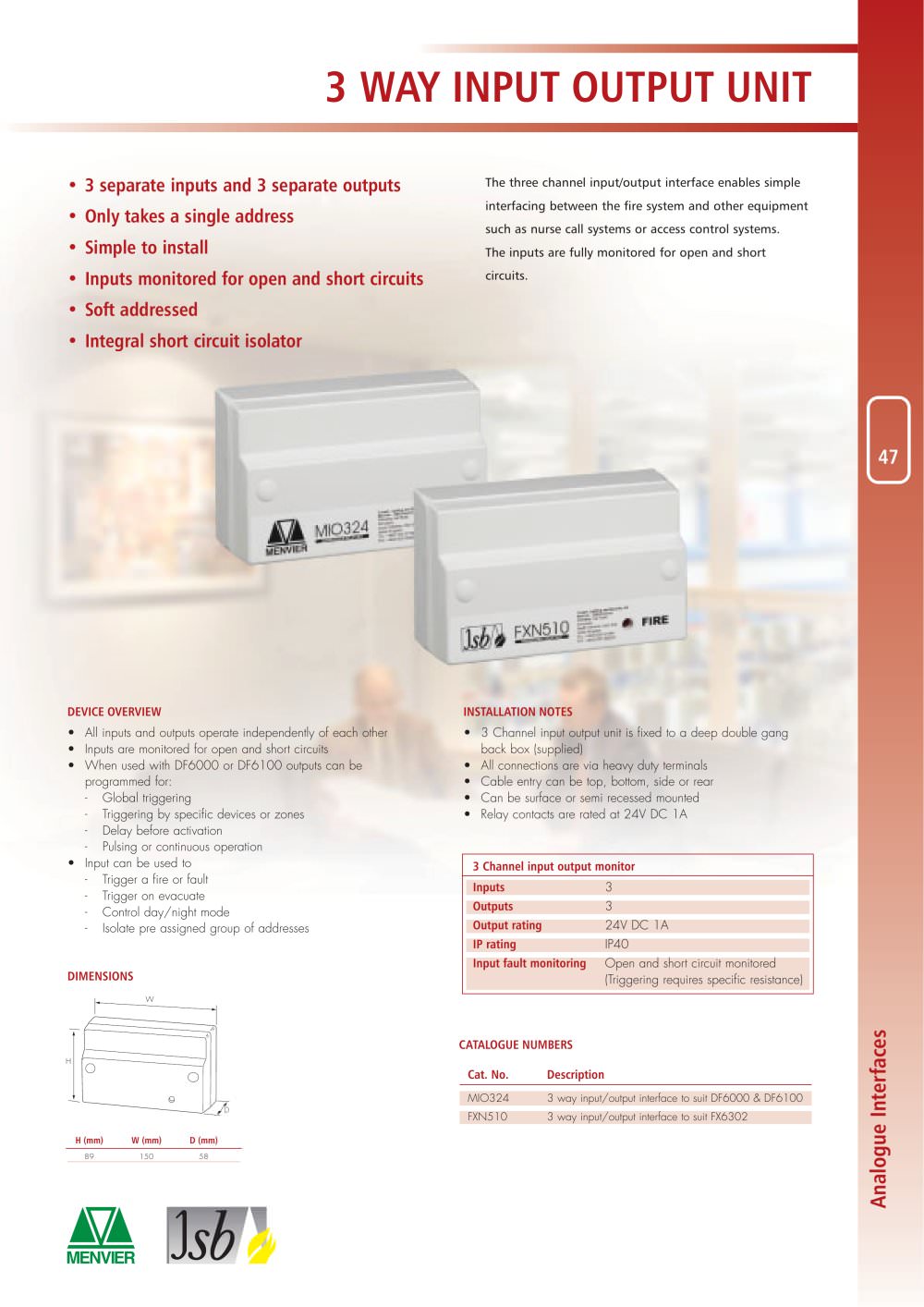

3 WAY INPUTOUTPUTUNIT

•3 separate inputs and 3 separate outputs•Only takes a single address •Simple to install •Inputs monitored for open and short circuits •Soft addressed •Integral short circuit isolator

The three channel input/output interface enables simpleinterfacing between the fire system and other equipment such as nurse call systems or access control systems. The inputs are fully monitored for open and short circuits.

47

•3 Channel input output unit is fixed to a deep double gang back box (supplied)•All connections are via heavy duty terminals•Cable entry can be top, bottom, side or rear•Can be surface or semi recessed mounted•Relay contacts are rated at 24V DC 1A DEVICEOVERVIEW •All inputs and outputs operate independently of each other•Inputs are monitored for open and short circuits •When used with DF6000 or DF6100 outputs can be programmed for:-Global triggering -Triggering by specific devices or zones-Delay before activation-Pulsing or continuous operation•Input can be used to-Trigger a fire or fault -Trigger on evacuate-Control day/night mode-Isolate pre assigned group of addresses 3 Channel input output monitor DIMENSIONS INSTALLATIONNOTES Inputs 3 Outputs 3 Output rating 24V DC 1A IP rating IP40 Input fault monitoring Open and short circuit monitored(Triggering requires specific resistance)
WHD CATALOGUENUMBERSCat. No.Description
MIO3243 way input/output interface to suit DF6000 & DF6100FXN5103 way input/output interface to suit FX6302 H (mm)W (mm)D (mm) 8915058 Analogue Interfaces
