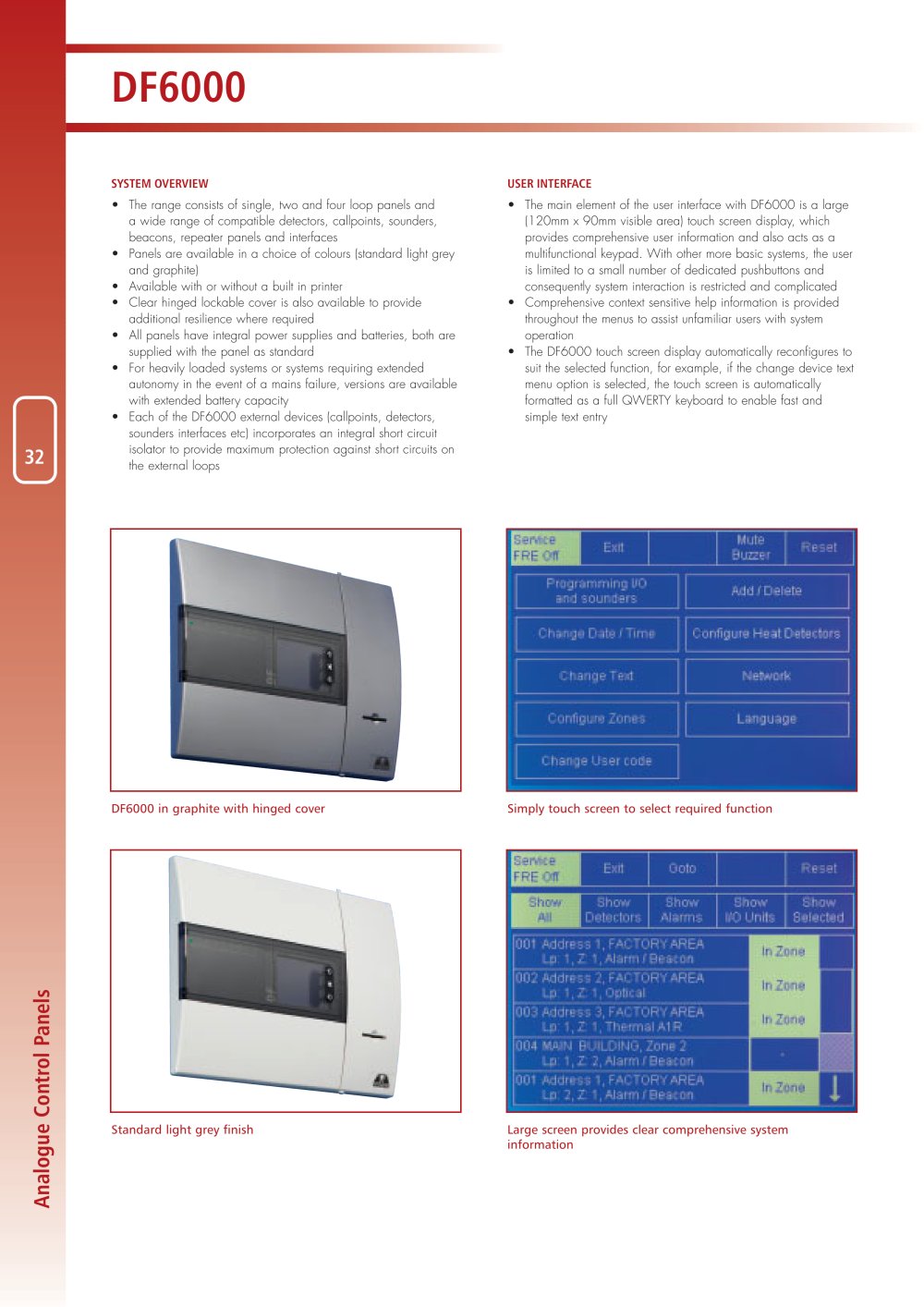

DF6000

SYSTEMOVERVIEW USERINTERFACE •The range consists of single, two and four loop panels anda wide range of compatible detectors, callpoints, sounders, industrial beacons, repeater panels and interfaces•Panels are available in a choice of colours (standard light grey and graphite) •Available with or without a built in printer•Clear hinged lockable cover is also available to provide additional resilience where required•All panels have integral power supplies and batteries, both are supplied with the panel as standard•For heavily loaded systems or systems requiring extended autonomy in the event of a mains failure, versions are availablewith extended battery capacity•Each of the DF6000 external devices (callpoints, detectors, sounders interfaces etc) incorporates an integral short circuit isolator to provide maximum protection against short circuits on the external loops •The main element of the user interface with DF6000 is a large (120mm x 90mm visible area) touch screen display, which provides comprehensive user information and also acts as a multifunctional keypad. With other more basic systems, the useris limited to a small number of dedicated pushbuttons and consequently system interaction is restricted and complicated•Comprehensive context sensitive help information is provided throughout the menus to assist unfamiliar users with system operation•The DF6000 touch screen display automatically reconfigures to suit the selected function, for example, if the change device textmenu option is selected, the touch screen is automatically formatted as a full QWERTY keyboard to enable fast and simple text entry

32

DF6000 in graphite with hinged coverSimply touch screen to select required function Standard light grey finishLarge screen provides clear comprehensive systeminformation
Analogue Control Panels
