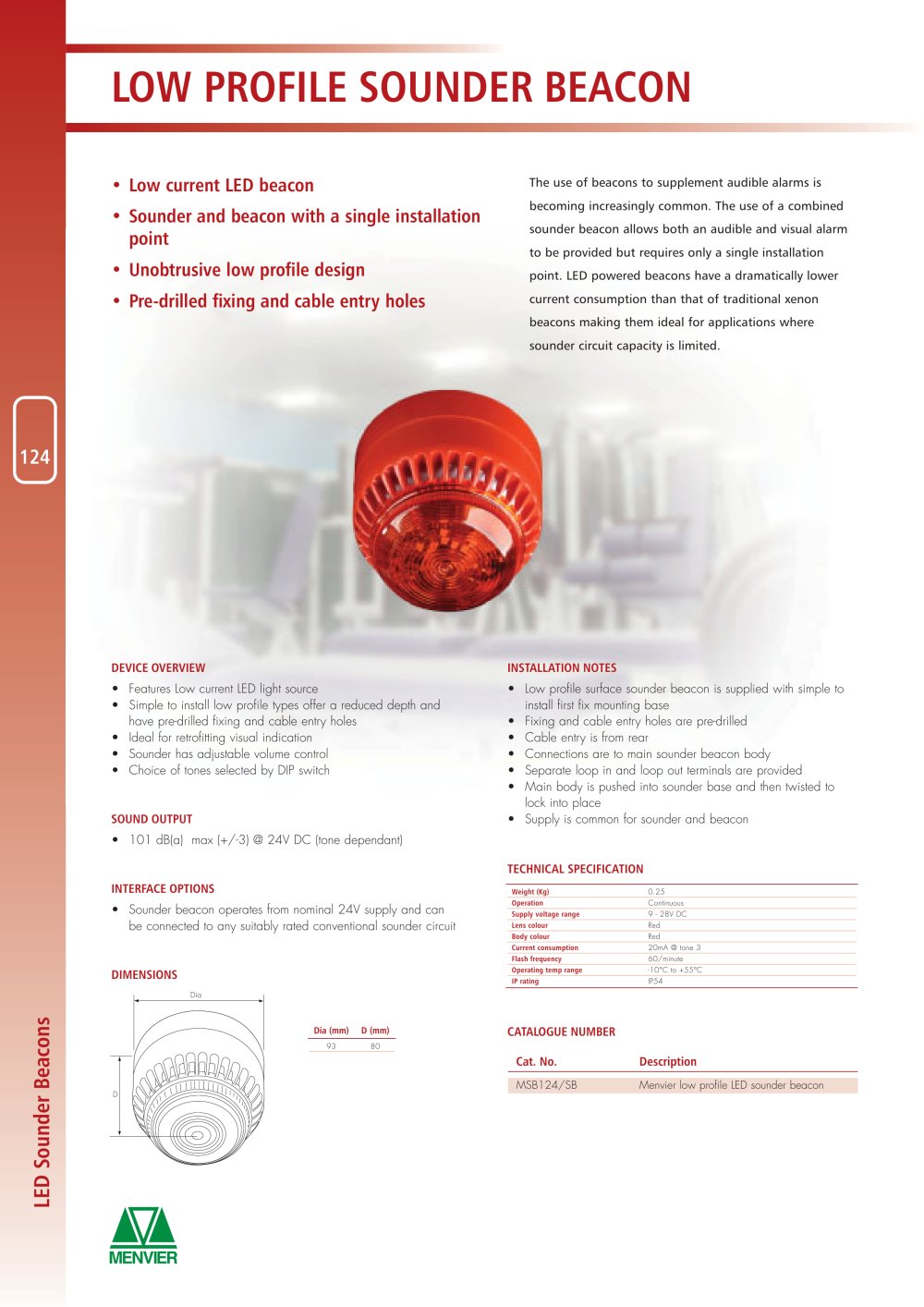

LOWPROFILESOUNDERBEACON

•Low current Led beacon•Sounder and beacon with a single installation point•Unobtrusive low profile design •Pre-drilled fixing and cable entry holes

The use of industrial beacons to supplement audible alarms isbecoming increasingly common. The use of a combined sounder beacon allows both an audible and visual alarm to be provided but requires only a single installation point. LED powered beacons have a dramatically lower current consumption than that of traditional xenon beacons making them ideal for applications where sounder circuit capacity is limited.

124

DEVICEOVERVIEW •Features Low current LED light source•Simple to install low profile types offer a reduced depth and have pre-drilled fixing and cable entry holes•Ideal for retrofitting visual indication•Sounder has adjustable volume control •Choice of tones selected by DIP switch INSTALLATIONNOTES •Low profile surface sounder beacon is supplied with simple to install first fix mounting base•Fixing and cable entry holes are pre-drilled•Cable entry is from rear •Connections are to main sounder beacon body•Separate loop in and loop out terminals are provided •Main body is pushed into sounder base and then twisted to lock into place•Supply is common for sounder and beacon SOUNDOUTPUT •101 dB(a) max (+/-3) @ 24V DC (tone dependant) INTERFACEOPTIONS •Sounder beacon operates from nominal 24V supply and can be connected to any suitably rated conventional sounder circuit TECHNICAL SPECIFICATION

Weight (Kg) 0.25 Operation Continuous Supply voltage range 9 - 28V DC Lens colour Red

DIMENSIONS

Body colour Red Current consumption 20mA @ tone 3 Flash frequency 60/minute Operating temp range -10°C to +55°C IP rating IP54 Dia

Dia (mm)D (mm)

CATALOGUENUMBERCat. No.Description

9380

MSB124/SBMenvier low profile LED sounder beacon

D
LEDSounder Beacons
