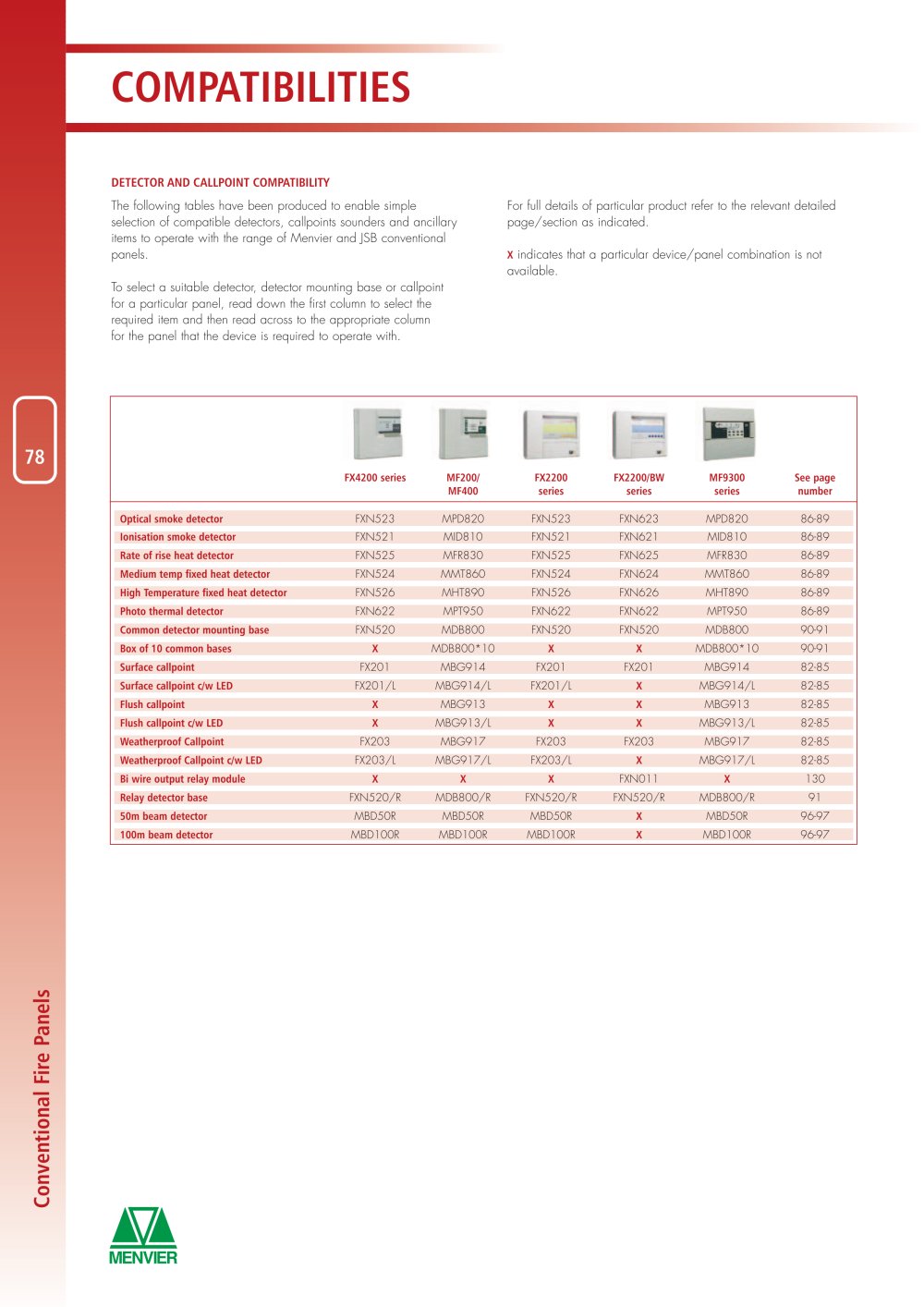

COMPAT IDIL

DETECTOR AND CALLPOINT COMPATIBILITY

The following tables have been produced to enable simple selection of compatible detectors, callpoints sounders and ancillary items to operate with the range of Menvier and JSB conventional panels.

To select a suitable detector, detector mounting base or callpoint for a particular panel, read down the first column to select the required item and then read across to the appropriate column for the panel that the device is required to operate with.

For full details of particular product refer to the relevant detailed page/section as indicated.

X indicates that a particular device/panel combination is not available.


	: —	7-	_		L .
			p
	FX4200 series	MF200/	FX2200	FX2200/BW	MF9300	See page
		MF400	series	series	series	number

_ . . .. -.. ..--- . ___ -.. ..--- -....._ _ . ___ „.„
Optical smoke detector	FXN52 3	MPD820	FXN523	FXN623	MPD820	86-89
Ionisation smoke detector	FXN521	MID810	FXN521	FXN621	MID810	86-89
Rate of rise heat detector	FXN525	MFR830	FXN525	FXN625	MFR830	86-89
Medium temp fixed heat detector	FXN524	MMT860	FXN524	FXN624	MMT860	86-89
High Temperature fixed heat detector	FXN526	MHT890	FXN526	FXN626	MHT890	86-89
Photo thermal detector	FXN622	MPT950	FXN622	FXN622	MPT950	86-89
Common detector mounting base	FXN520	MDB800	FXN520	FXN520	MDB800	90-91
Box of 10 common bases	X	MDB800*10	X	X	MDB800*10	90-91
Surface callpoint	FX201	MBG914	FX201	FX201	MBG914	82-85
Surface callpoint c/w LED	FX201/L	MBG914/L	FX201/L	X	MBG914/L	82-85
Flush callpoint	X	MBG913	X	X	MBG913	82-85
Flush callpoint c/w LED	X	MBG913/L	X	X	MBG913/L	82-85
Weatherproof Callpoint	FX203	MBG917	FX203	FX203	MBG917	82-85
Weatherproof Callpoint c/w LED	FX203/L	MBG917/L	FX203/L	X	MBG917/L	82-85
Bi wire output relay module	X	X	X	FXN011	X	130
Relay detector base	FXN520/R	MDB800/R	FXN520/R	FXN520/R	MDB800/R	91
50m beam detector	MBD50R	MBD50R	MBD50R	X	MBD50R	96-97
100m beam detector	MBD100R	MBD100R	MBD100R	X	MBD100R	96-97

MENVIER
