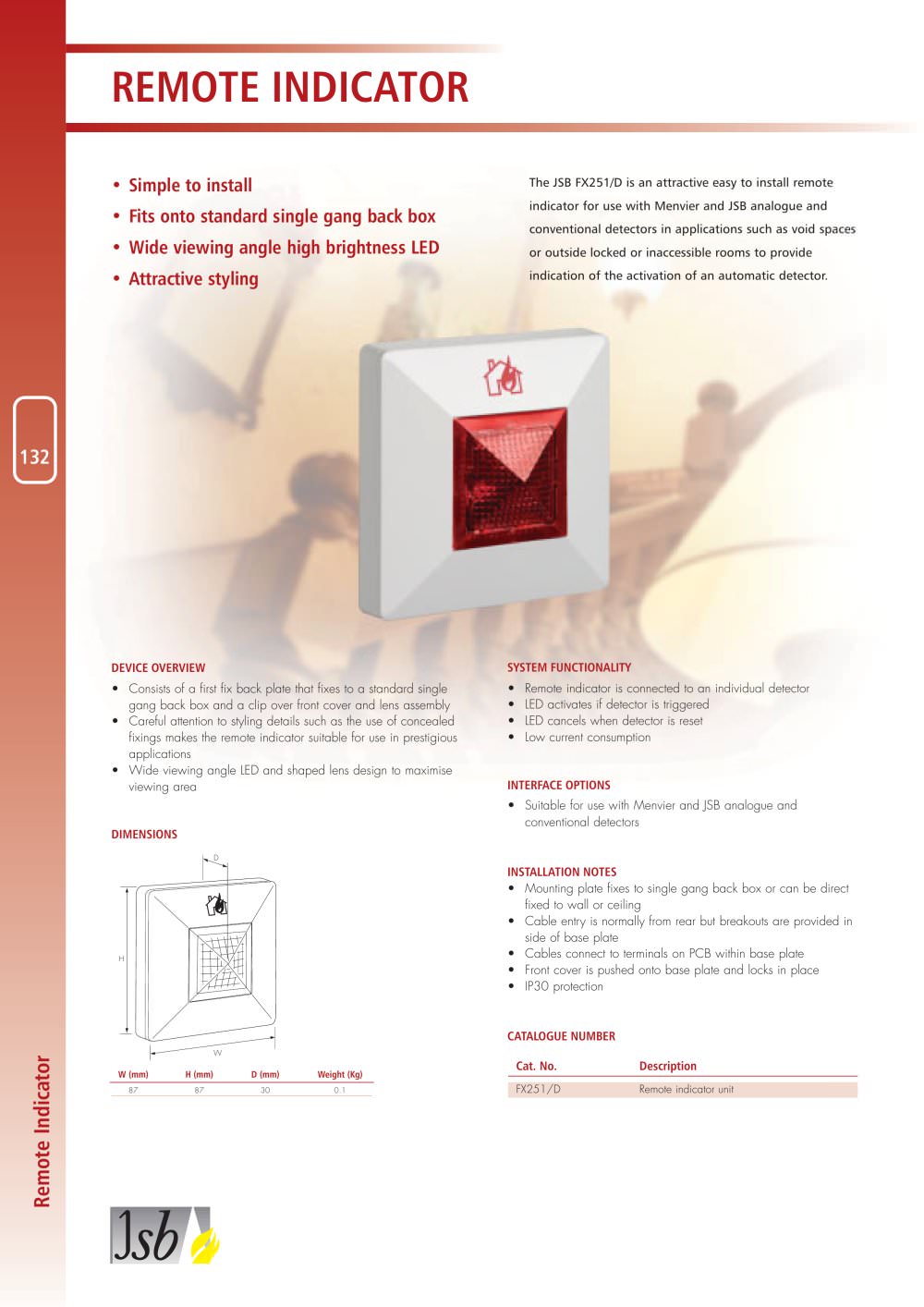

REMOTEINDICATOR

•Simple to install•Fits onto standard single gang back box •Wide viewing angle high brightness LED •Attractive styling

The JSB FX251/D is an attractive easy to install remoteindicator for use with Menvier and JSB analogue and conventional detectors in applications such as void spaces or outside locked or inaccessible rooms to provide indication of the activation of an automatic detector.

132

DEVICEOVERVIEW •Consists of a first fix back plate that fixes to a standard single gang back box and a clip over front cover and lens assembly•Careful attention to styling details such as the use of concealed fixings makes the remote indicator suitable for use in prestigious applications•Wide viewing angle LED and shaped lens design to maximise viewing area SYSTEMFUNCTIONALITY •Remote indicator is connected to an individual detector•LED activates if detector is triggered•LED cancels when detector is reset•Low current consumption DIMENSIONS INTERFACEOPTIONS •Suitable for use with Menvier and JSB analogue and conventional detectors INSTALLATIONNOTES •Mounting plate fixes to single gang back box or can be direct fixed to wall or ceiling•Cable entry is normally from rear but breakouts are provided inside of base plate•Cables connect to terminals on PCB within base plate •Front cover is pushed onto base plate and locks in place•IP30 protection
H D CATALOGUENUMBERCat. No.Description
W W (mm)H (mm)D (mm)Weight (Kg) 8787300.1 FX251/DRemote indicator unit Remote Indicator
